Toyota Corolla 2

1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

9 part groups · 2 illustrations

Illustrations

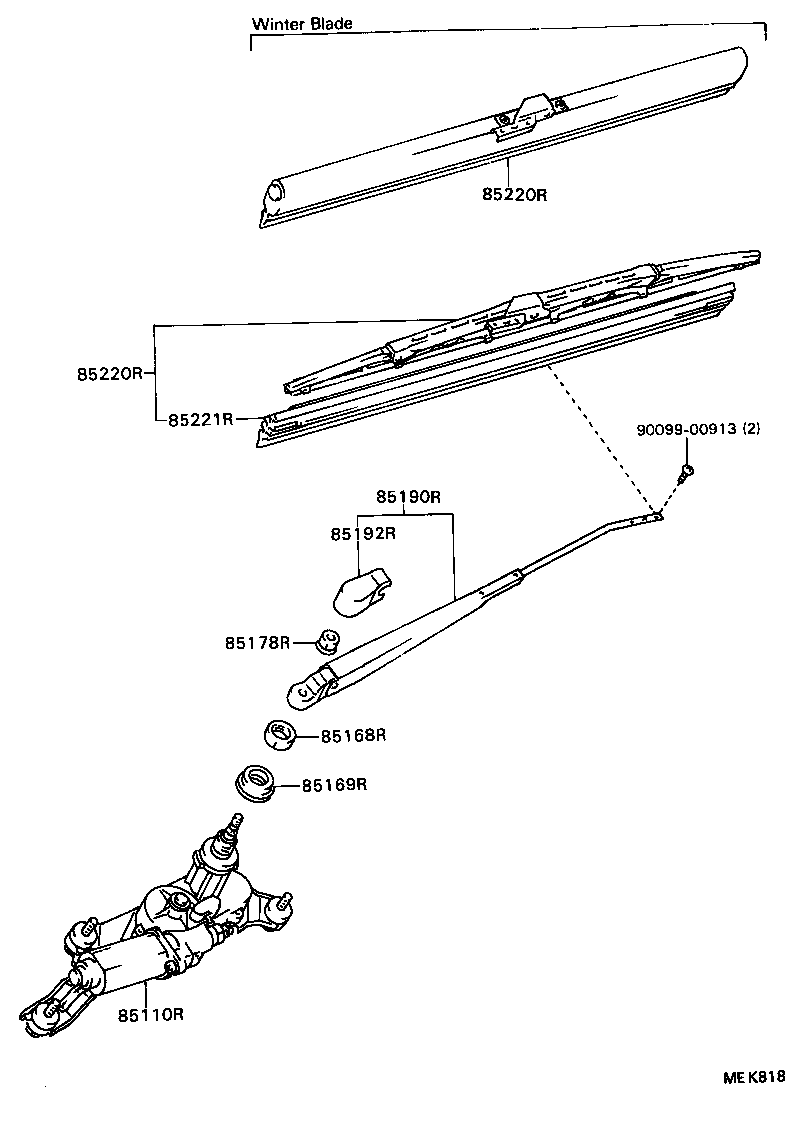

Figure MEK817 MEK817 1988-05 → — Figure MEK818 MEK818 1988-05 → —

Part groups

PNCDescription
85110R Motor Assy, Rear Wiper
85168R Nut, Rear Wiper Link Pivot, NO.1
85169R Washer, Rear Wiper Link Pivot, NO.1
85178R Nut (FOR REAR WIPER ARM SETTING)
85188R Cap, Rear Wiper Pivot, NO.1
85190R Arm Assy, Rear Wiper
85192R Cover, Rear Wiper Arm
85220R Blade Assy, Rear Wiper
85221R Blade, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
