Toyota Corolla 2
1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan
Discontinued model
Data version 1991-03
Radio Receiver & Amplifier & Condenser
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |

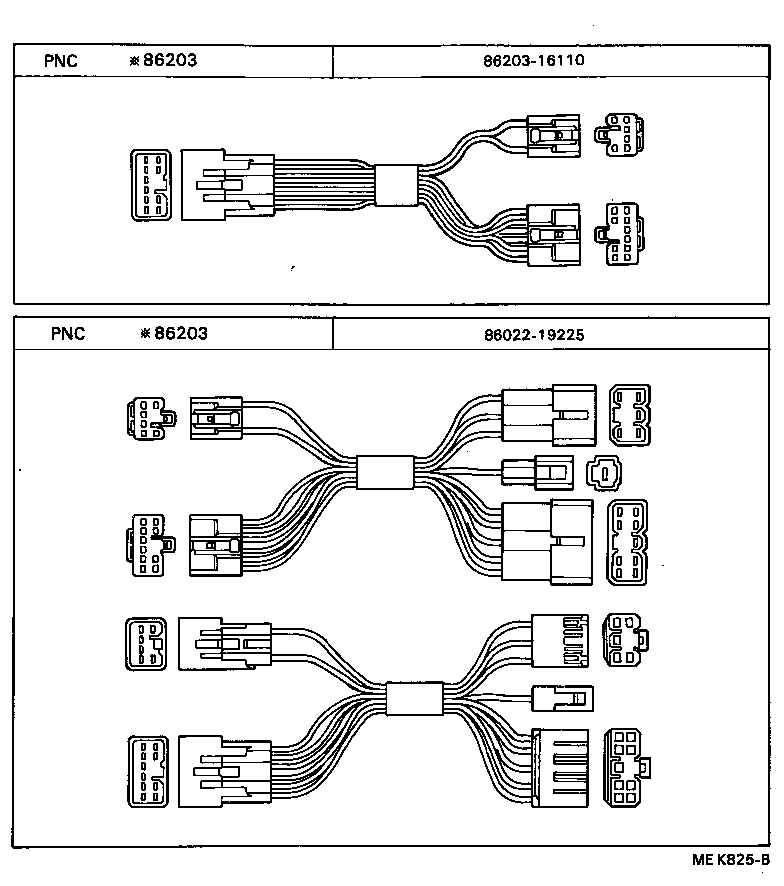

| 86203 | Wire, Radio |
| 86203R | Wire Sub-assy, RR |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86260 | Tape Player Assy |
| 86270A | Disc Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
