Toyota Corolla 2
1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan
Discontinued model
Data version 1991-03

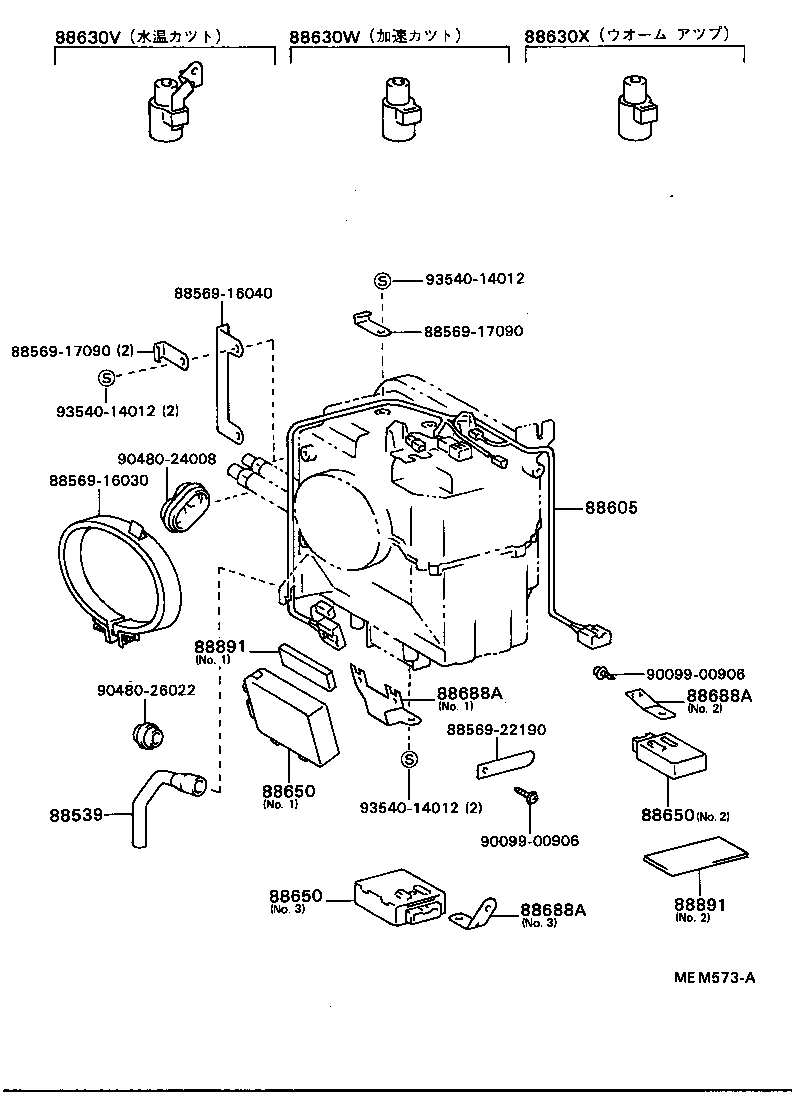

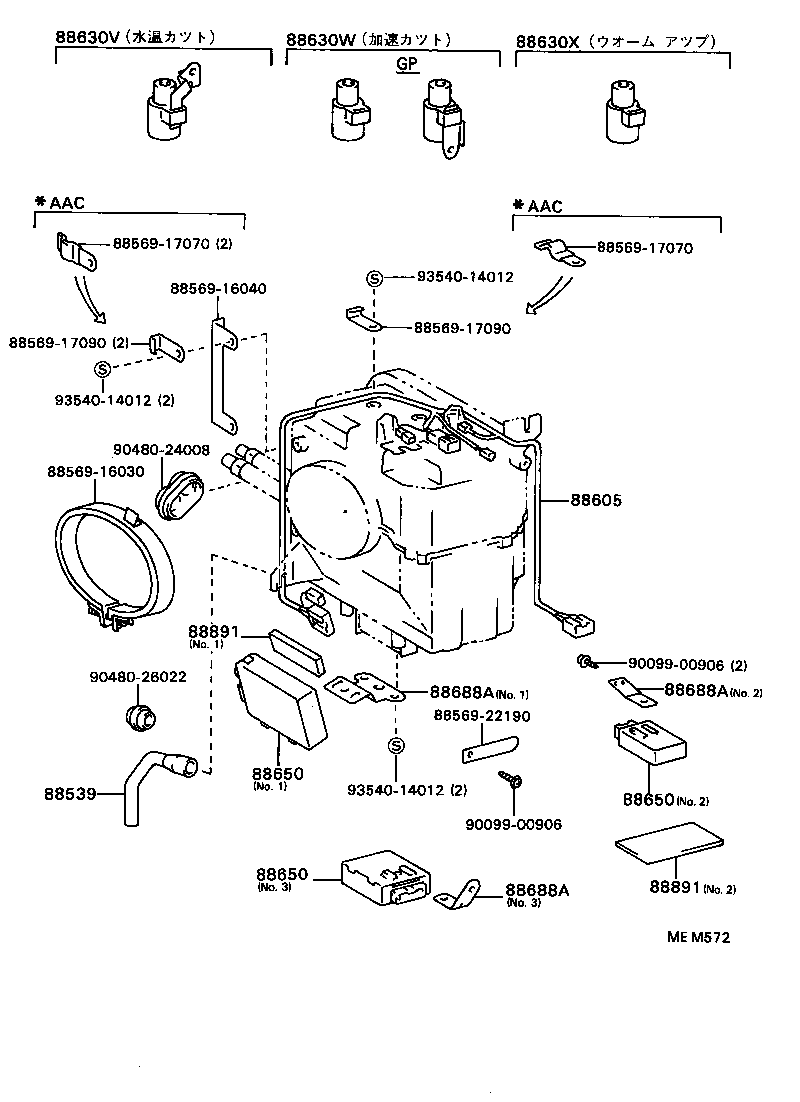

Heating & Air Conditioning - Cooler Unit
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

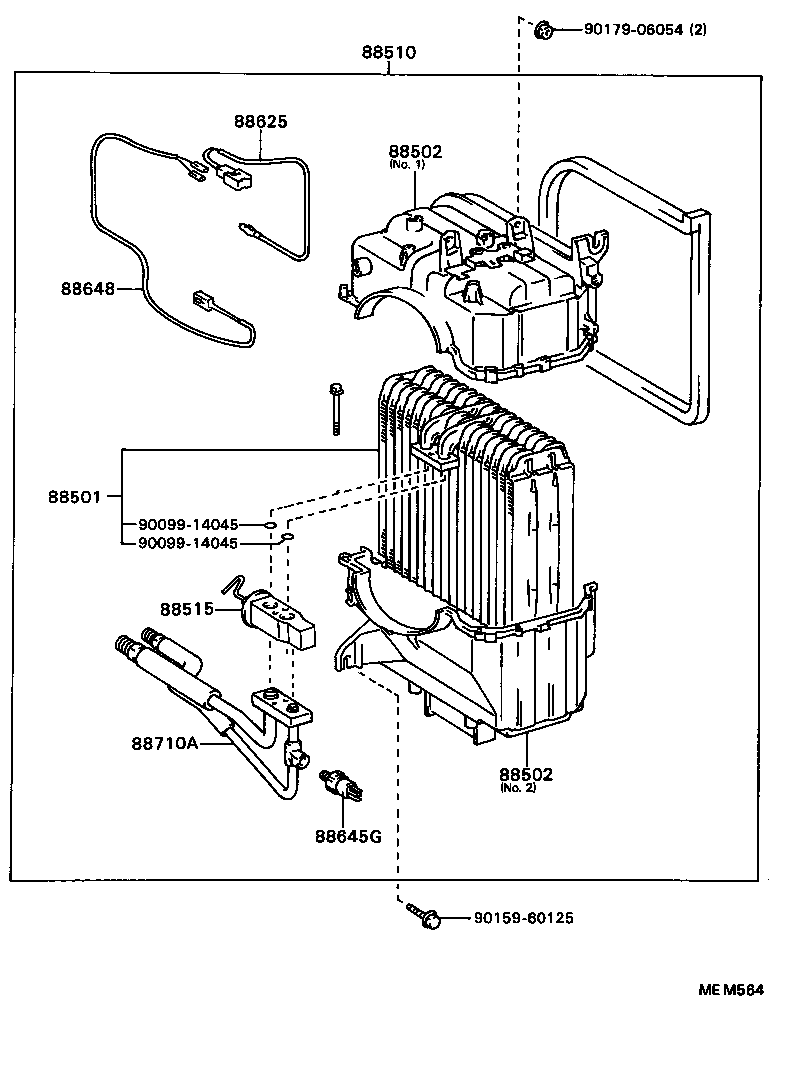

| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88502 | Case Sub-assy, Cooling Unit |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630V | Relay Assy |
| 88630W | Relay Assy |
| 88630X | Relay Assy |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88710A | Tube Assy, Air Conditioner |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88891 | Packing (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
