Toyota Corolla 2
1988-05 → 1990-09 · chassis EL3#,NL30 · catalogue 143130 · Japan
Discontinued model
Data version 1991-03

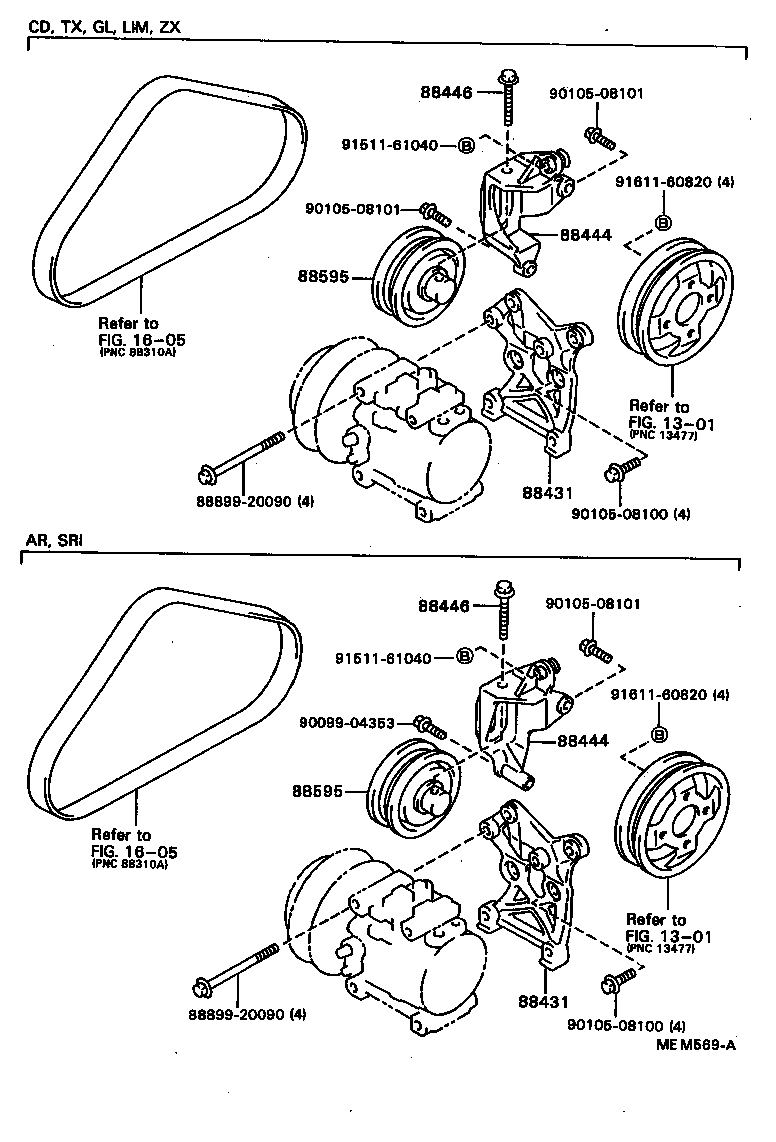

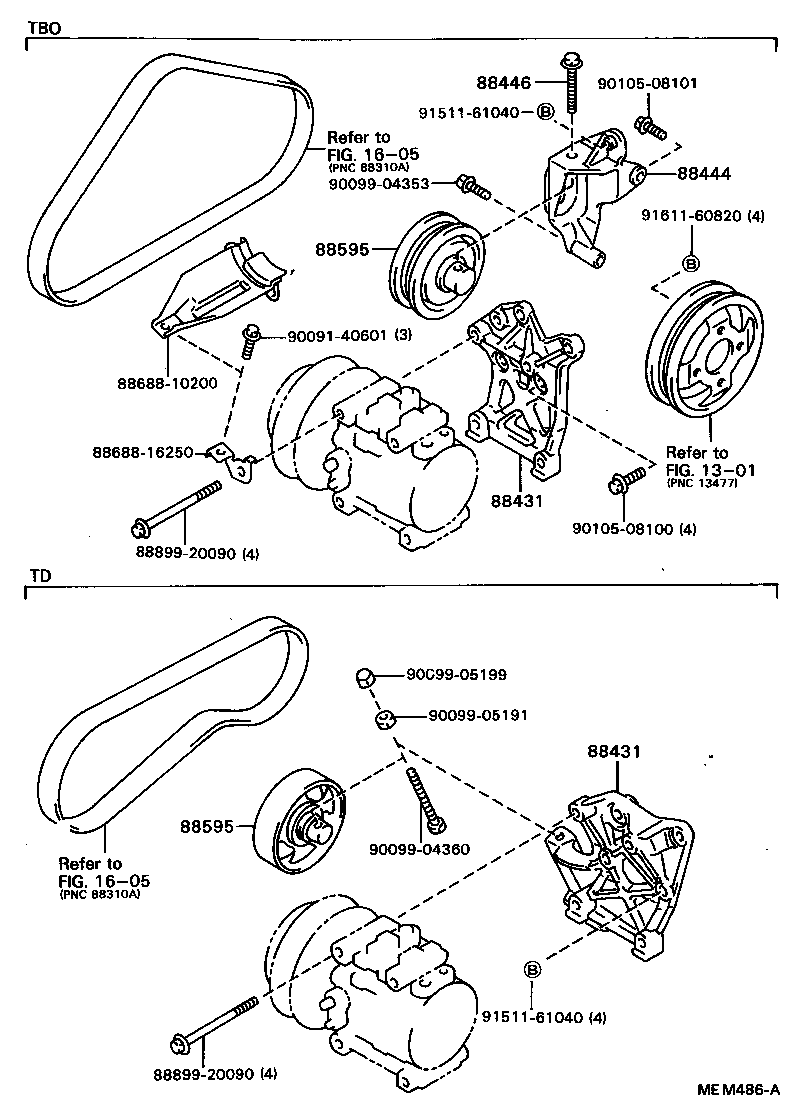

Heating & Air Conditioning - Compressor
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330 | Clutch Assy, Magnet |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
