Timing Gear Cover & Rear End Plate

13 part groups · 3 illustrations

Illustrations

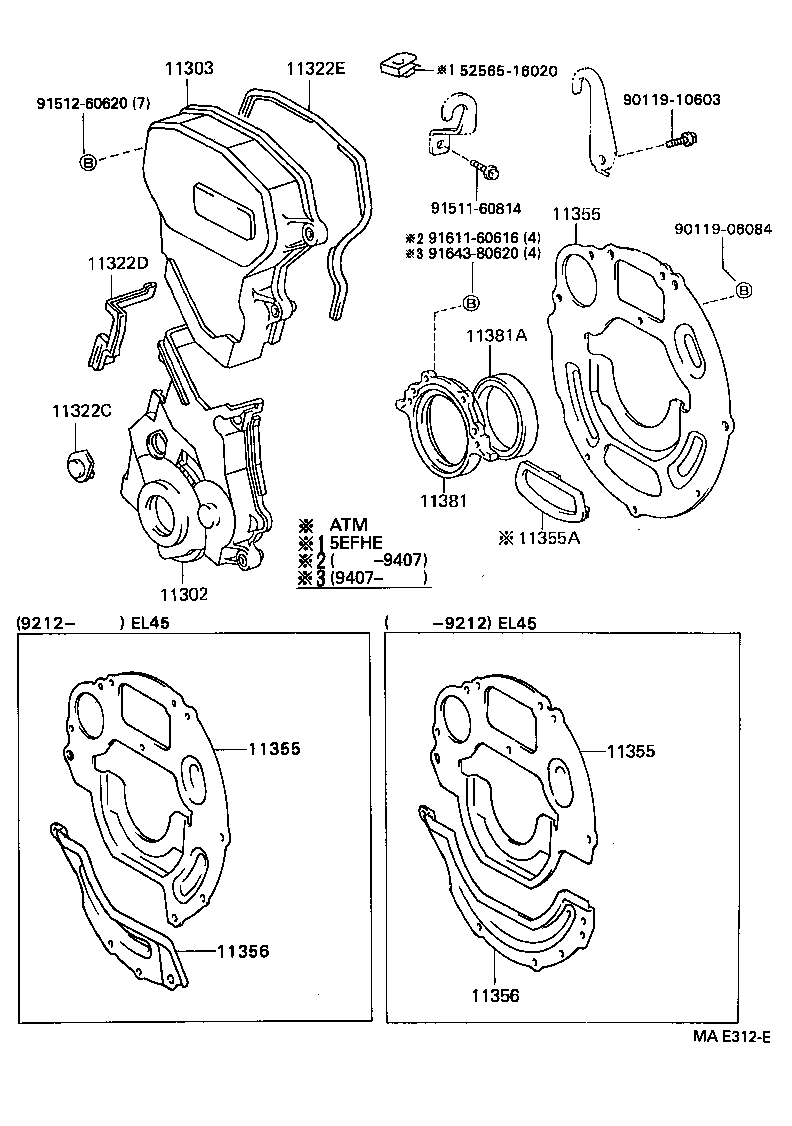

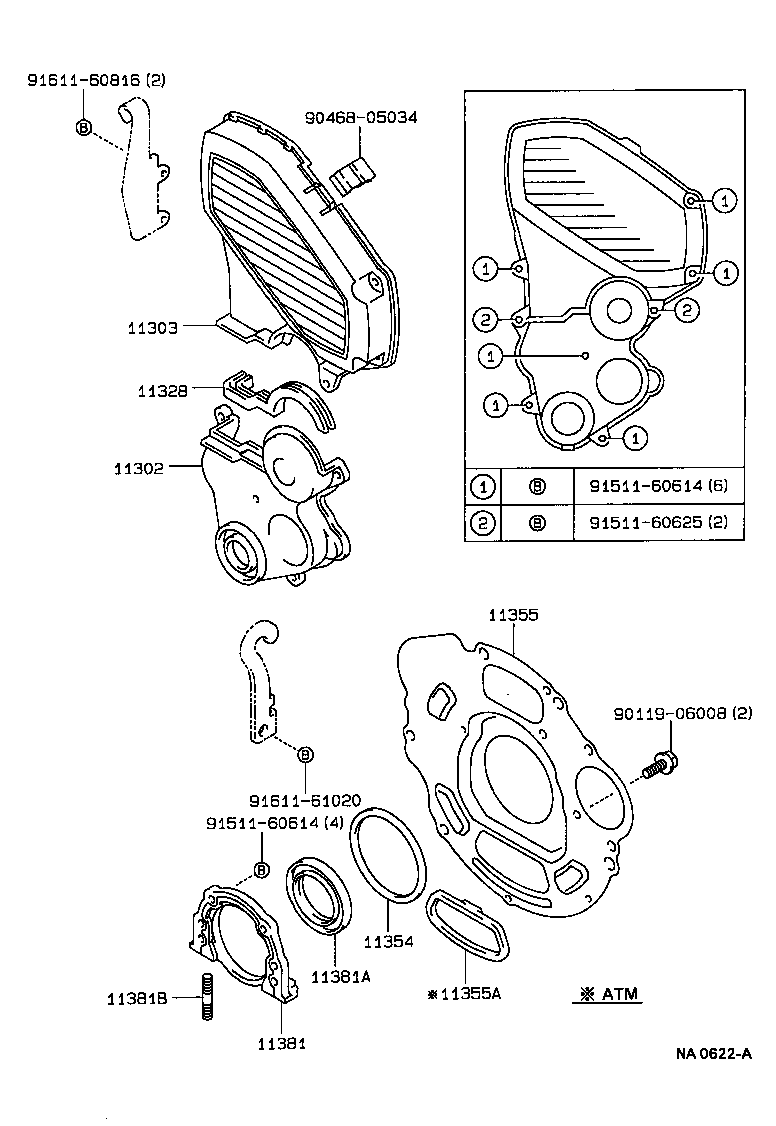

Figure MAE321C MAE321C 1990-09 → — Figure MAE312E MAE312E 1990-09 → — Figure NA0622A NA0622A 1990-09 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11322C Cover, Timing Belt, NO.3
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
