Toyota Corolla 2

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 2 illustrations

Illustrations

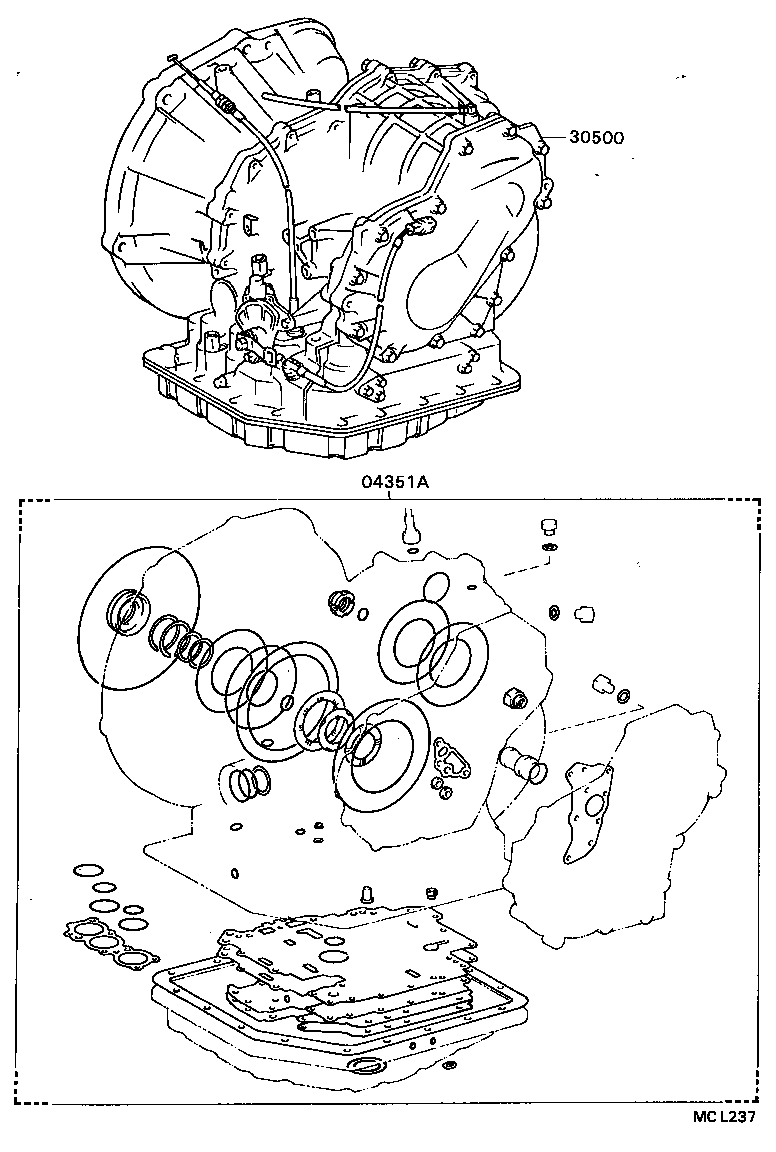

Figure MCL236 MCL236 1990-09 → — Figure MCL237 MCL237 1990-09 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
04412A Gasket Kit, Differential Carrier(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
