Toyota Corolla 2

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

8 part groups · 2 illustrations

Illustrations

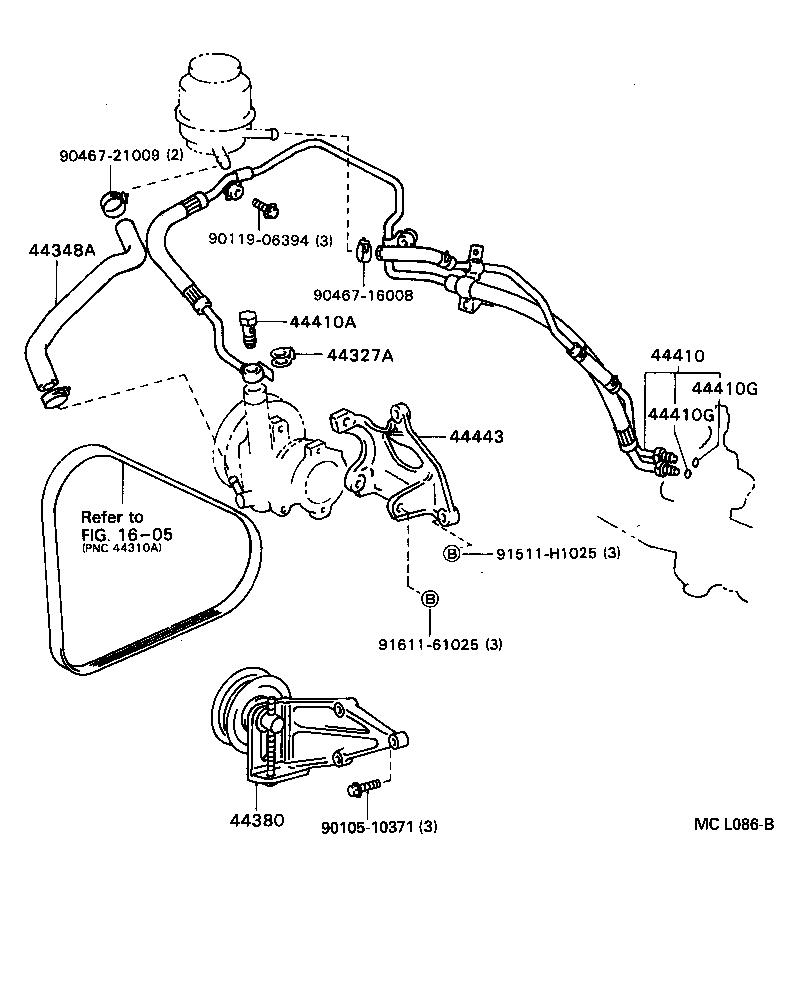

Figure MCL083B MCL083B 1990-09 → — Figure MCL086B MCL086B 1990-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44380 Pulley Assy, Power Steering Idle W/Bracket
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
