Toyota Corolla 2

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

31 part groups · 2 illustrations

Illustrations

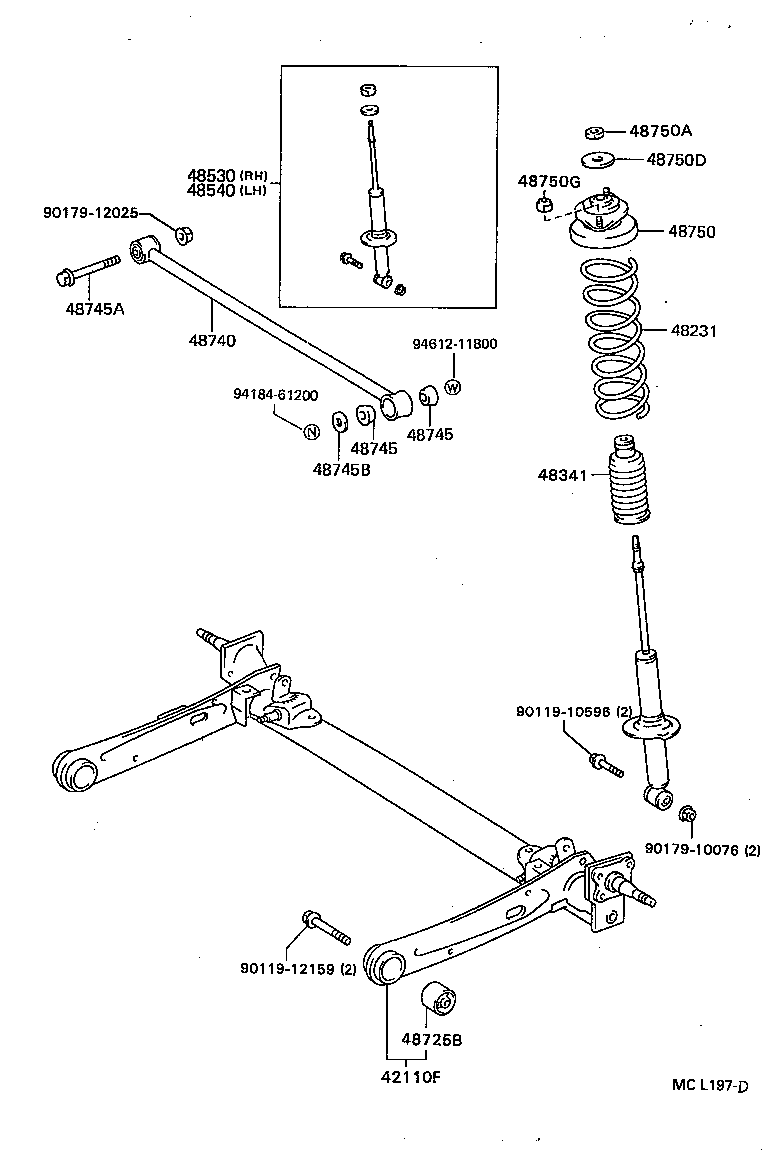

Figure MCL203C MCL203C 1990-09 → — Figure MCL197D MCL197D 1990-09 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48231 Spring, Coil, Rear
48341 Bumper, Rear Spring
48351 Bumper, Differential Carrier
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48703C Nut(FOR REAR SUSPENSION ARM)
48703E Bolt(FOR REAR SUSPENSION ARM)
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48725B Bush, Rear Suspension Arm, NO.1
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48750 Support Assy, Rear Suspension
48750A Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750D Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750G Nut(FOR REAR SUSPENSION SUPPORT)
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817U Bolt(FOR REAR STABILIZER)
48832B Bracket, Rear Stabilizer Bar, NO.2
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
