Toyota Corolla 2
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan
Discontinued model
Data version 1995-03

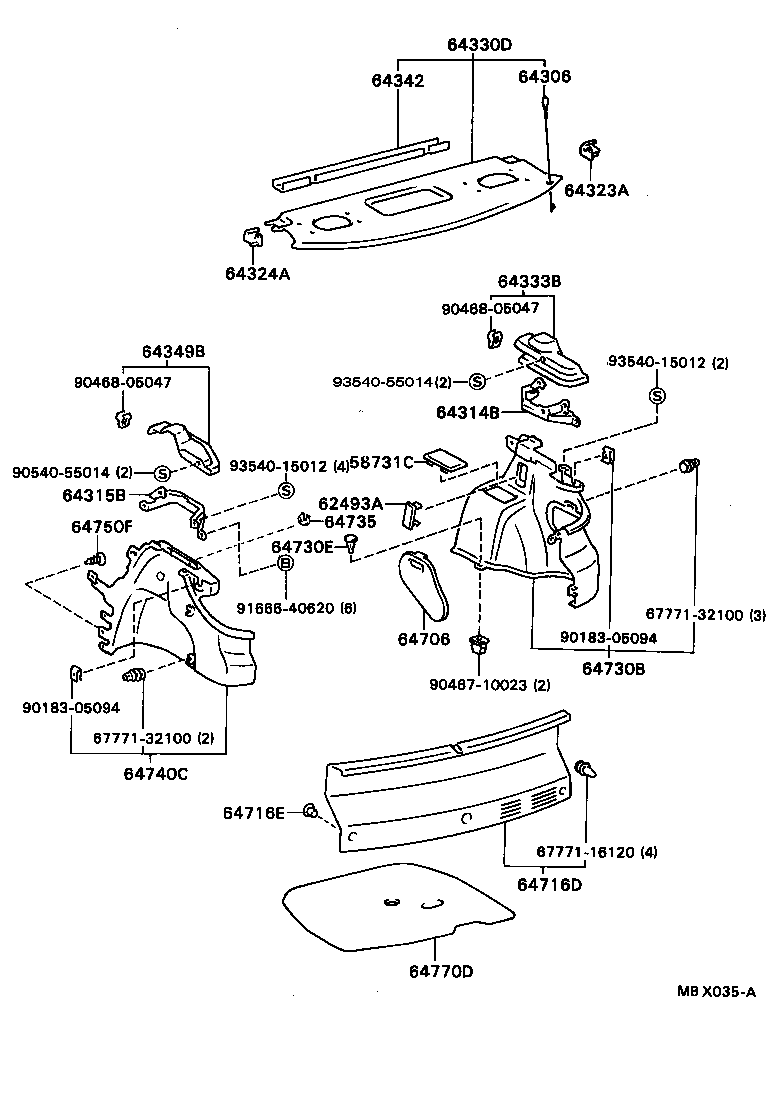

Deck Board & Deck Trim Cover
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58731C | Cap, Rear Absorber |
| 62493A | Cover, Rear Room Lamp Opening |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64314B | Reinforcement, Package Tray Bracket, RH |
| 64315B | Reinforcement, Package Tray Bracket, LH |
| 64323A | Clamp, Package Tray Trim, RH |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64333B | Cover, Package Tray Trim Side, RH |
| 64342 | Cover, Package Tray Trim, Under |
| 64349B | Cover, Package Tray Trim Side, LH |
| 64706 | Cover Sub-assy, Quarter Trim, Jack |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64770D | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
