Toyota Corolla 2
1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan
Discontinued model
Data version 1995-03
Switch & Relay & Computer
91 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 28621 | Resistor, Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82223E | Wire, Clutch Start Switch |
| 82285A | Wire, Illumination |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82671A | Block, Junction |
| 83320 | Gage Assy, Fuel Sender |

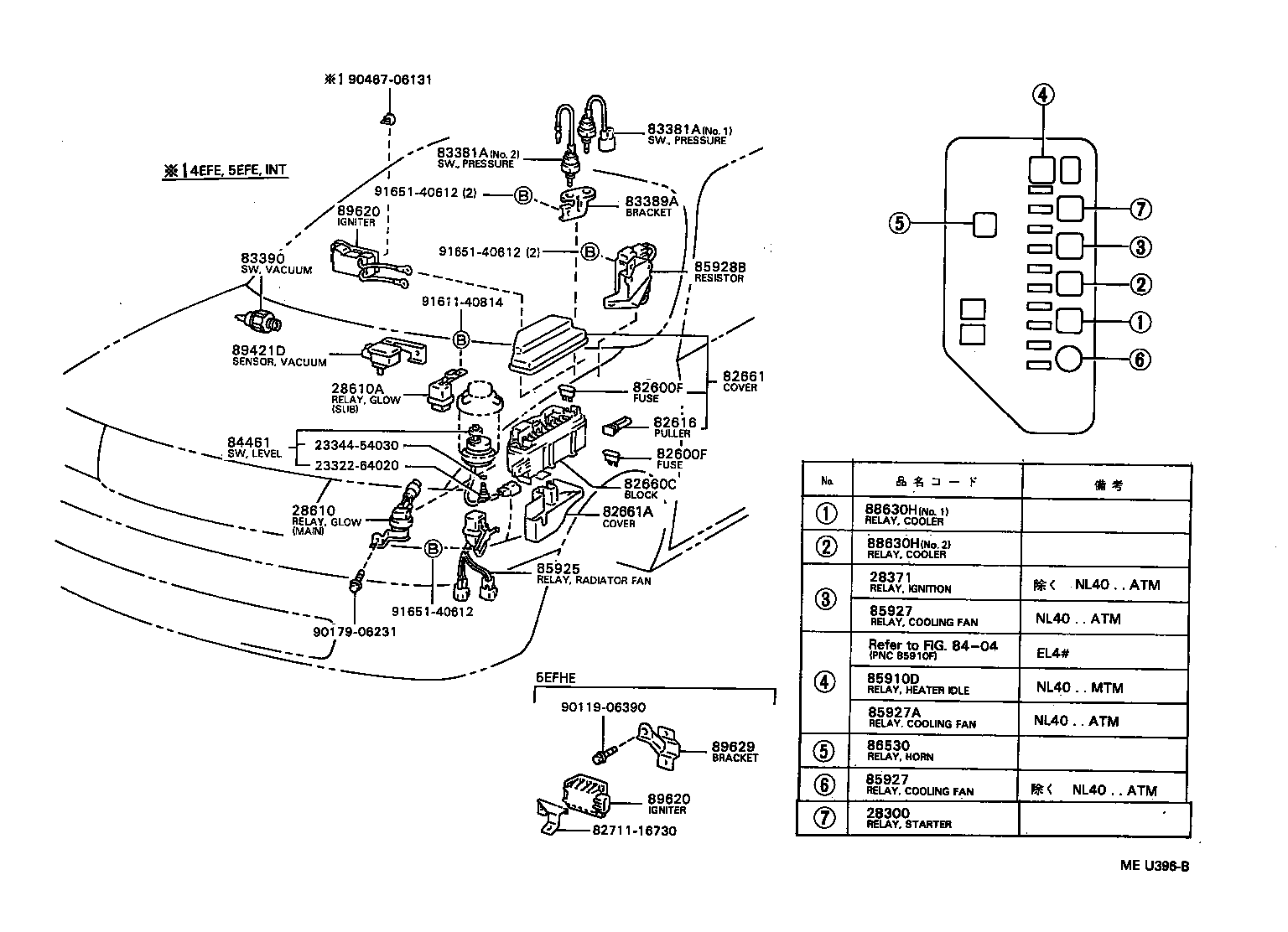

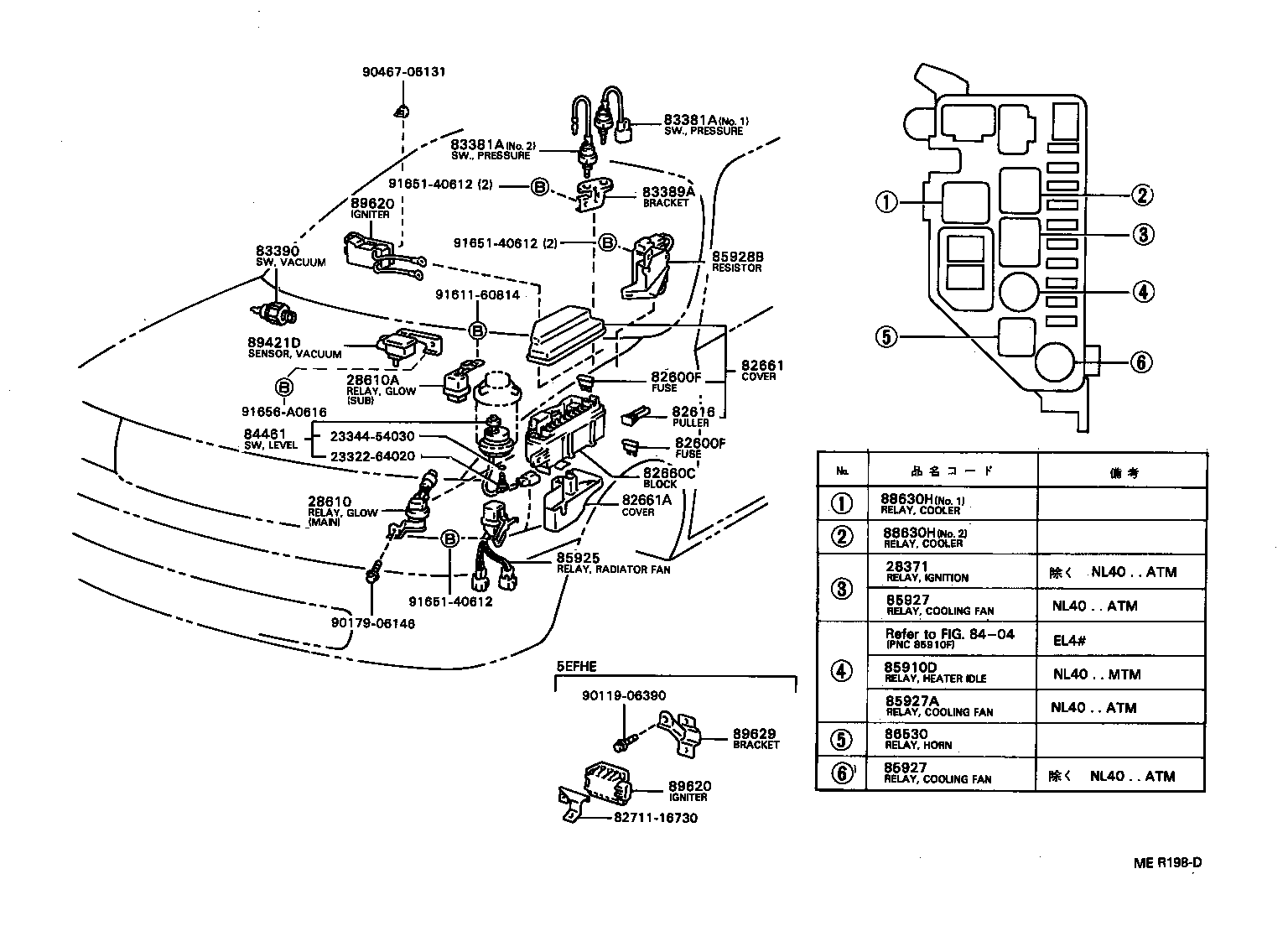

| 83381A | Switch, Pressure |
| 83389A | Bracket, Pressure Switch |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |

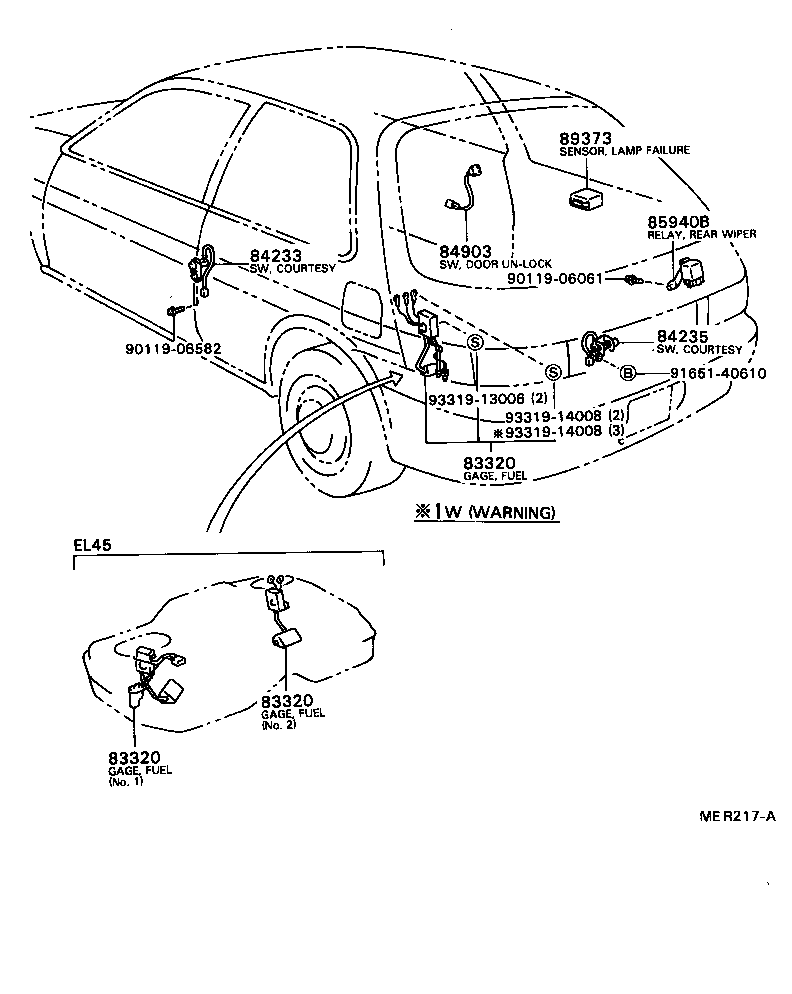

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |

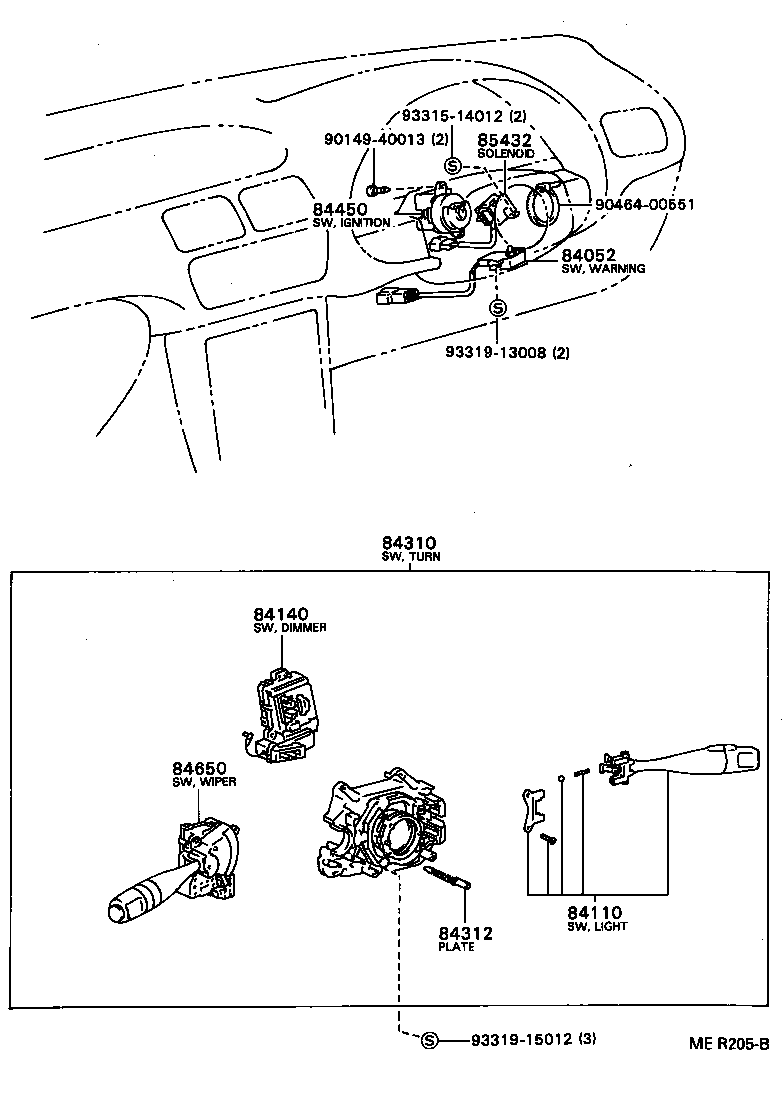

| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84727 | Switch, Shift Lock Control |

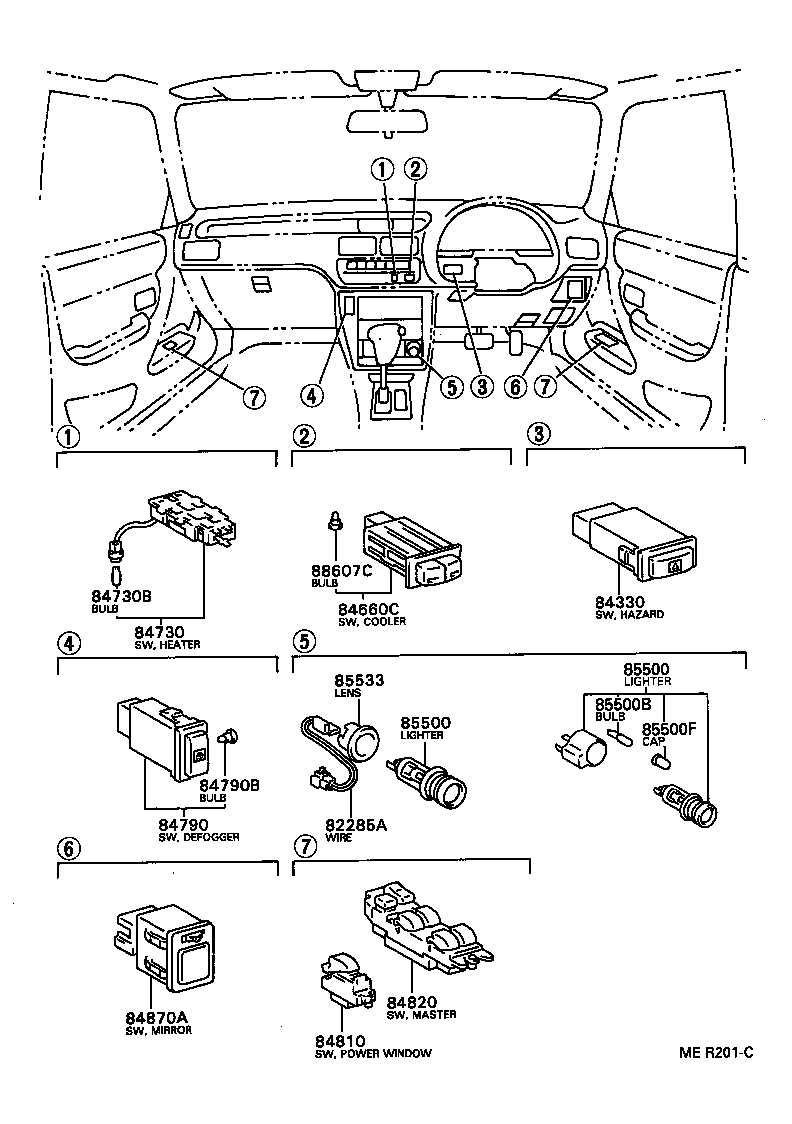

| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910D | Relay (FOR HEATER IDLE UP) |
| 85925 | Relay, Radiator Fan |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |

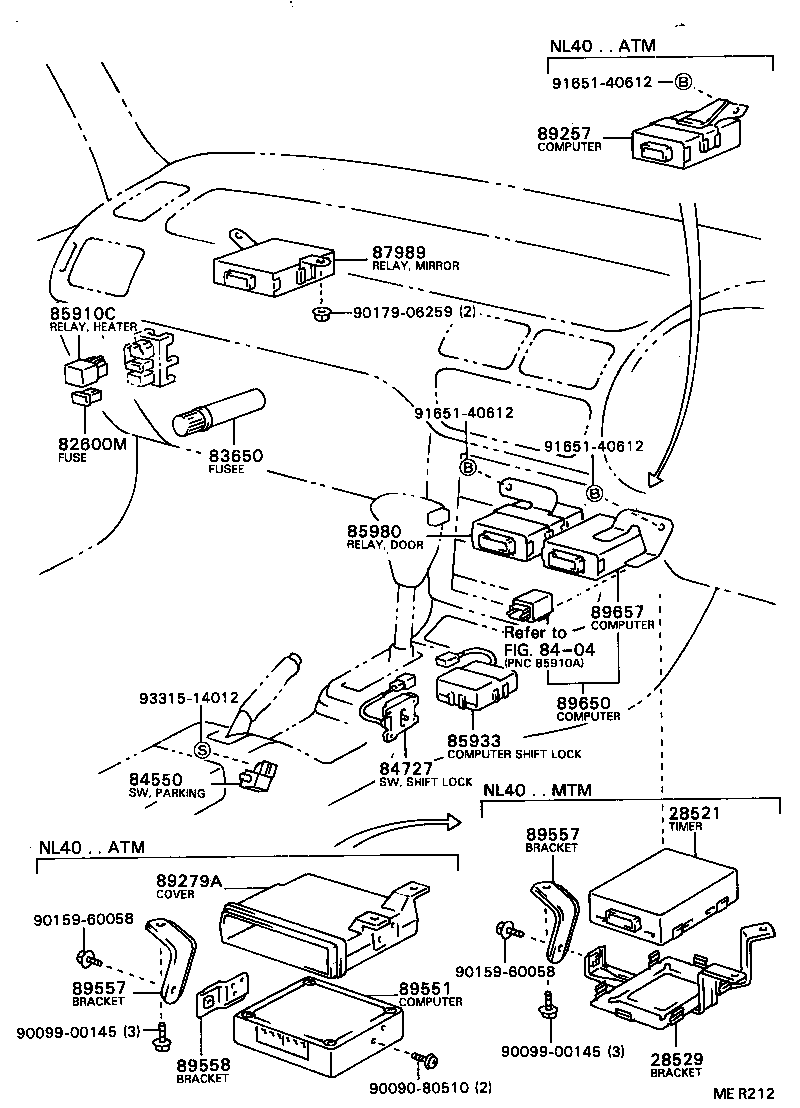

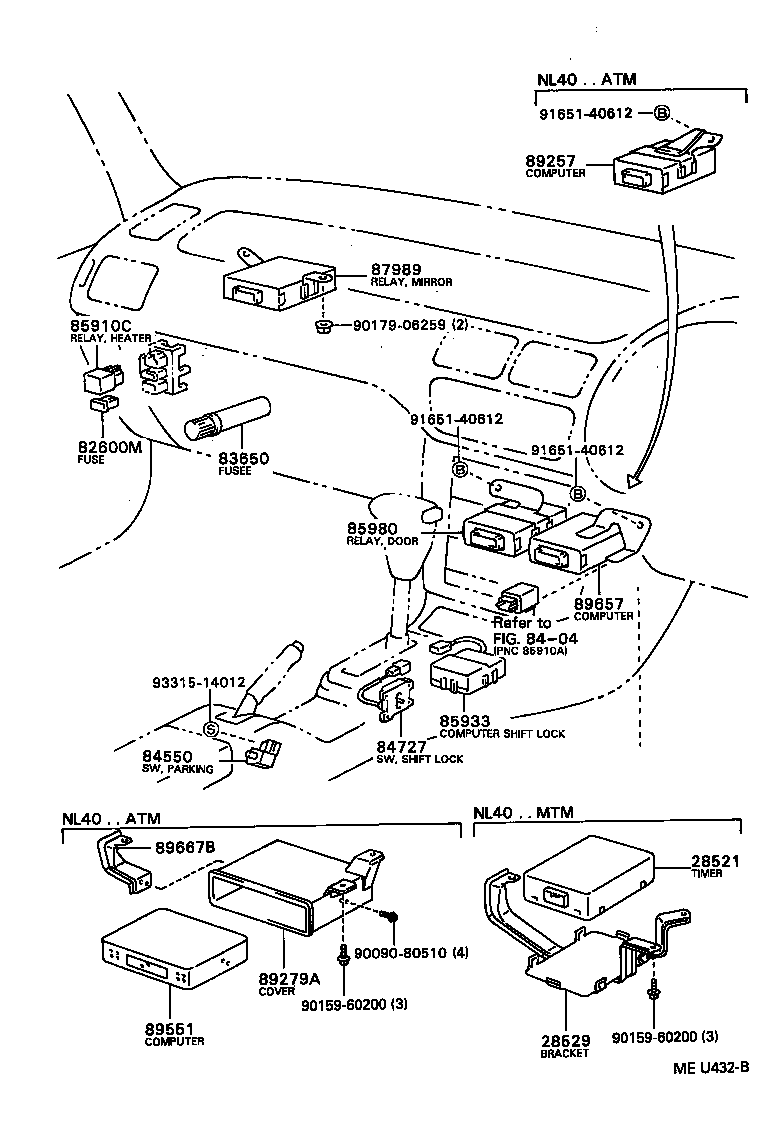

| 85933 | Computer, Shift Lock Control |
| 85939 | Relay, Power Window |
| 85940B | Relay Assy, Rear Wiper |

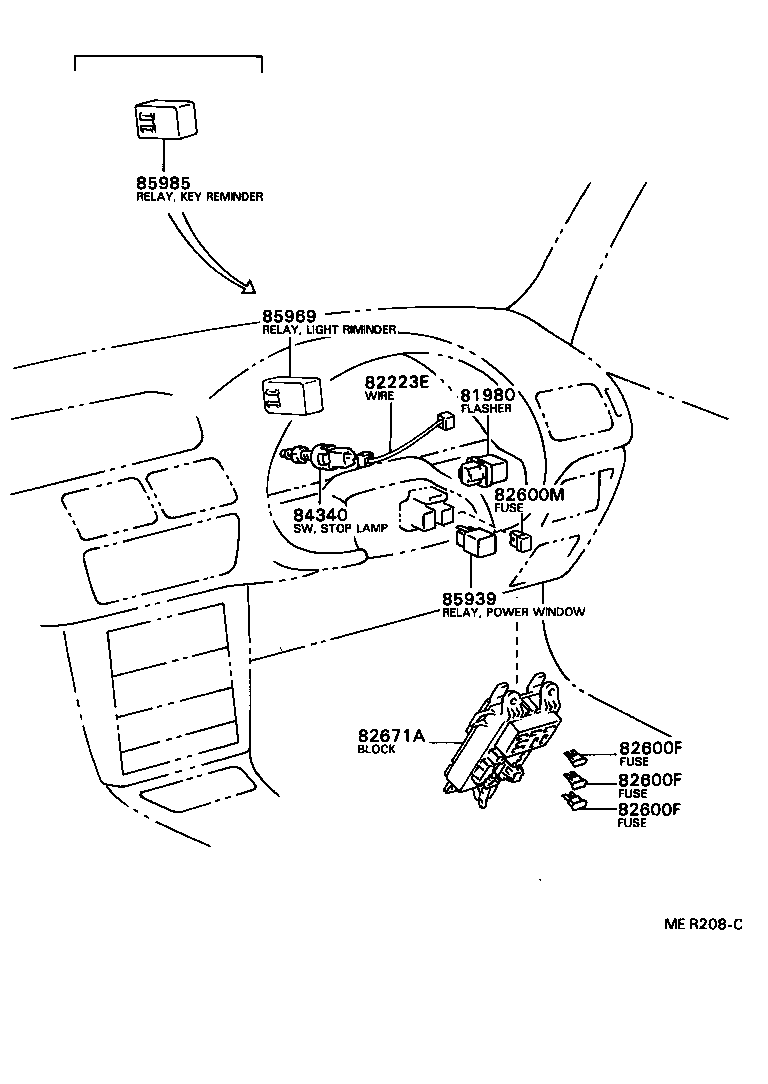

| 85969 | Relay, Light Reminder |
| 85980 | Relay Assy, Door Control |
| 85985 | Relay, Key Reminder |
| 86530 | Relay Assy, Horn |
| 87989 | Relay, Mirror Control |
| 88607C | Lamp Sub-assy, Indicator |
| 88620C | Thermo Switch Assy |
| 88630H | Relay Assy, Cooler |
| 89257 | Computer, Cooling Fan |
| 89279A | Cover, Computer |
| 89373 | Sensor, Lamp Failure Indicator |
| 89421D | Sensor, Turbo Pressure |
| 89422A | Sensor, Water Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89427E | Switch, Temperature (FOR HEATER IDLE UP) |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89428E | Switch, Temperature, NO.2 (FOR TRANSMISSION) |
| 89465 | Sensor, Oxygen |
| 89551 | Computer, Emission Control |
| 89557 | Bracket, Emission Control Computer, NO.1 |
| 89558 | Bracket, Emission Control Computer, NO.2 |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89650 | Computer Assy, Power Steering |
| 89657 | Computer, Power Steering |
| 89667B | Bracket, Engine Control Computer, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
