Toyota Corolla 2

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 143140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

9 part groups · 2 illustrations

Illustrations

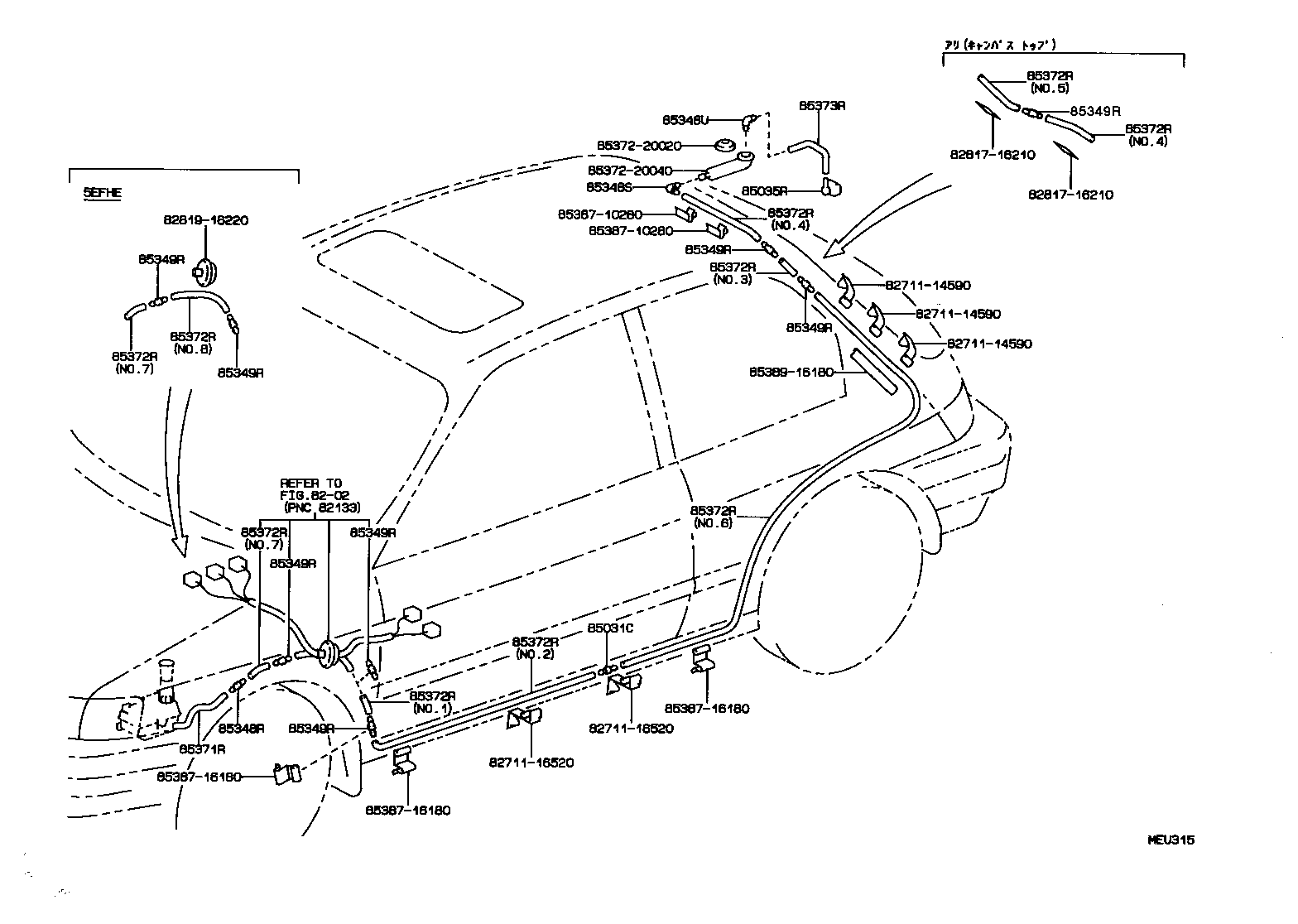

Figure MER150D MER150D 1990-09 → 1992-08 Figure MEU315 MEU315 1992-08 → —

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85035R Nozzle Sub-assy, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348U Joint, Rear Washer Hose, NO.3
85349R Joint, Rear Washer Hose, NO.5
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
