Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

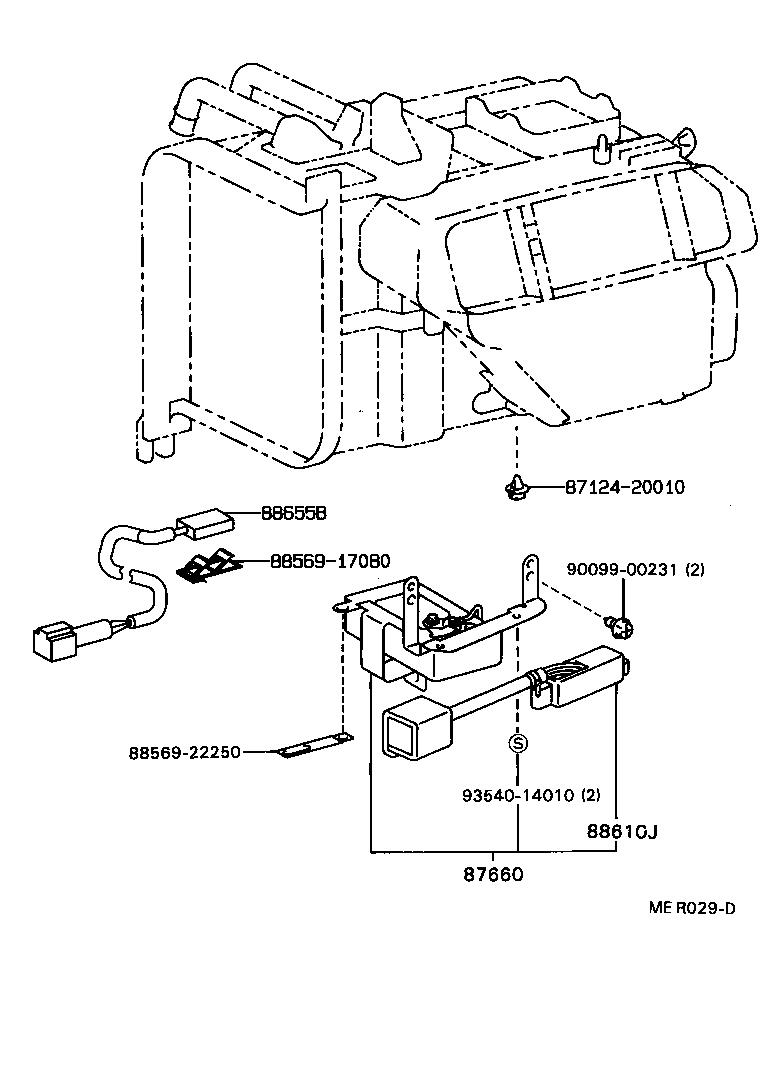

Figure MEQ926C MEQ926C 1990-09 → — Figure MER029D MER029D 1990-09 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
87710C Heater Assy, Quick
88605P Harness Sub-assy, Air Conditioner Wiring
88610J Switch Assy, Control
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
