Heating & Air Conditioning - Cooler Unit

18 part groups · 3 illustrations

Illustrations

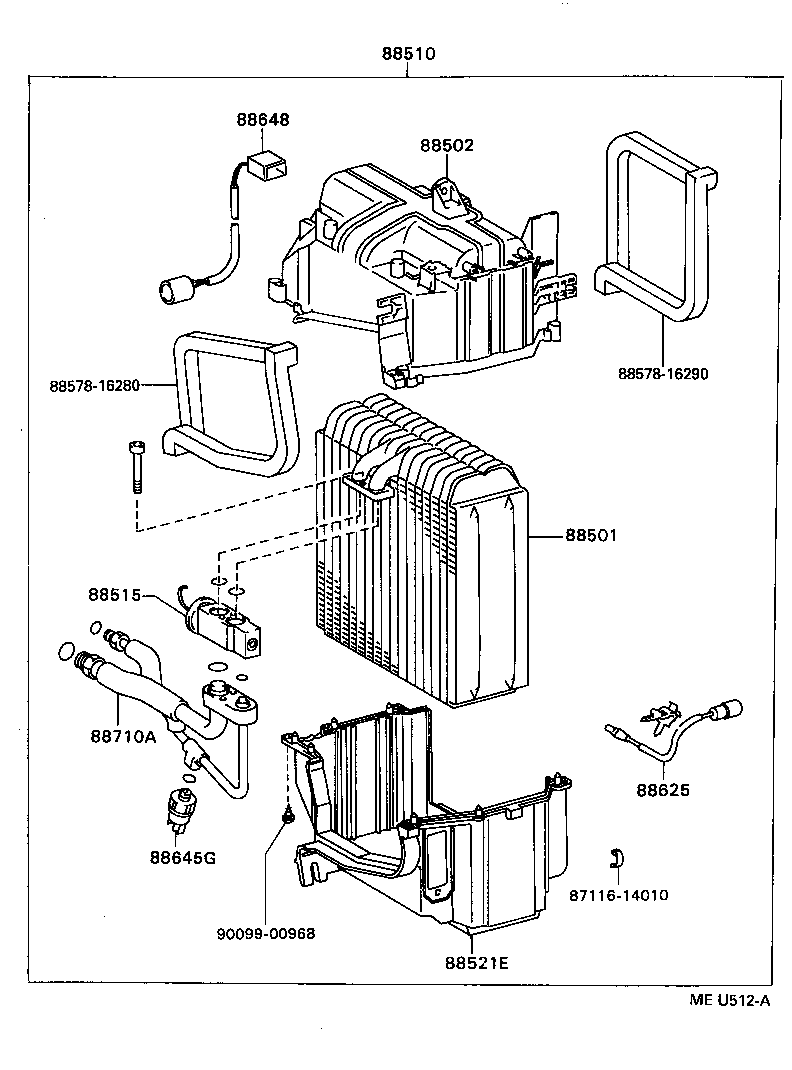

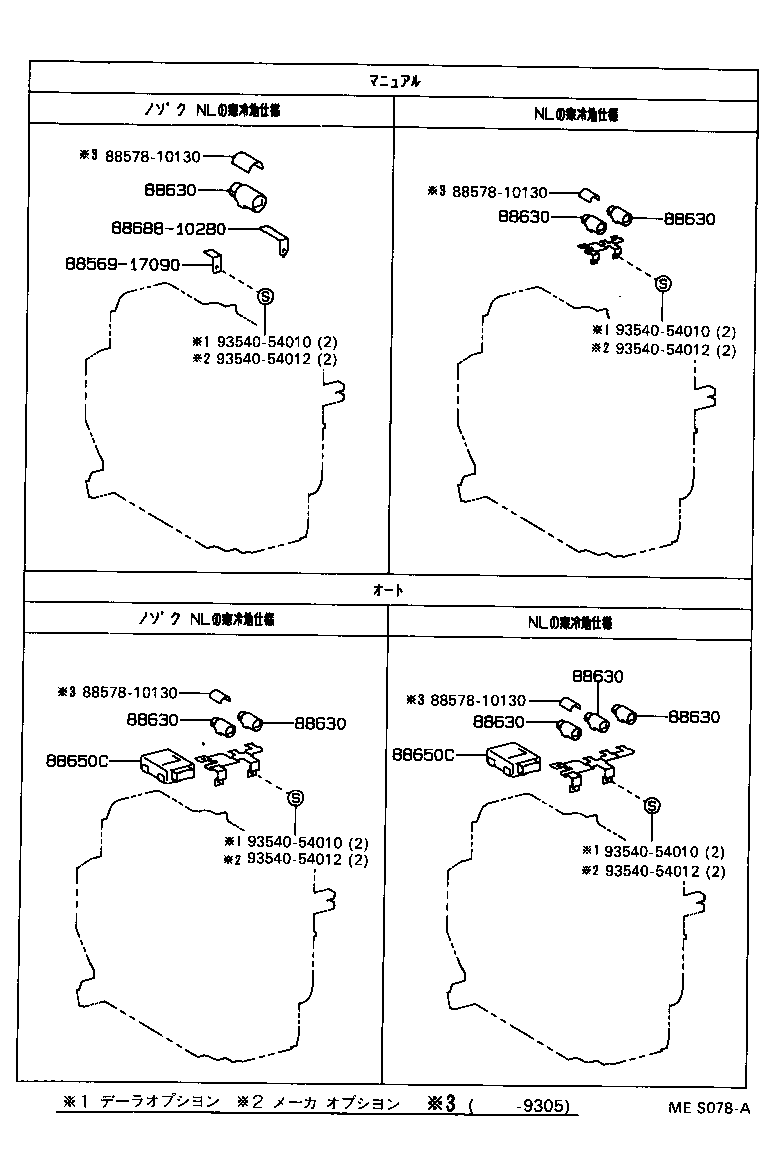

Figure MER138G MER138G 1990-09 → — Figure MES078A MES078A 1990-09 → — Figure MEU512A MEU512A 1990-09 → —

Part groups

PNCDescription
82600H Fuse, Fuse Block
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521E Case Sub-assy, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88710A Tube Assy, Air Conditioner
88723A Label, Cooler Service Caution
88891 Packing (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
