Heating & Air Conditioning - Control & Air Duct

25 part groups · 4 illustrations

Illustrations

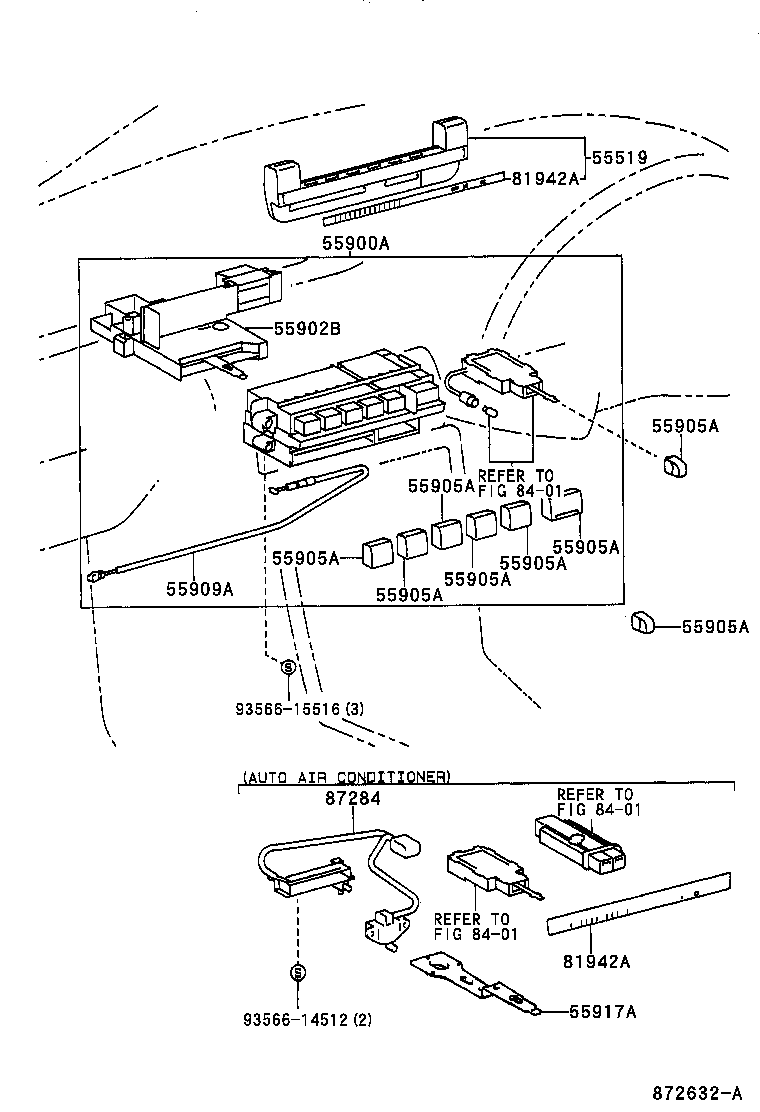

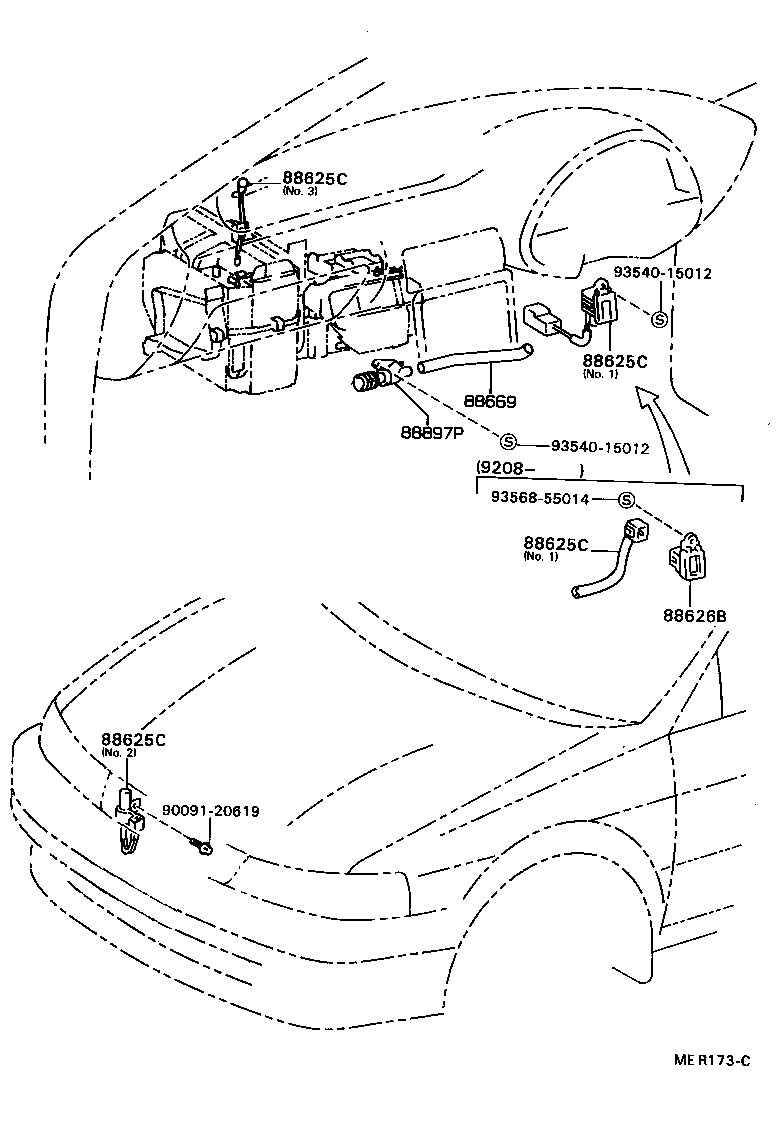

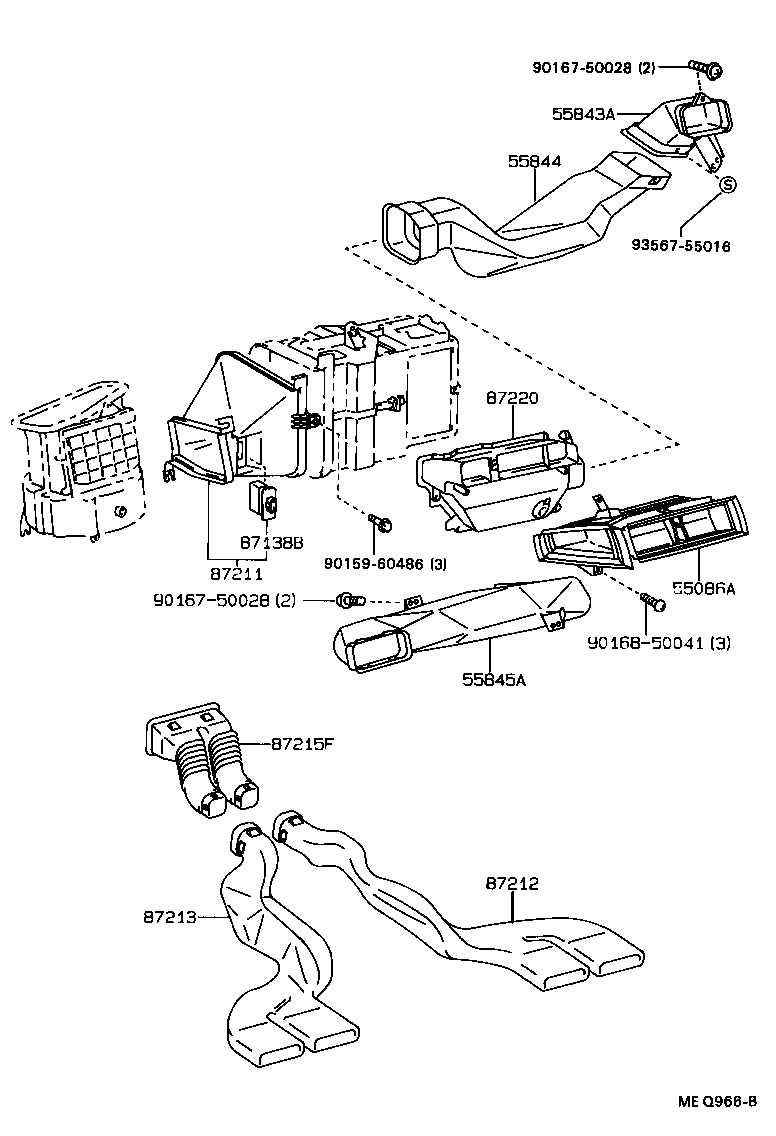

Figure 872631 872631 1990-09 → — Figure 872632A 872632A 1990-09 → — Figure MEQ966B MEQ966B 1990-09 → — Figure MER173C MER173C 1990-09 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88626B Holder, Thermistor
88669 Hose, Cooler Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
