Toyota Corolla 2
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan
Discontinued model
Data version 2000-02

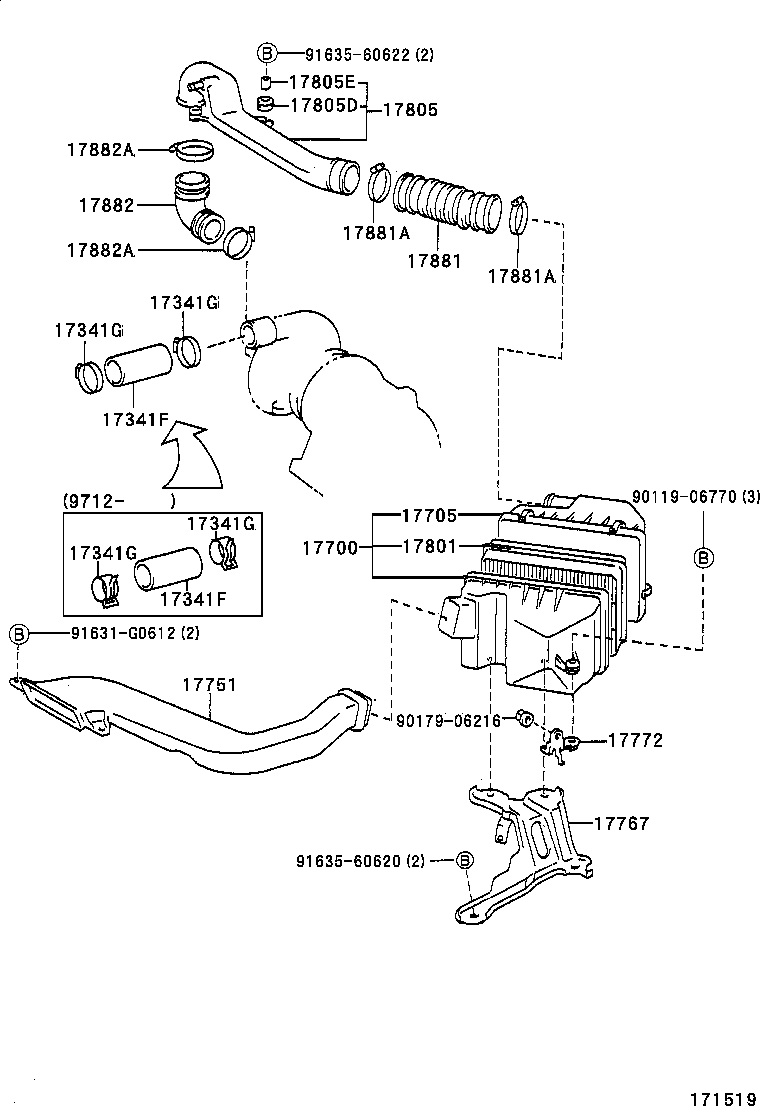

Air Cleaner
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17767 | Bracket, Air Cleaner |
| 17771 | Bracket, Air Cleaner Inlet Duct |
| 17772 | Bracket, Intake Air Connector, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17805D | Grommet(FOR INTAKE AIR CONNECTOR) |
| 17805E | Collar(FOR INTAKE AIR CONNECTOR) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893A | Clamp, Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
