Toyota Corolla 2

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 4 illustrations

Illustrations

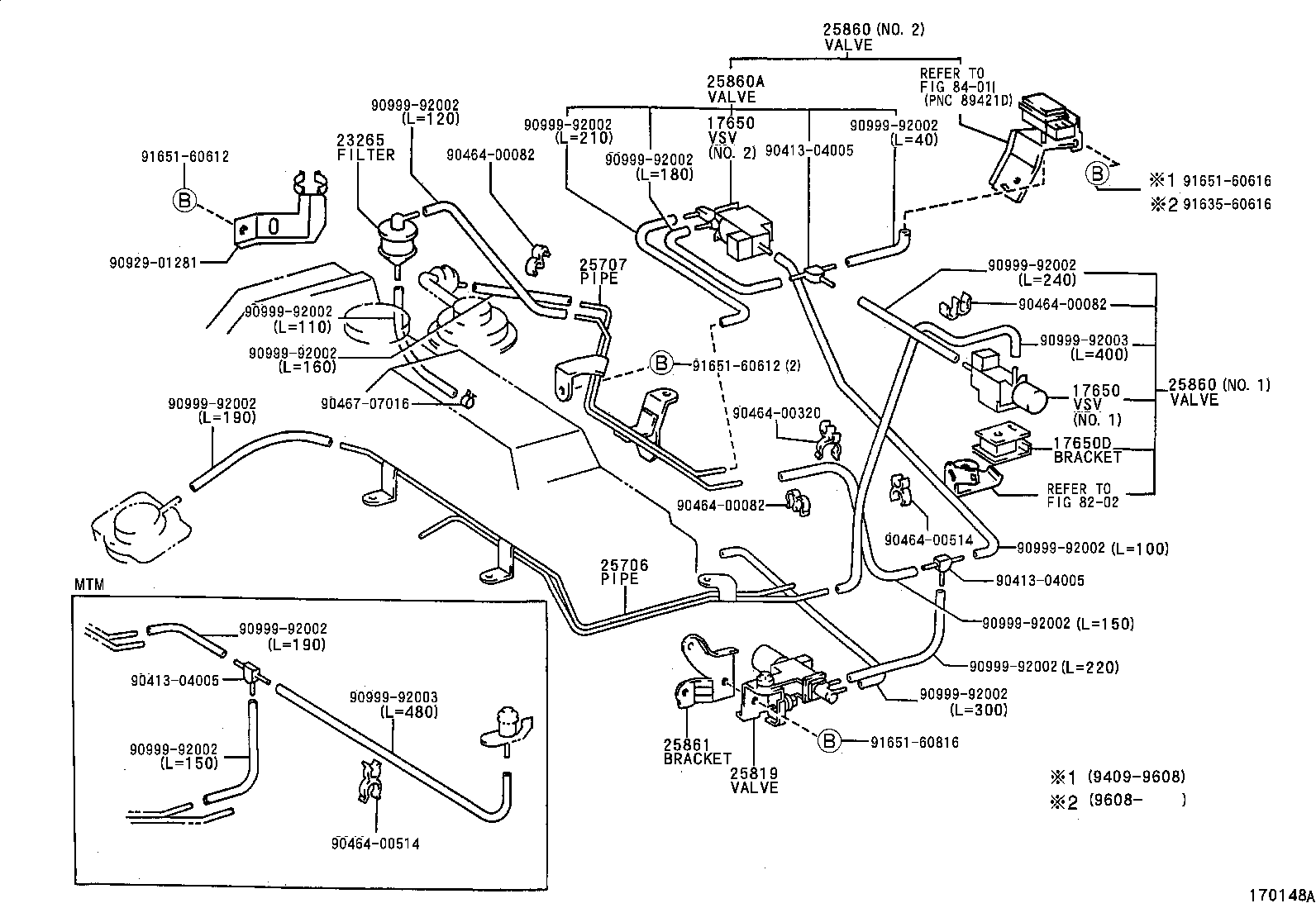

Figure 170020 170020 1994-09 → — Figure 170203B 170203B 1994-09 → 1997-12 Figure 171429 171429 1997-12 → — Figure 170148A 170148A 1994-09 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17341P Hose, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
23265C Filter, Gas
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
