Toyota Corolla 2

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

37 part groups · 2 illustrations

Illustrations

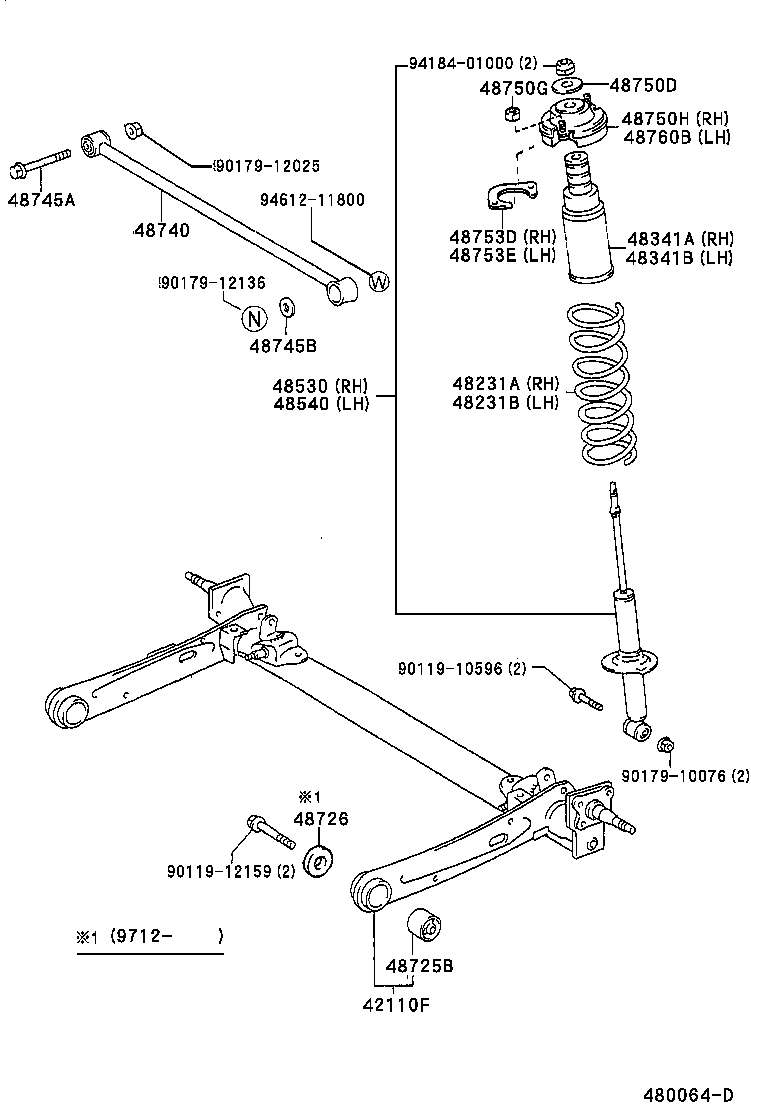

Figure 480067D 480067D 1994-09 → — Figure 480064D 480064D 1994-09 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341 Bumper, Rear Spring
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48351 Bumper, Differential Carrier
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48703C Nut(FOR REAR SUSPENSION ARM)
48703E Bolt(FOR REAR SUSPENSION ARM)
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48725B Bush, Rear Suspension Arm, NO.1
48726 Seat, Rear Suspension Arm
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48750 Support Assy, Rear Suspension
48750D Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750G Nut(FOR REAR SUSPENSION SUPPORT)
48750H Support Assy, Rear Suspension, RH
48753D Cover, Rear Suspension Supoport, NO.2 RH
48753E Cover, Rear Suspension Supoport, NO.2 LH
48760B Support Assy Rear Suspension, LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817U Bolt(FOR REAR STABILIZER)
48832B Bracket, Rear Stabilizer Bar, NO.2
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
