Toyota Corolla 2
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan
Discontinued model
Data version 2000-02

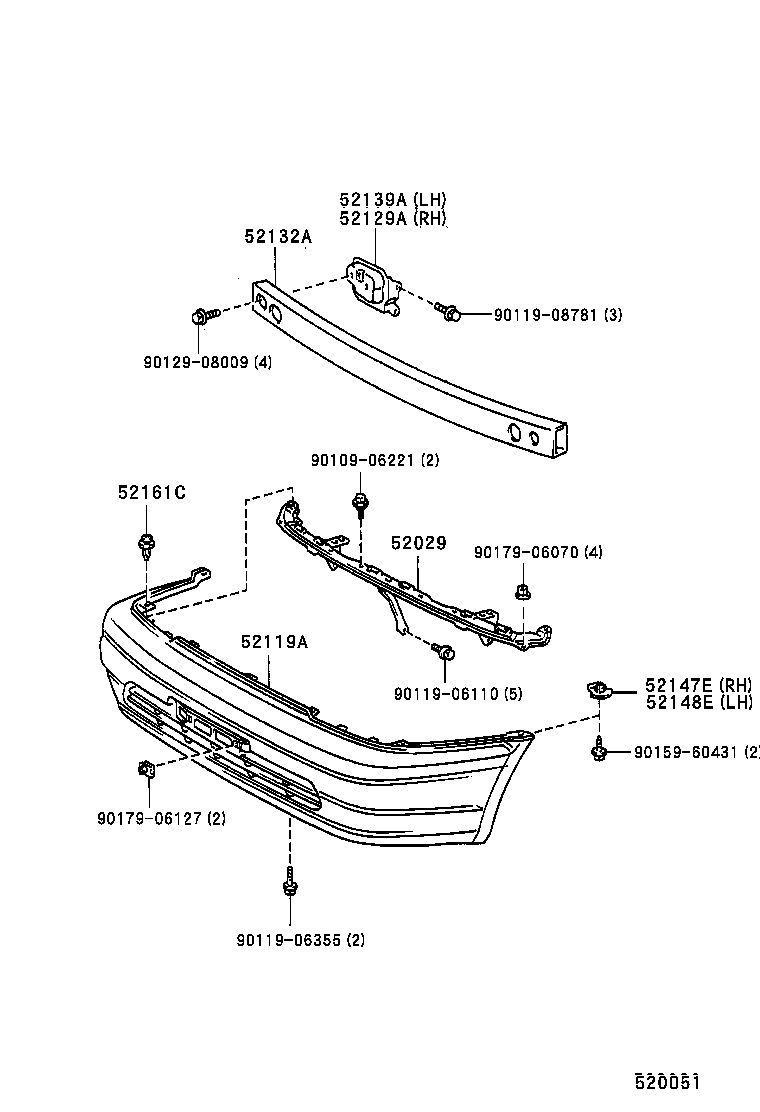

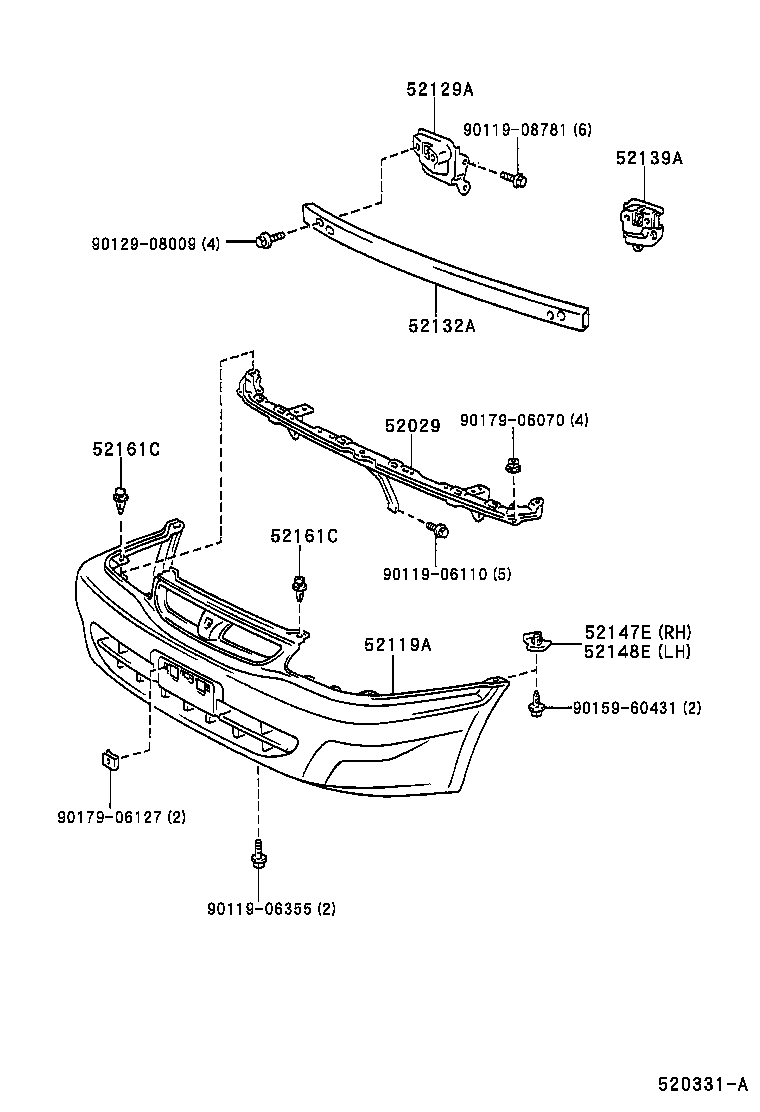

Front Bumper & Bumper Stay
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52013 | Arm Sub-assy, Front Bumper, Inner RH |
| 52014 | Arm Sub-assy, Front Bumper, Inner LH |
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52119A | Cover, Front Bumper |
| 52129A | Arm, Front Bumper, Upper NO.2 RH |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52139A | Arm, Front Bumper, Upper NO.2 LH |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52161C | Piece, Front Bumper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
