Toyota Corolla 2
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan
Discontinued model
Data version 2000-02

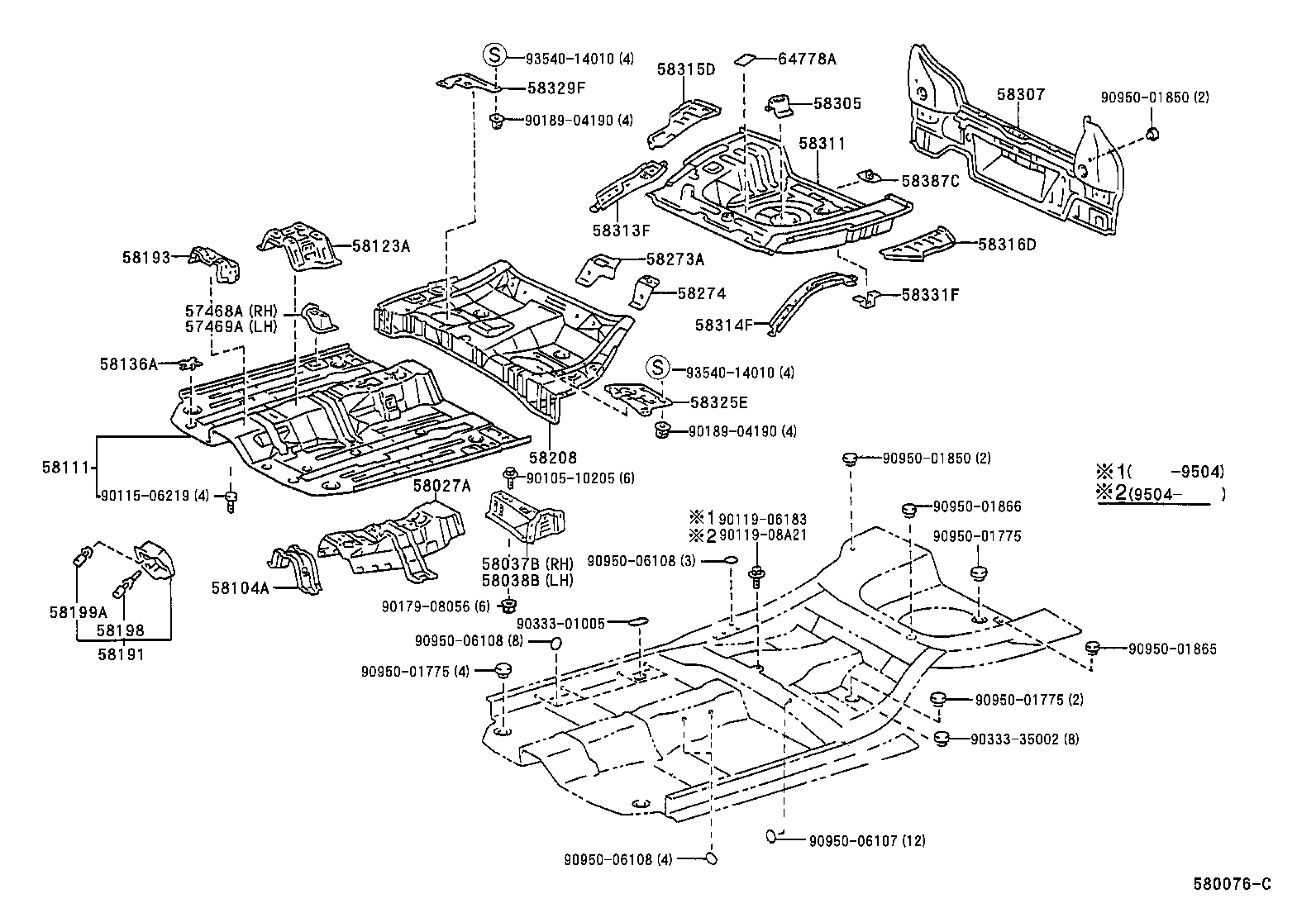

Floor Pan & Lower Back Panel
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58037B | Reinforce, Center Pillar TO Floor, RH |
| 58038B | Reinforce, Center Pillar TO Floor, LH |
| 58104A | Bracket Sub-assy, Catalytic Converter Support |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136A | Cover, Front Floor Service Hole |
| 58191 | Footrest, Front Floor |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58198 | Clip, Footrest |
| 58199A | Clip, Footrest, NO.2 |
| 58208 | Pan, Center Floor |
| 58273A | Reinforcement, Belt Anchor TO Center Floor, RH |
| 58274 | Reinforcement, Belt Anchor TO Center Floor, NO.1 |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58387C | Plate, Rear Floor Finish |
| 64778A | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
