Toyota Corolla 2
1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan
Discontinued model
Data version 2000-02

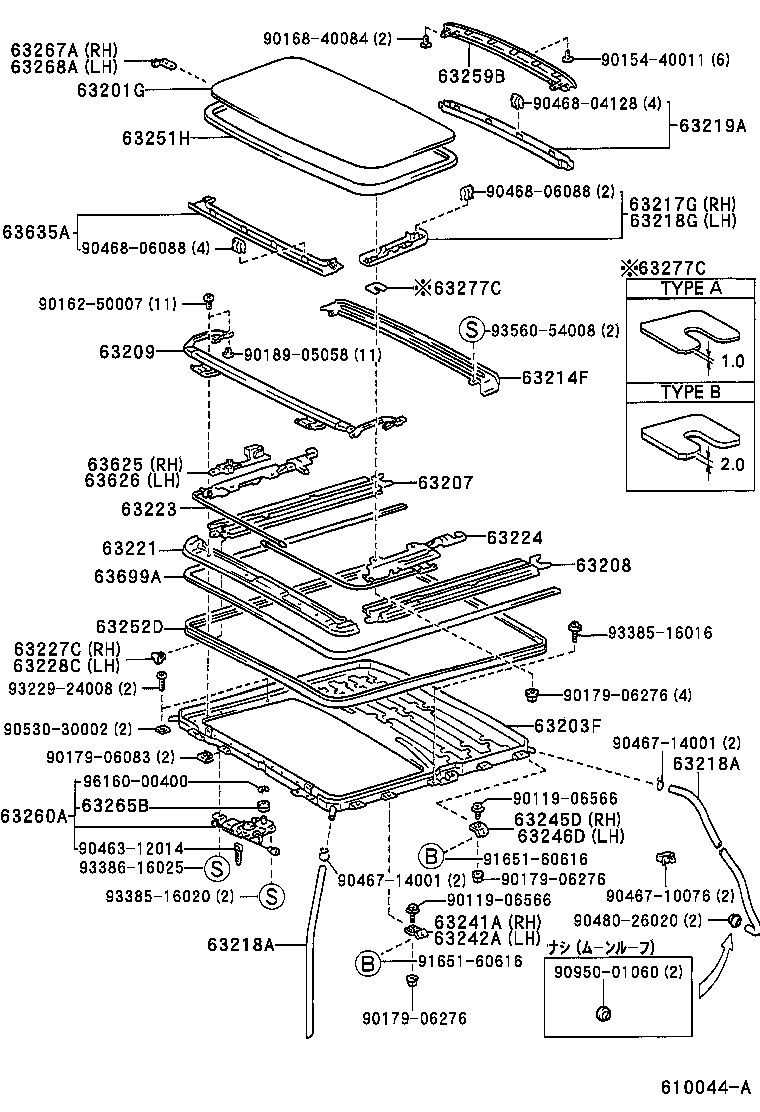

Roof Panel & Back Window Glass
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102A | Panel Sub-assy, Windshield Header |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63135A | Frame, Back Door Opening, Lower |
| 63141H | Reinforcement, Roof Panel, Center |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63227C | Stopper, Sliding Roof Sunshade, Front RH |
| 63228C | Stopper, Sliding Roof Sunshade, Front LH |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63259B | Holder, Sliding Roof Weatherstrip |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
| 67363 | Retainer, Back Door Hinge, NO.2 RH |
| 67364 | Retainer, Back Door Hinge, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
