Toyota Corolla 2

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

48 part groups · 12 illustrations

Illustrations

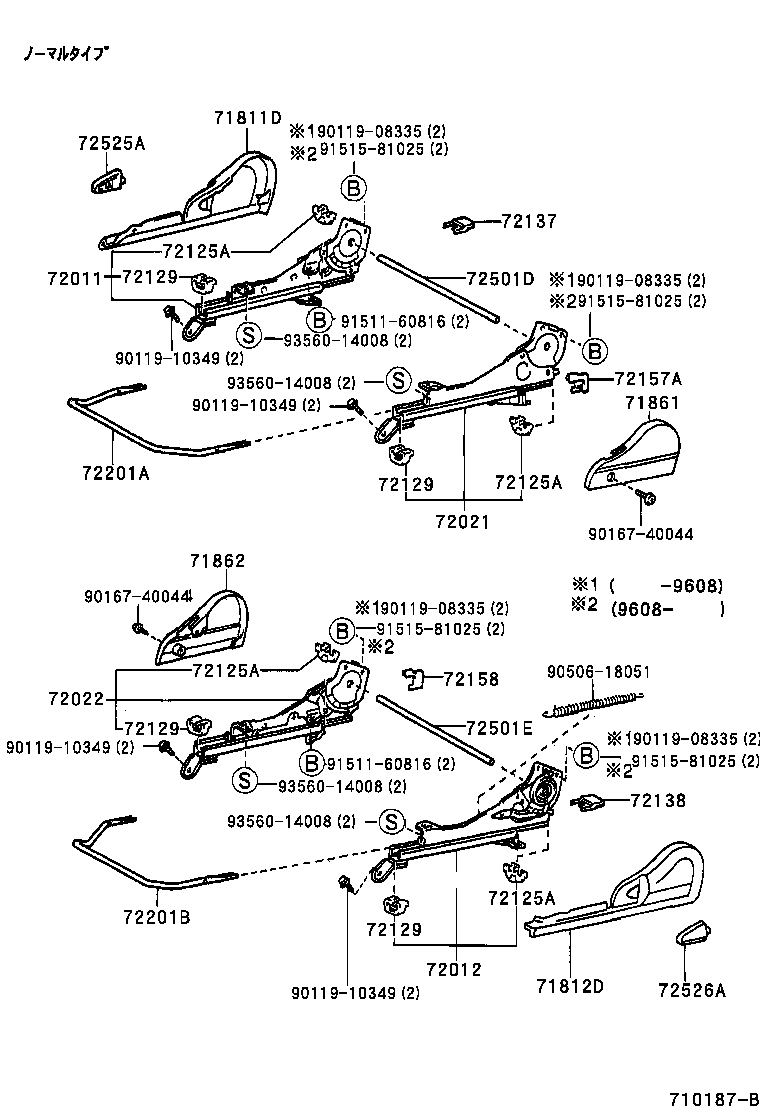

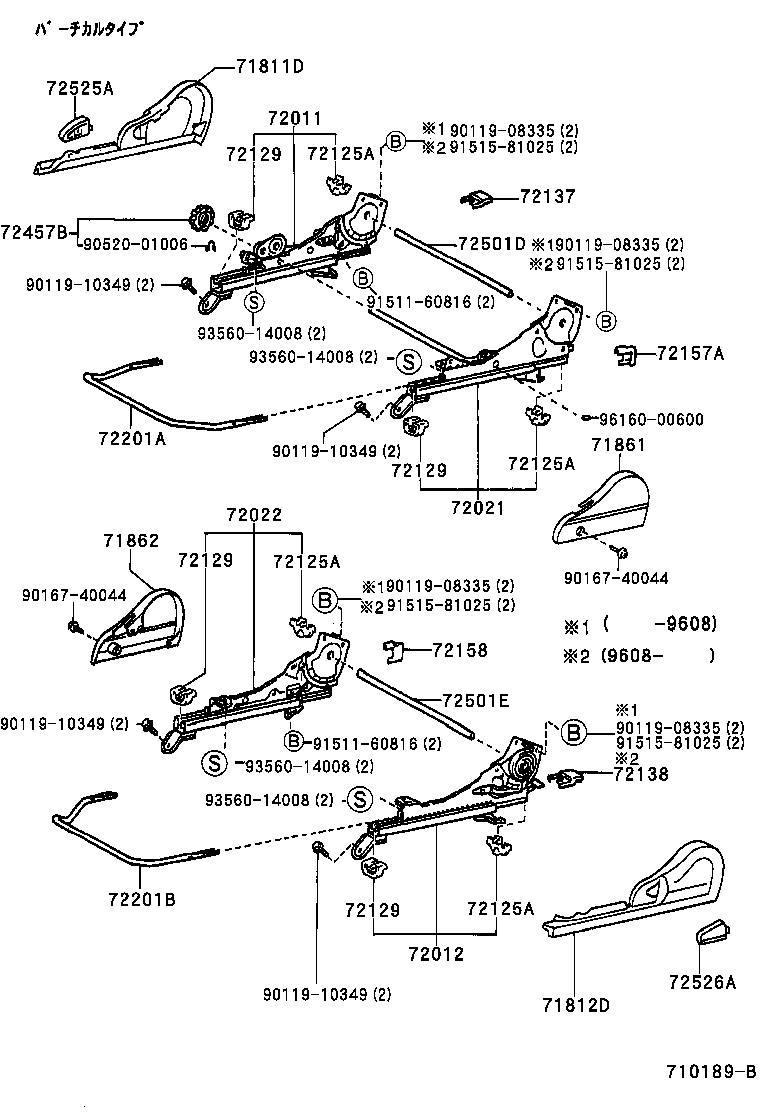

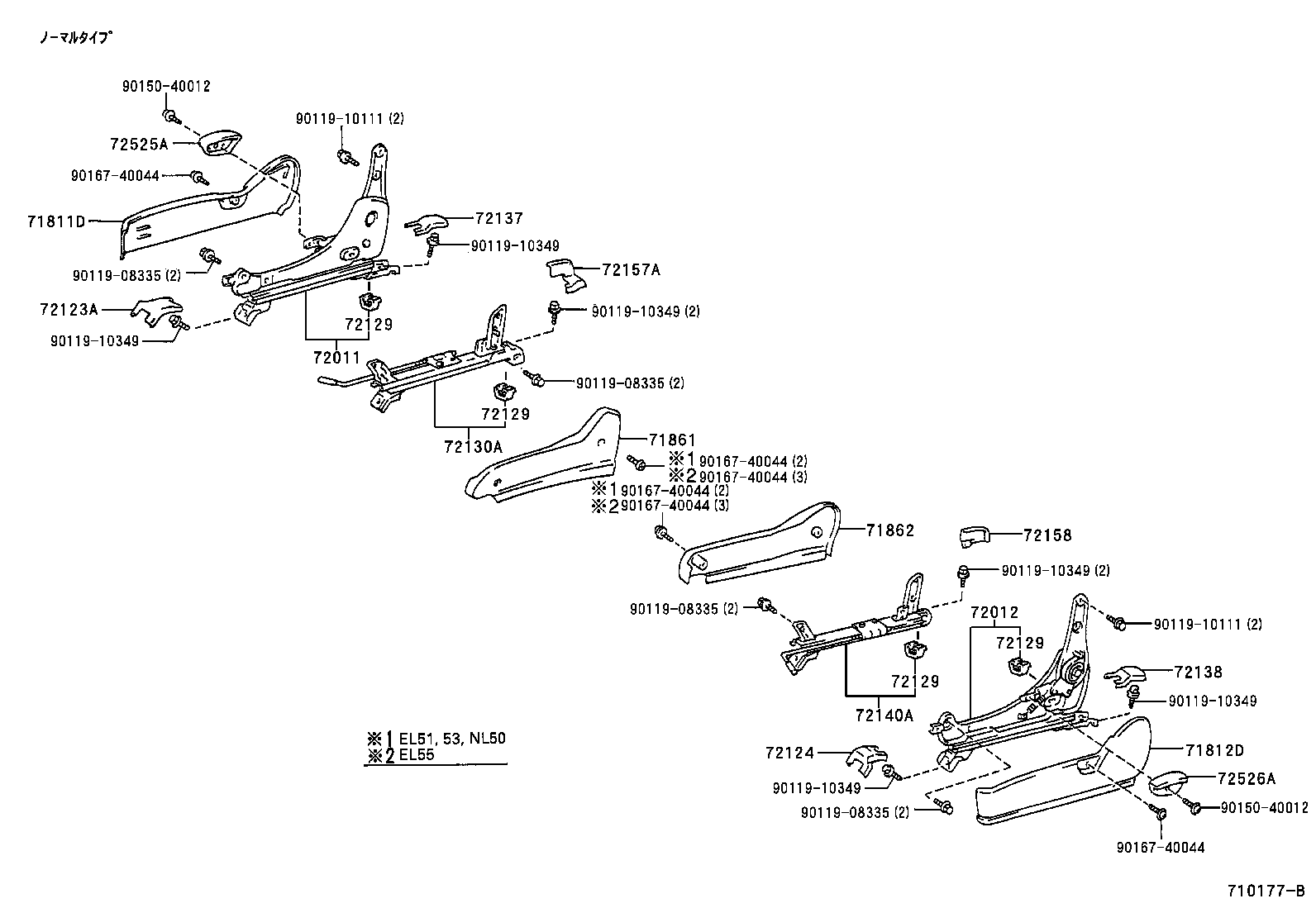

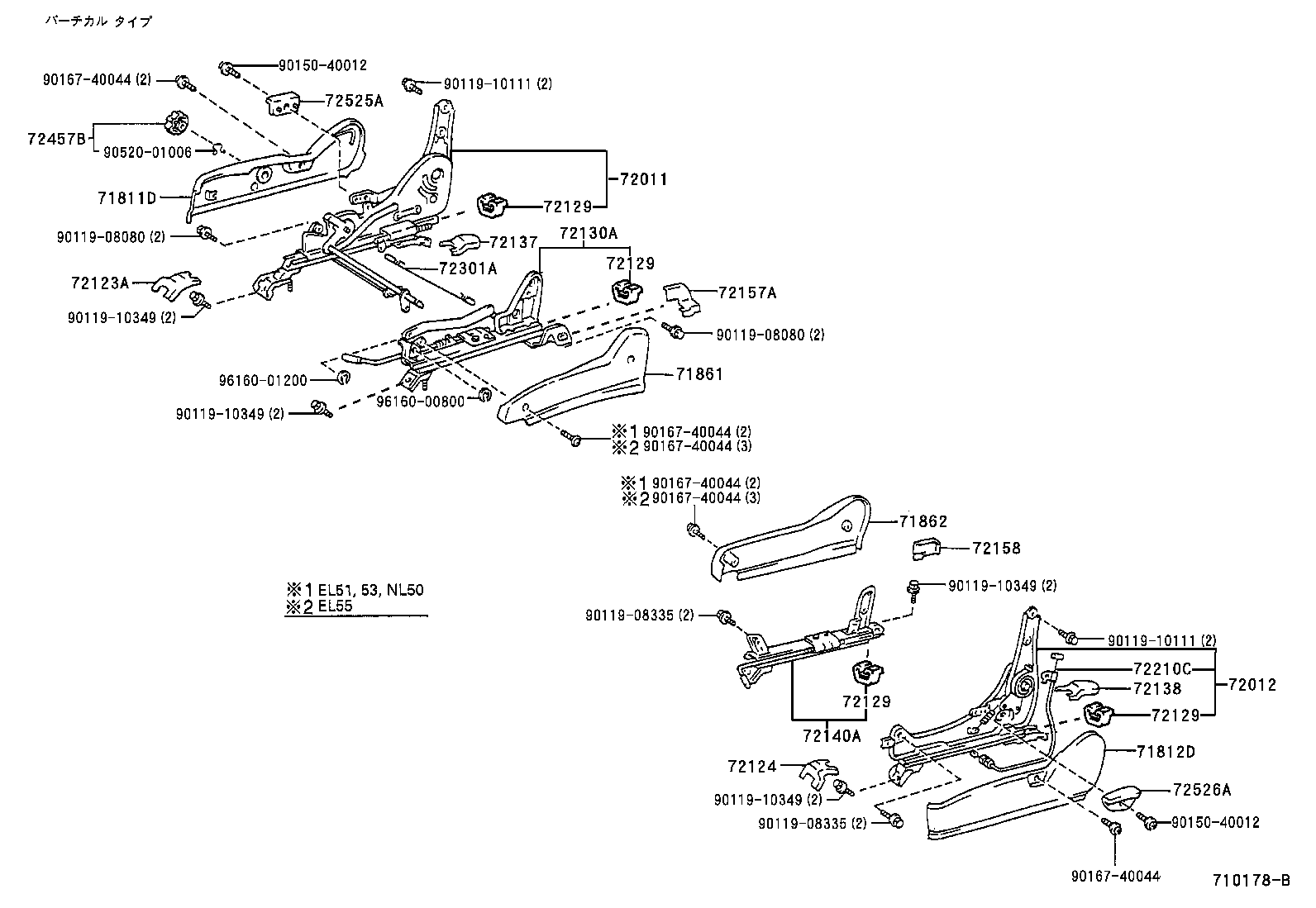

Figure 710116A 710116A 1994-09 → 1996-08 Figure 710116A 710116A 1994-09 → — Figure 710117 710117 1994-09 → 1996-08 Figure 710287A 710287A 1996-08 → — Figure 710194 710194 1996-08 → — Figure 710195A 710195A 1996-08 → — Figure 710177B 710177B 1994-09 → 1996-08 Figure 710177B 710177B 1994-09 → — Figure 710178B 710178B 1994-09 → 1996-08 Figure 710178B 710178B 1994-09 → — Figure 710187B 710187B 1996-08 → — Figure 710189B 710189B 1996-08 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505 Pad Sub-assy, Front Seatback W/Frame, RH
71506 Pad Sub-assy, Front Seatback W/Frame, LH
71537A Protector, Front Seat Cushion
71553B Pad, Front Seatback, B
71587 Protector, Front Seatback Edge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72129 Protector, Seat Track Lower Rail, NO.1
72130A Track Assy, Front Seat, Inner RH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72210C Cable Assy, Seat Track Control, LH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72457B Knob, Vertical Seat Adjuster, RH
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
