Toyota Corolla 2

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

10 part groups · 3 illustrations

Illustrations

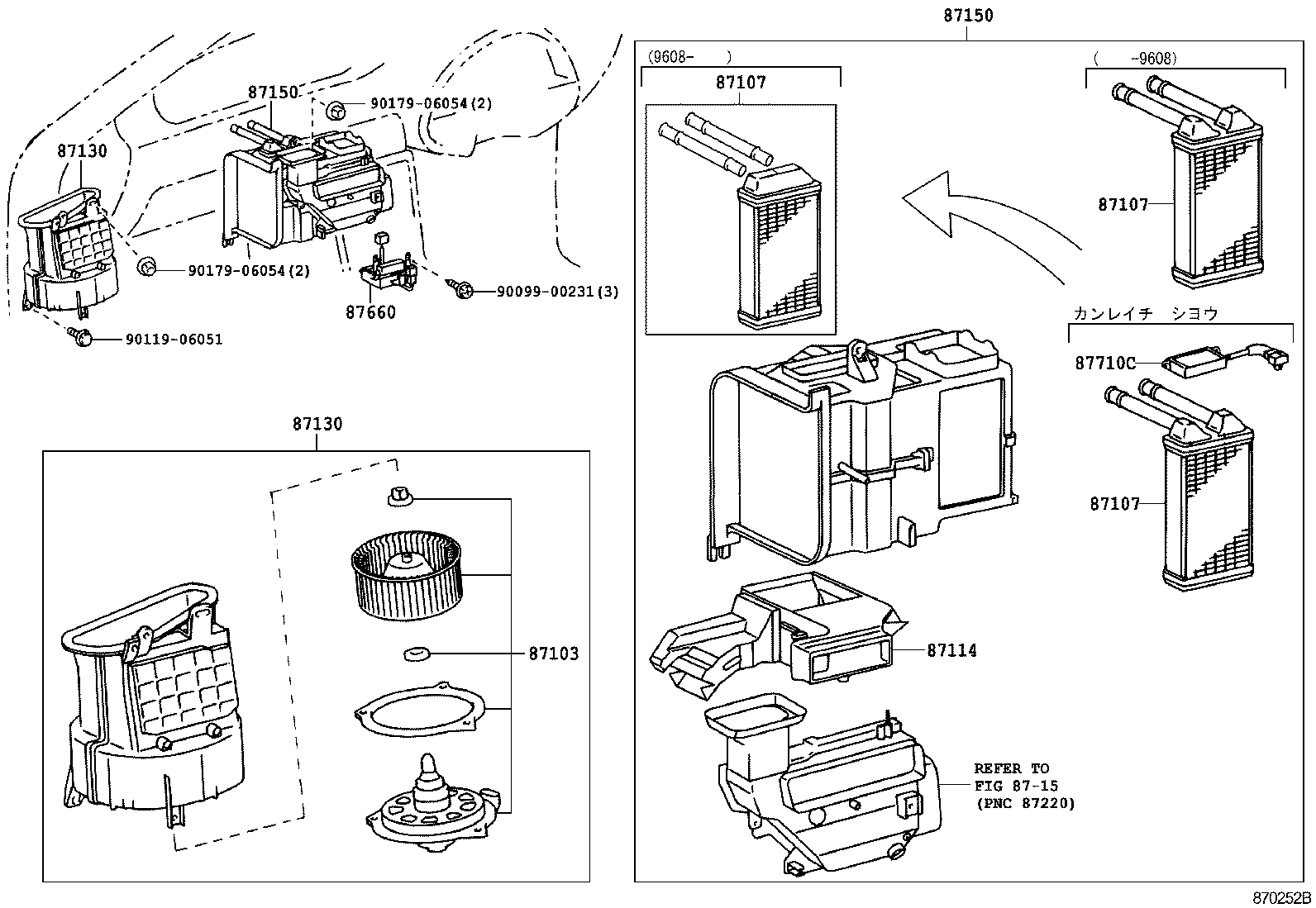

Figure 870250B 870250B 1994-09 → — Figure 870252B 870252B 1994-09 → — Figure 870341A 870341A 1994-09 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87114 Cover, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87660 Servo Assy, Air Conditioner
87710C Heater Assy, Quick
88605P Harness Sub-assy, Air Conditioner Wiring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
