Toyota Corolla 2

1994-09 → 1999-07 · chassis EL5#,NL50 · catalogue 143150 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

10 part groups · 3 illustrations

Illustrations

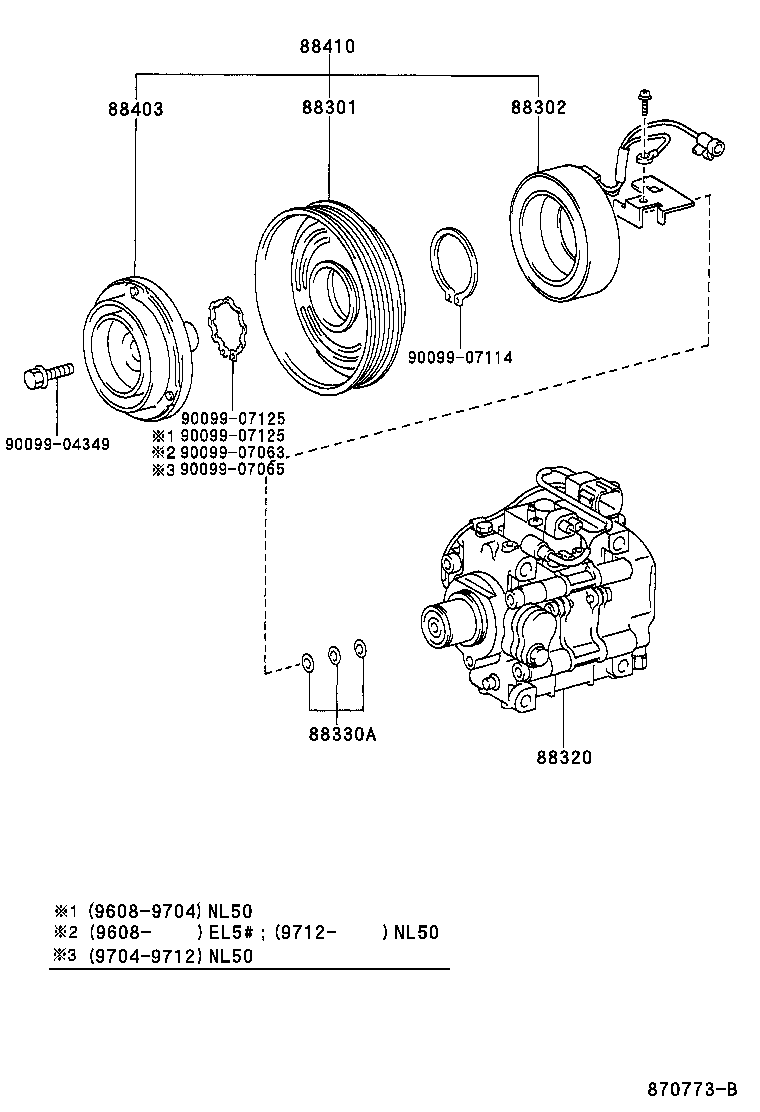

Figure 870771A 870771A 1994-09 → — Figure 870262A 870262A 1994-09 → — Figure 870773B 870773B 1994-09 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88443 Collar, Idle Pulley
88469A Collar, Adjusting
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
