Toyota Cynos

1991-01 → 1995-08 · chassis EL44 · catalogue 144110 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

21 part groups · 3 illustrations

Illustrations

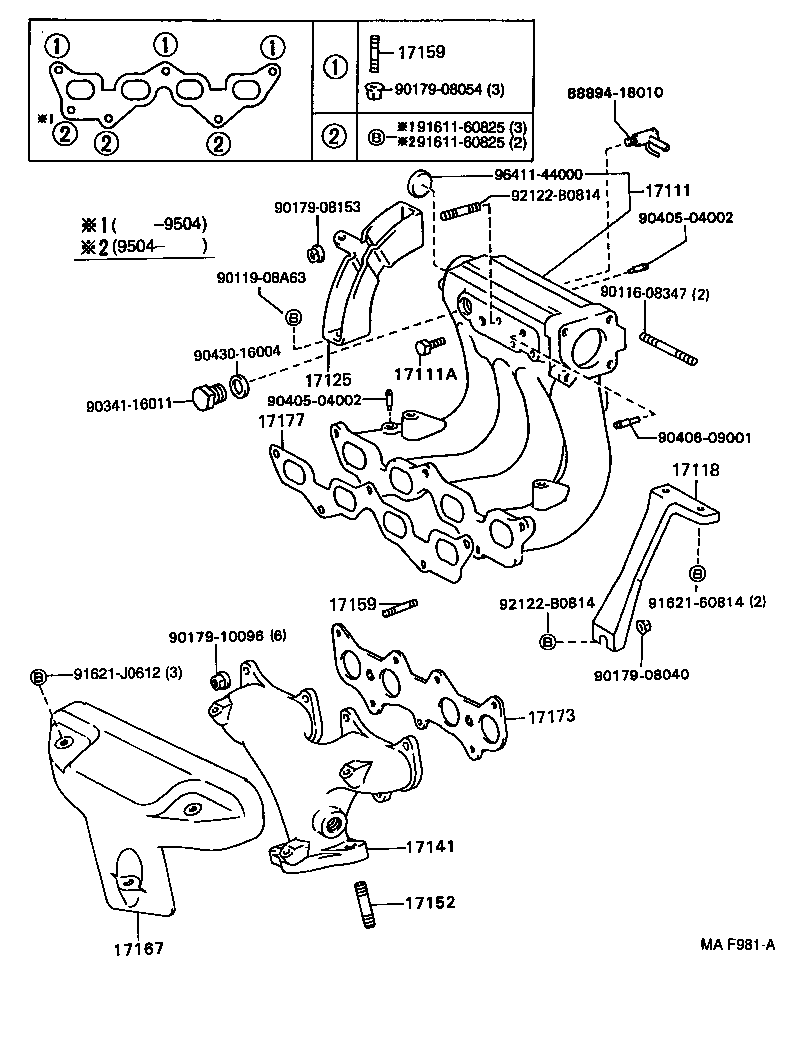

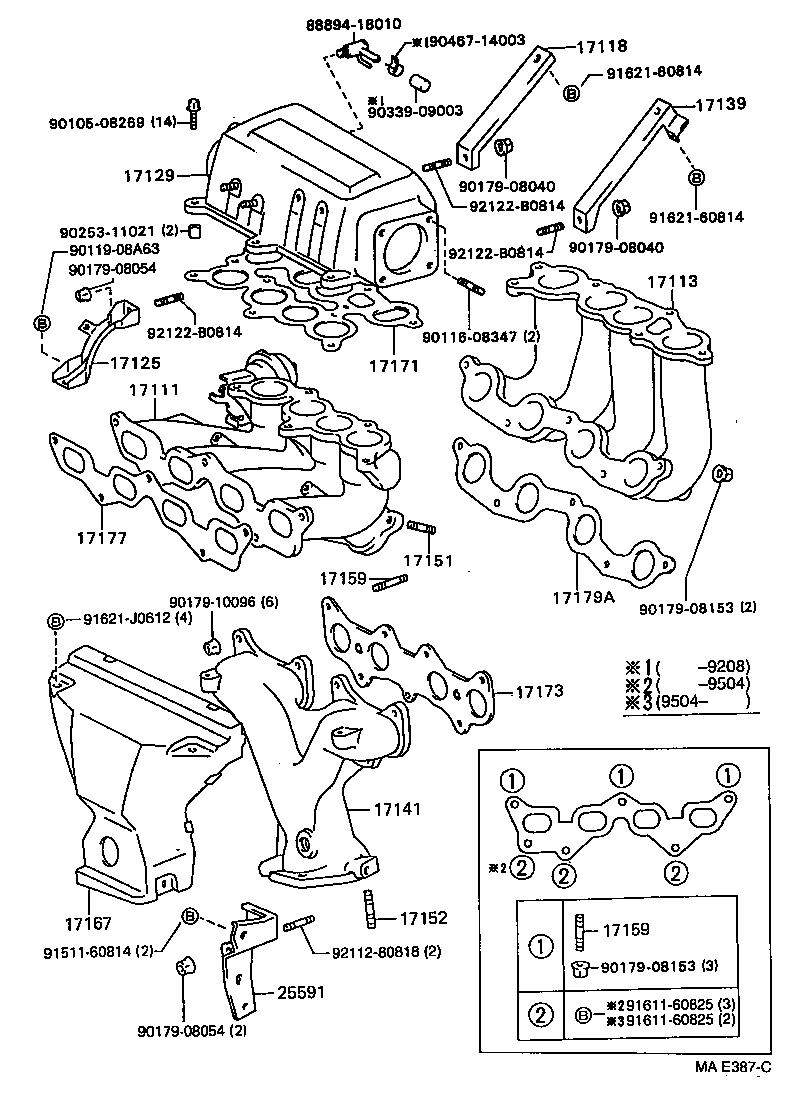

Figure MAE386C MAE386C 1991-01 → 1992-08 Figure MAE387C MAE387C 1991-01 → — Figure MAF981A MAF981A 1992-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17113 Pipe, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
25508 Converter Sub-assy, Manifold
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
