Toyota Cynos
1991-01 → 1995-08 · chassis EL44 · catalogue 144110 · Japan
Discontinued model
Data version 1996-03

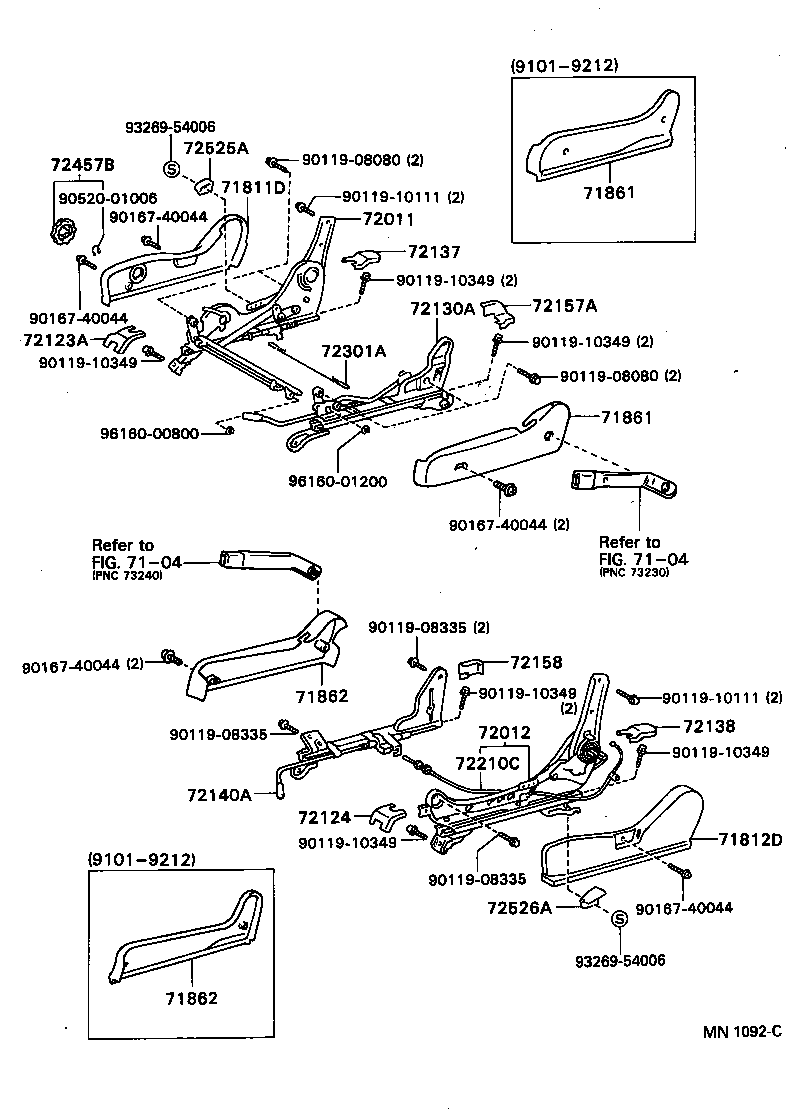

Front Seat & Seat Track
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71081S | Cover Sub-assy, Front Seatback Side, RH |
| 71082S | Cover Sub-assy, Front Seatback Side, LH |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71554 | Pad, Front Seatback, C |
| 71554A | Pad, Front Seatback, Center |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71920A | Headrest Assy, Front Seat, LH |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72210C | Cable Assy, Seat Track Control, LH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
