Toyota Cynos

1995-08 → 1999-07 · chassis EL5# · catalogue 144120 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

16 part groups · 3 illustrations

Illustrations

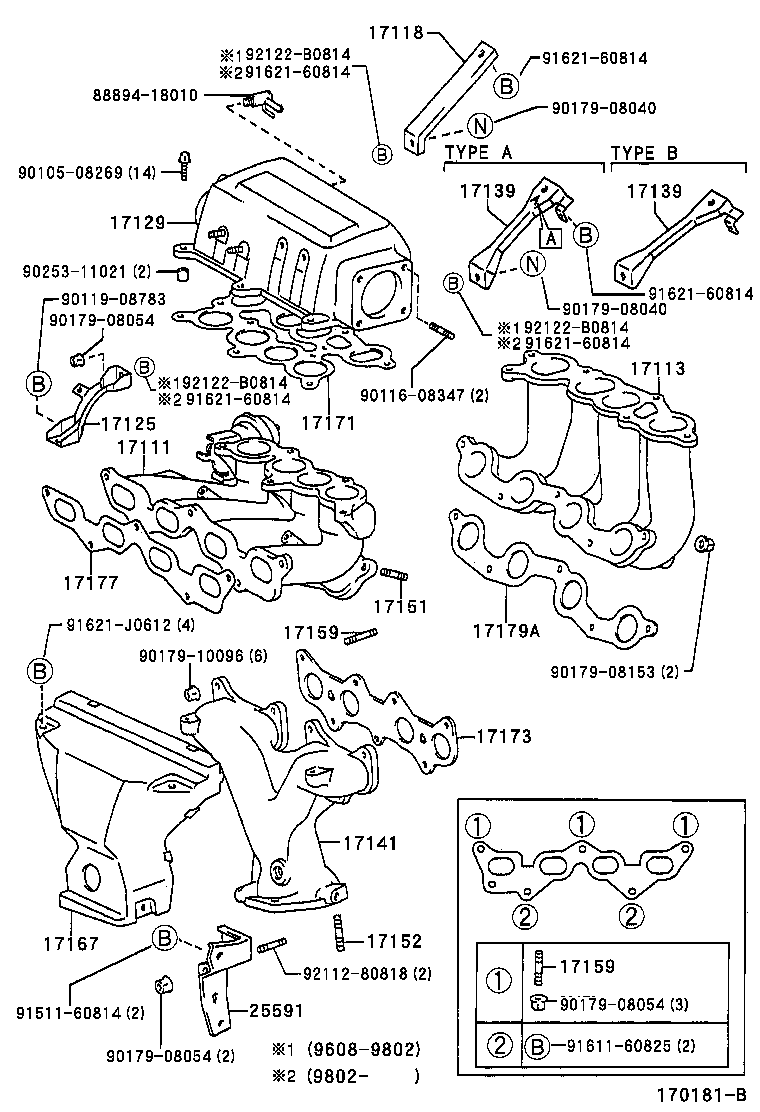

Figure 170178A 170178A 1995-08 → 1996-08 Figure 170708 170708 1996-08 → — Figure 170181B 170181B 1995-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17113 Pipe, Intake
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
