Toyota Cynos
1995-08 → 1999-07 · chassis EL5# · catalogue 144120 · Japan
Discontinued model
Data version 2000-02

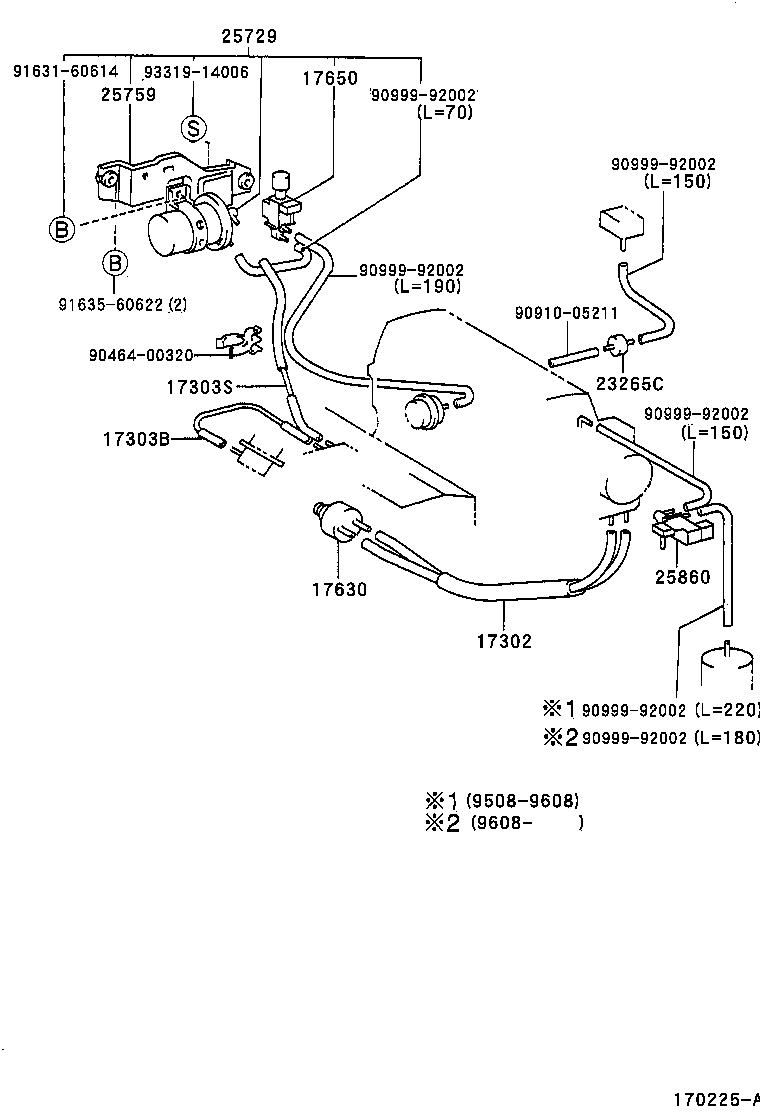

Vacuum Piping
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303S | Pipe Sub-assy, Air, NO.3 |
| 17341P | Hose, Air |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265C | Filter, Gas |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25759 | Bracket, Vacuum Surge Tank |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
