Toyota Cynos

1995-08 → 1999-07 · chassis EL5# · catalogue 144120 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

15 part groups · 3 illustrations

Illustrations

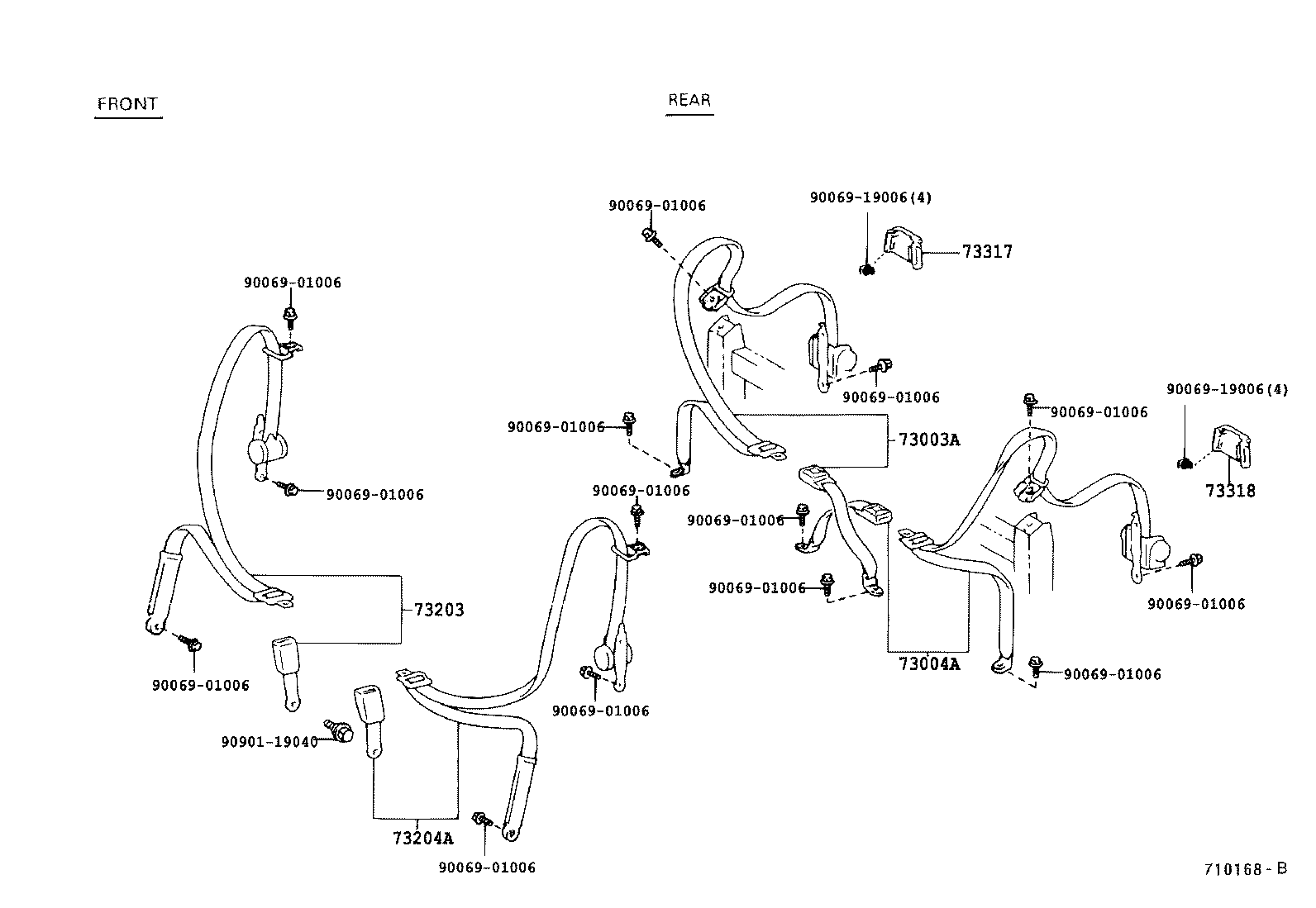

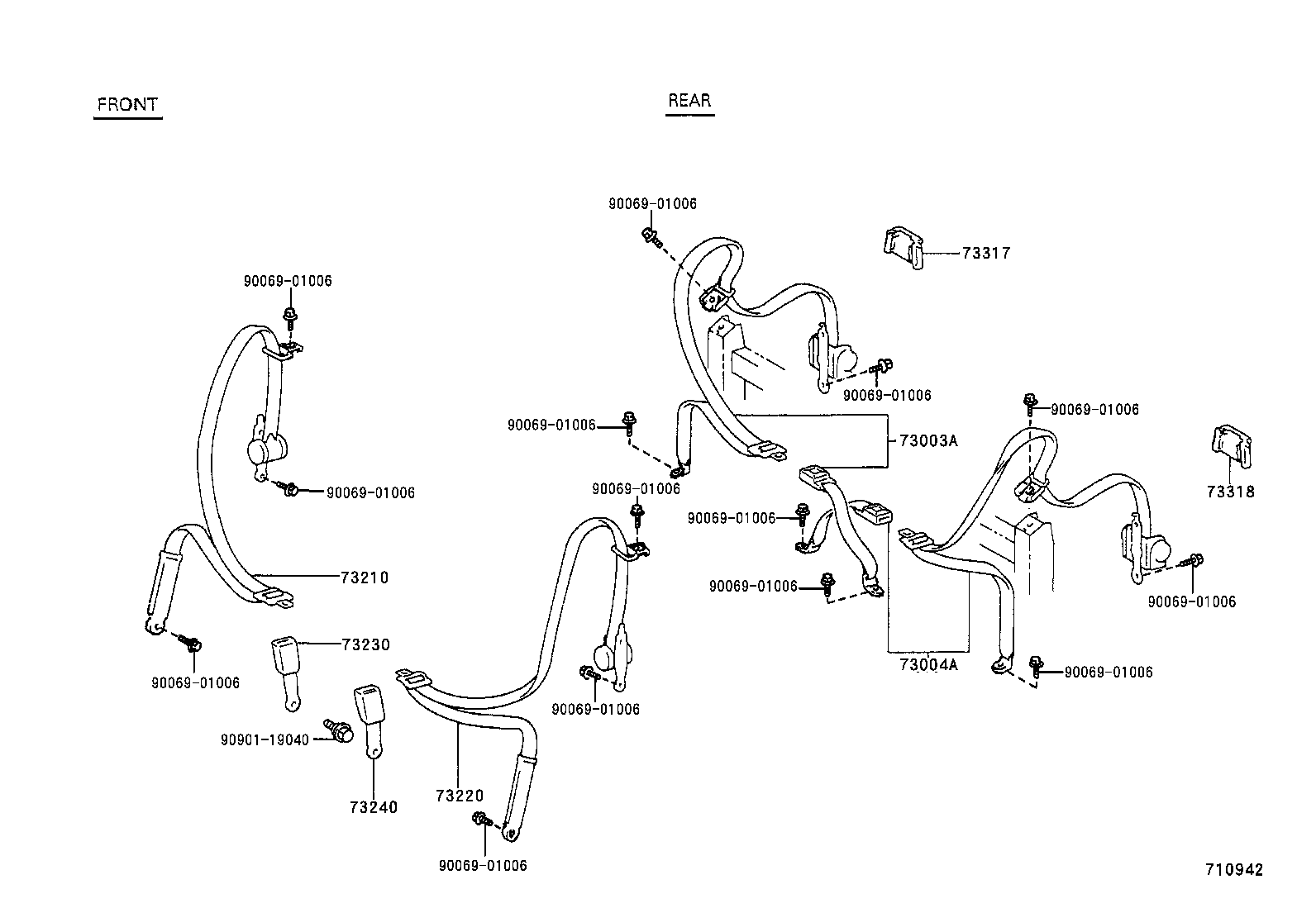

Figure 710171A 710171A 1995-08 → — Figure 710168B 710168B 1996-10 → 1998-02 Figure 710942 710942 1998-02 → —

Part groups

PNCDescription
73003A Belt Set, Rear Seat 3 Point Type, RH
73004A Belt Set, Rear Seat 3 Point Type, LH
73203 Belt Set, Front Seat, RH
73204A Belt Set, Front Seat, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73317 Cap, Rear Seat Belt, RH
73318 Cap, Rear Seat Belt, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73439 Cushion, Rear Seat Belt Retractor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
