Toyota Cynos

1995-08 → 1999-07 · chassis EL5# · catalogue 144120 · Japan

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 5 illustrations

Illustrations

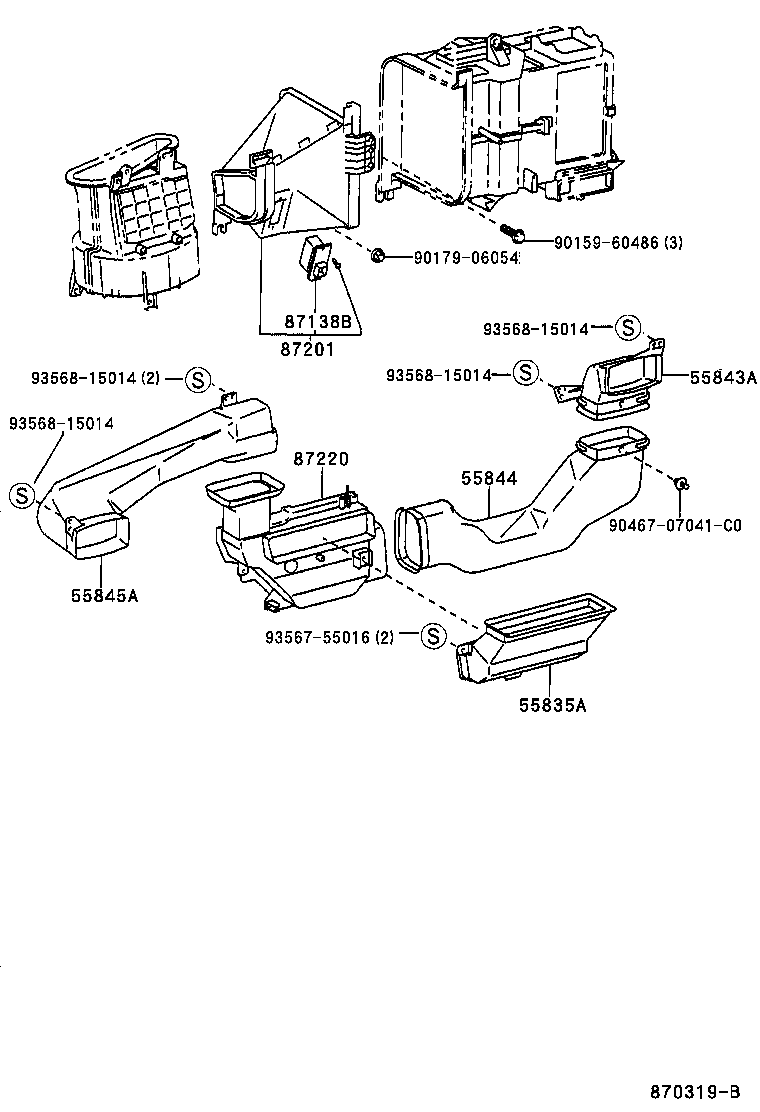

Figure 870314 870314 1995-08 → 1996-08 Figure 870377B 870377B 1996-08 → — Figure MEY149 MEY149 1995-08 → — Figure 870319B 870319B 1995-08 → — Figure 870268A 870268A 1995-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55917A Lever, Temperature Damper Control
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
87138B Resistor, Heater Blower
87201 Duct Sub-assy, Air, NO.1
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88625K Thermistor, Cooler
88669 Hose, Cooler Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
