Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01
Exhaust Pipe
14 part groups · 2 illustrations
Part groups

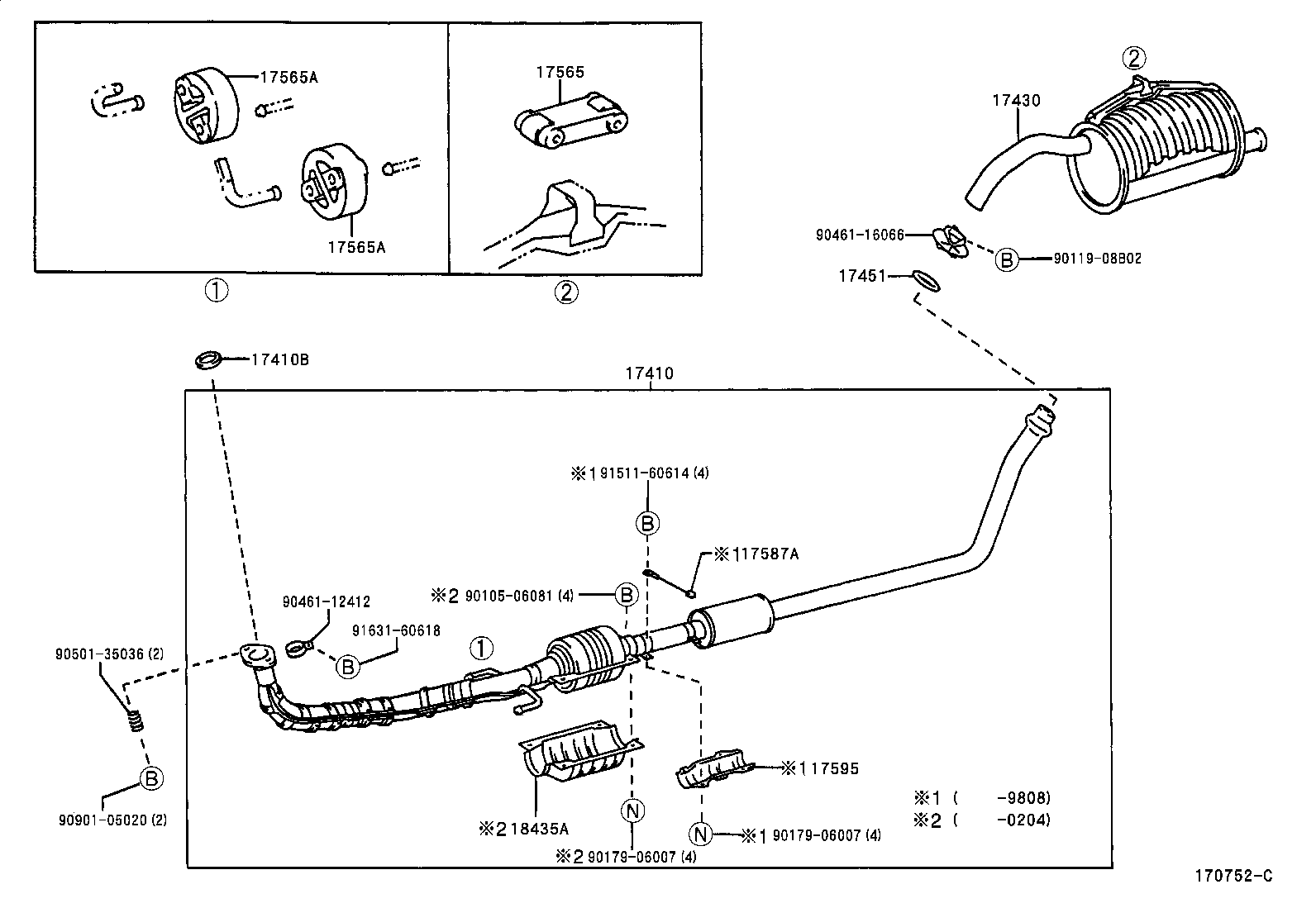

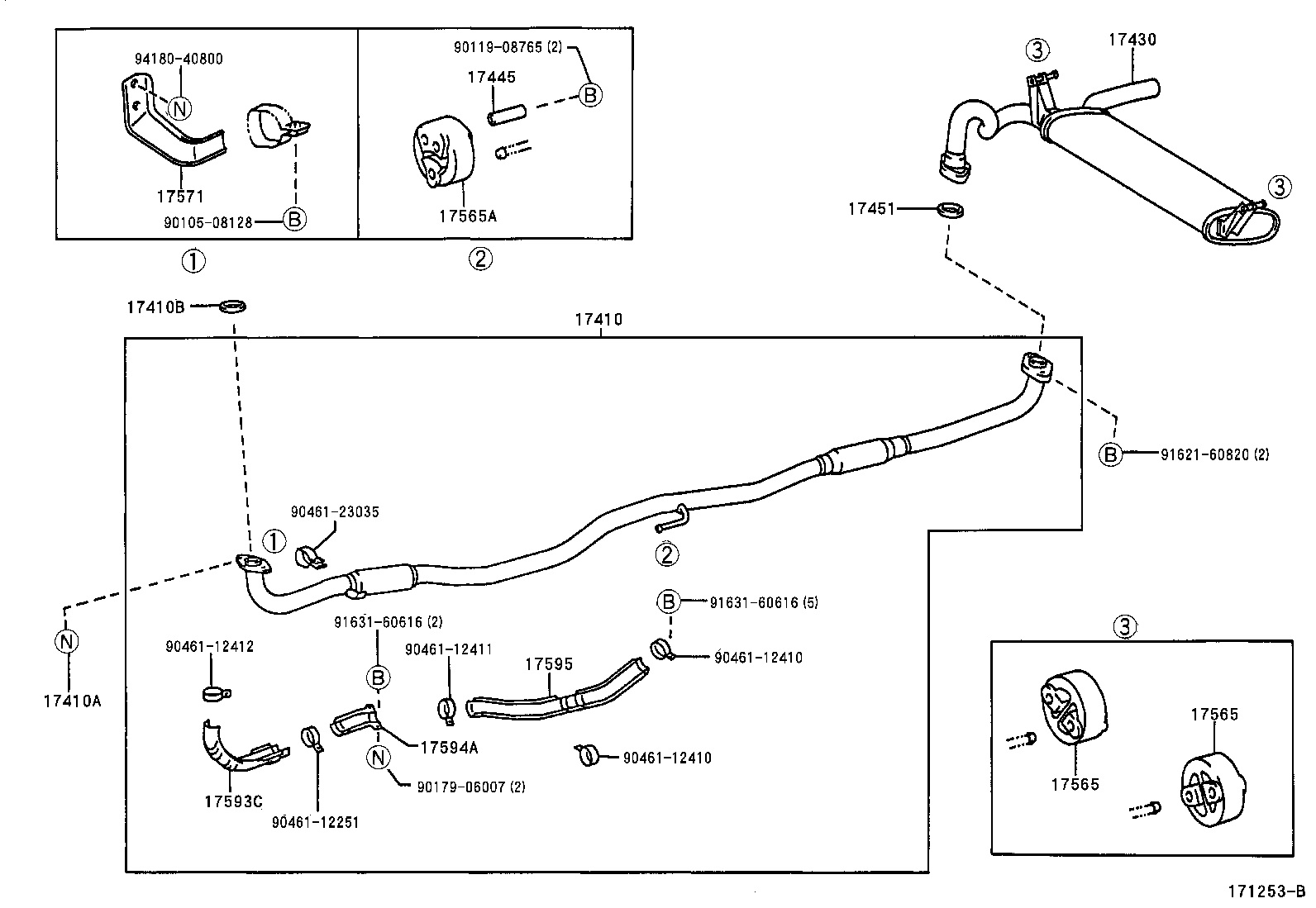

| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17445 | Collar, Exhaust Pipe |
| 17451 | Gasket, Exhaust Pipe |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17587A | Clamp Exhaust Pipe Hanger |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
