Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

11 part groups · 1 illustrations

Illustrations

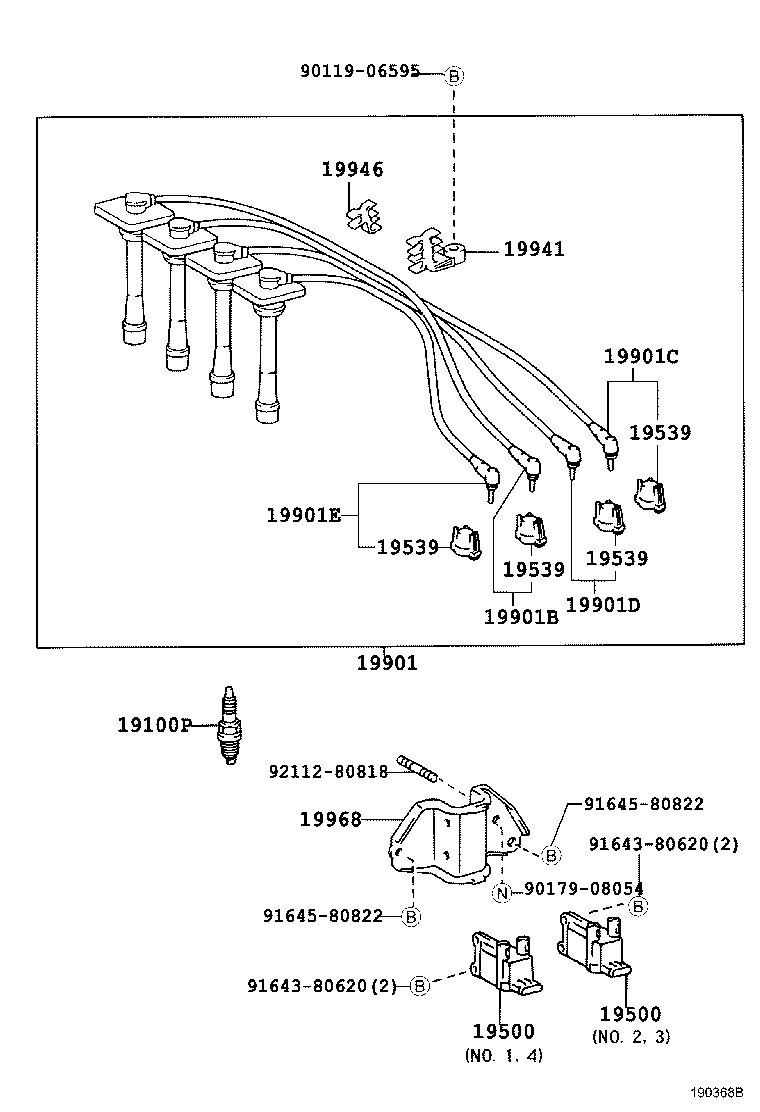

Figure 190368B 190368B 1997-05 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19539 Holder, Resistive Code, NO.4
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19946 Clamp, Resistive Cord, NO.3
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
