Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

16 part groups · 2 illustrations

Illustrations

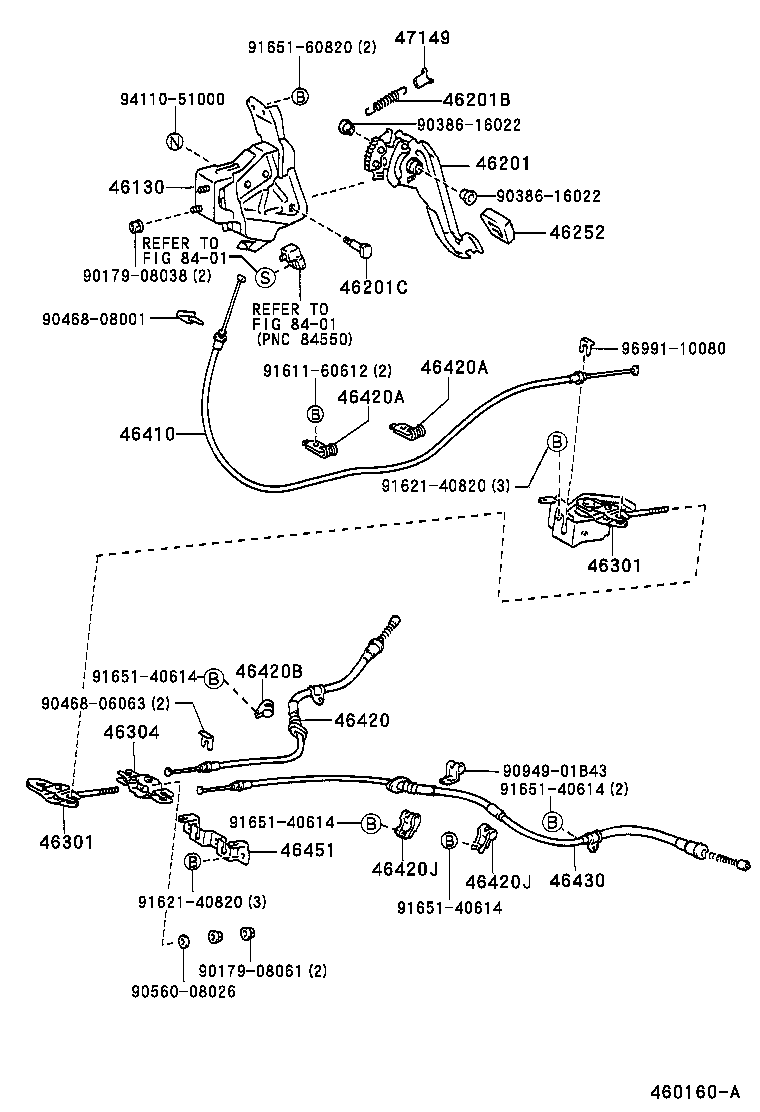

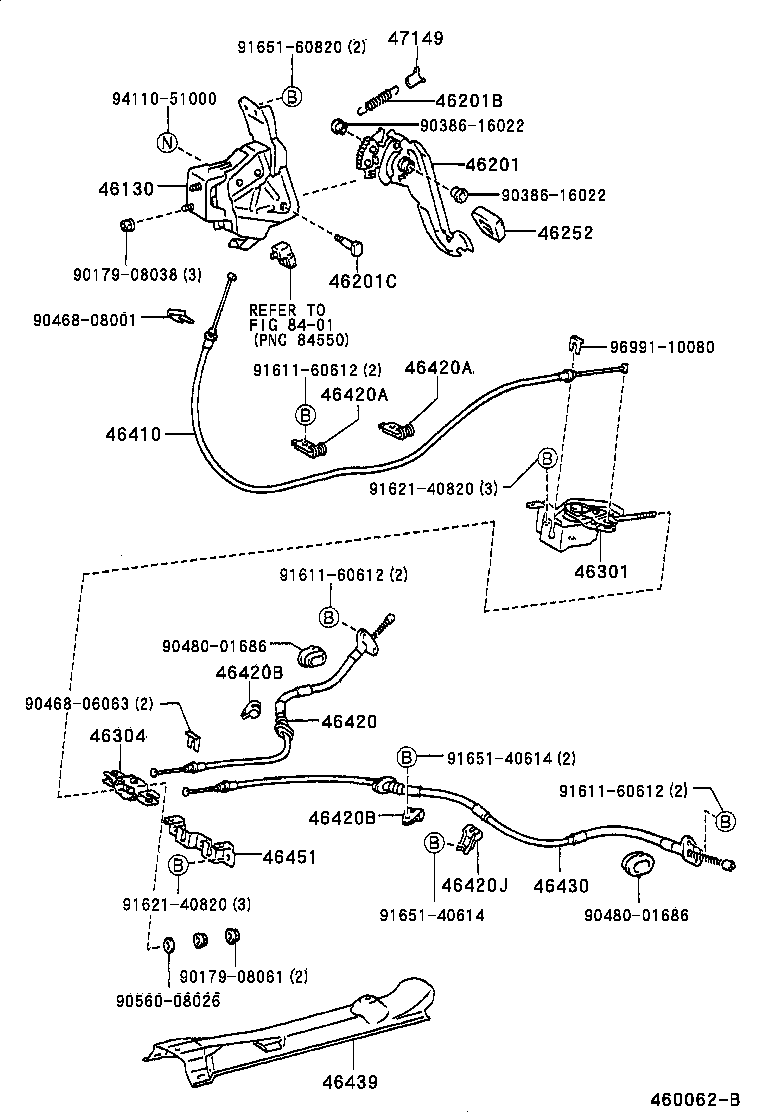

Figure 460062B 460062B 1997-05 → — Figure 460160A 460160A 1997-08 → —

Part groups

PNCDescription
46130 Bracket Assy, Parking Brake Pedal
46201 Pedal Sub-assy, Parking Brake
46201B Spring, Tension
46201C Shaft, Pedal
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46304 Equalizer Sub-assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46439 Insulator, Parking Brake Cable Heat
46451 Bracket, Cable Support
47149 Damper, Return Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
