Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

35 part groups · 2 illustrations

Illustrations

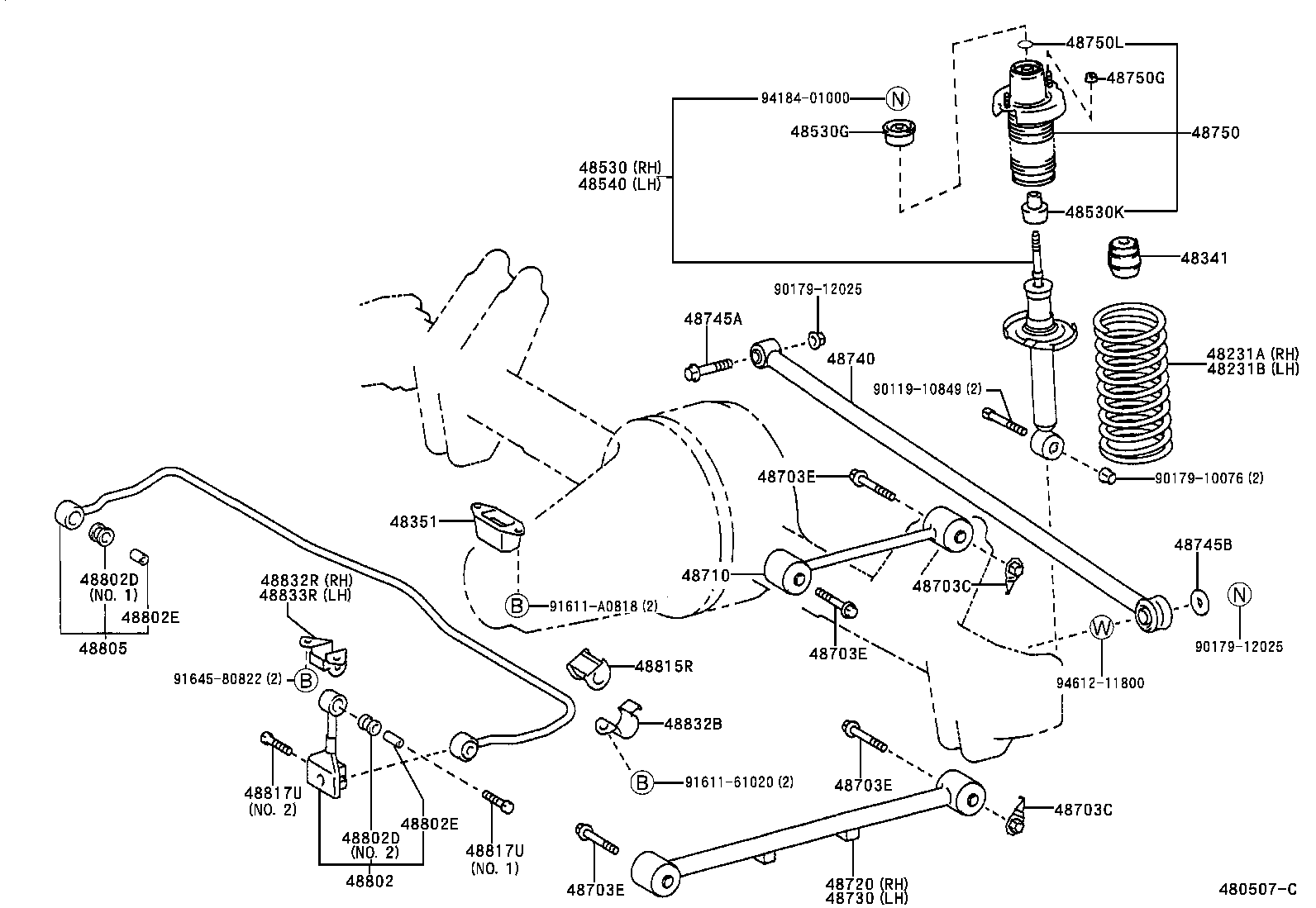

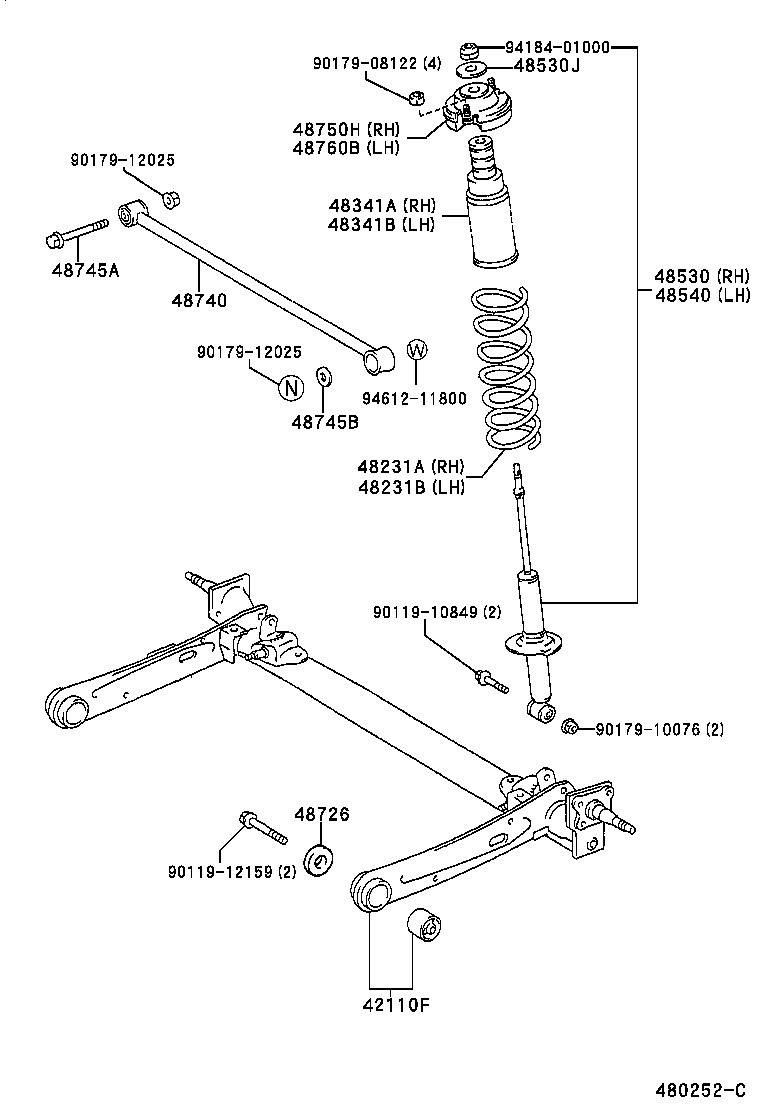

Figure 480252C 480252C 1997-05 → — Figure 480507C 480507C 1997-08 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341 Bumper, Rear Spring
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48351 Bumper, Differential Carrier
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530J Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48703C Nut(FOR REAR SUSPENSION ARM)
48703E Bolt(FOR REAR SUSPENSION ARM)
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48726 Seat, Rear Suspension Arm
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48750 Support Assy, Rear Suspension
48750G Nut(FOR REAR SUSPENSION SUPPORT)
48750H Support Assy, Rear Suspension, RH
48750L Ring, O(FOR REAR SUSPENSION SUPPORT)
48760B Support Assy Rear Suspension, LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817U Bolt(FOR REAR STABILIZER)
48832B Bracket, Rear Stabilizer Bar, NO.2
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
