Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

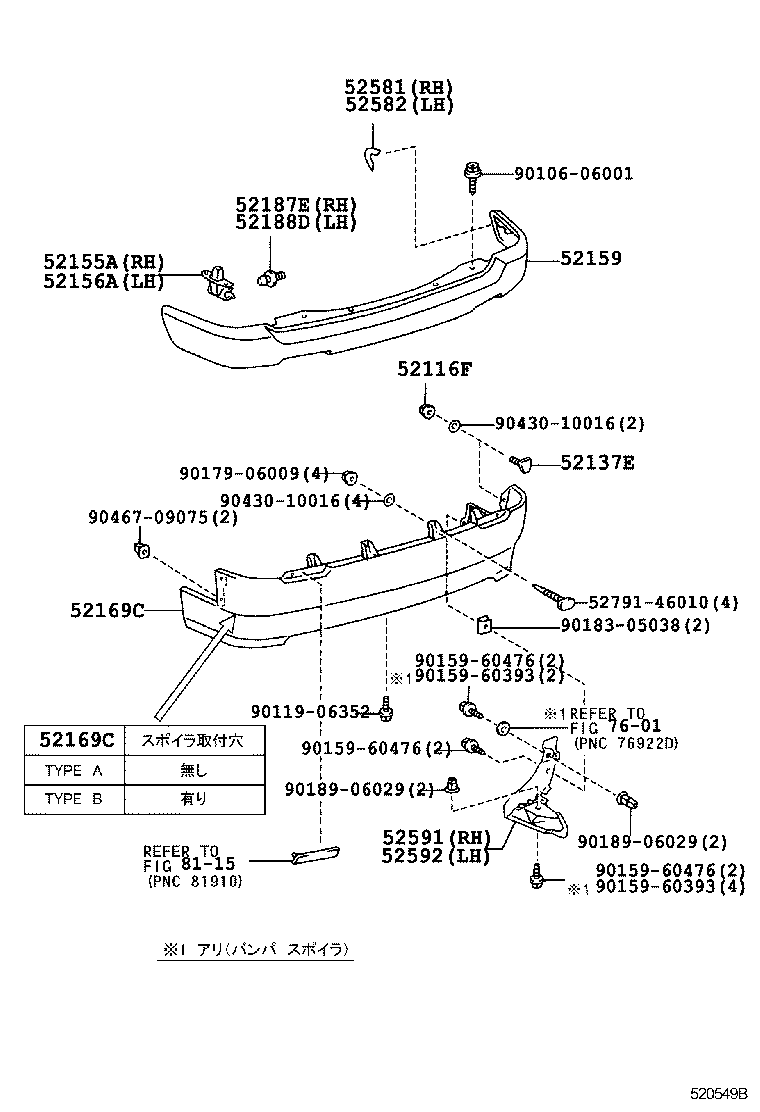

Figure 520159B 520159B 1997-05 → 1999-07 Figure 520549B 520549B 1999-07 → —

Part groups

PNCDescription
52116F Retainer, Rear Bumper
52137E Plate, Rear Bumper Bracket, NO.1
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52169C Cover, Rear Bumper, Lower
52187E Guide, Rear Bumper Location, RH
52188D Guide, Rear Bumper Location, LH
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
