Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 1 illustrations

Illustrations

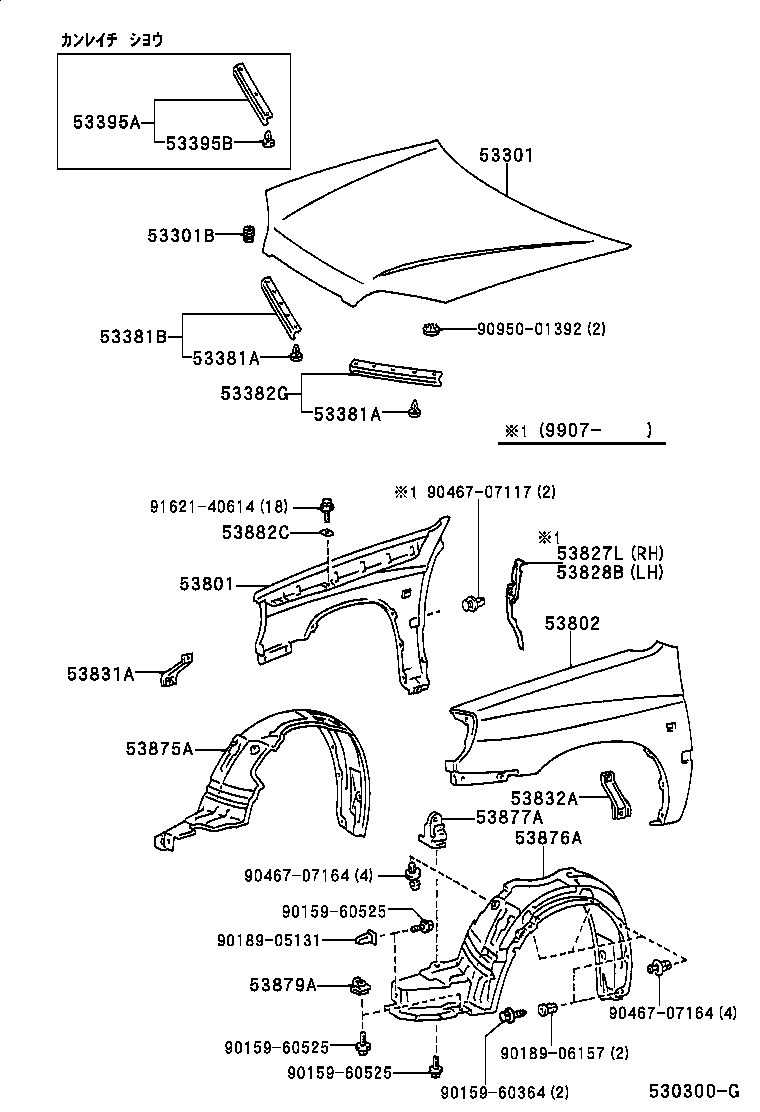

Figure 530300G 530300G 1997-05 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381B Seal, Hood TO Radiator Support, RH
53382G Seal, Hood TO Radiator Support, LH
53395A Seal, Hood TO Front End Panel, NO.1
53395B Clip(FOR HOOD TO FRONT END PANEL SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53831A Panel, Front Fender Side, Upper RH
53832A Panel, Front Fender Side, Upper LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53877A Bracket, Front Fender Splash Shield
53879A Retainer, Front Fender Liner
53882C Seal, Front Fender Main
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
