Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 2 illustrations

Illustrations

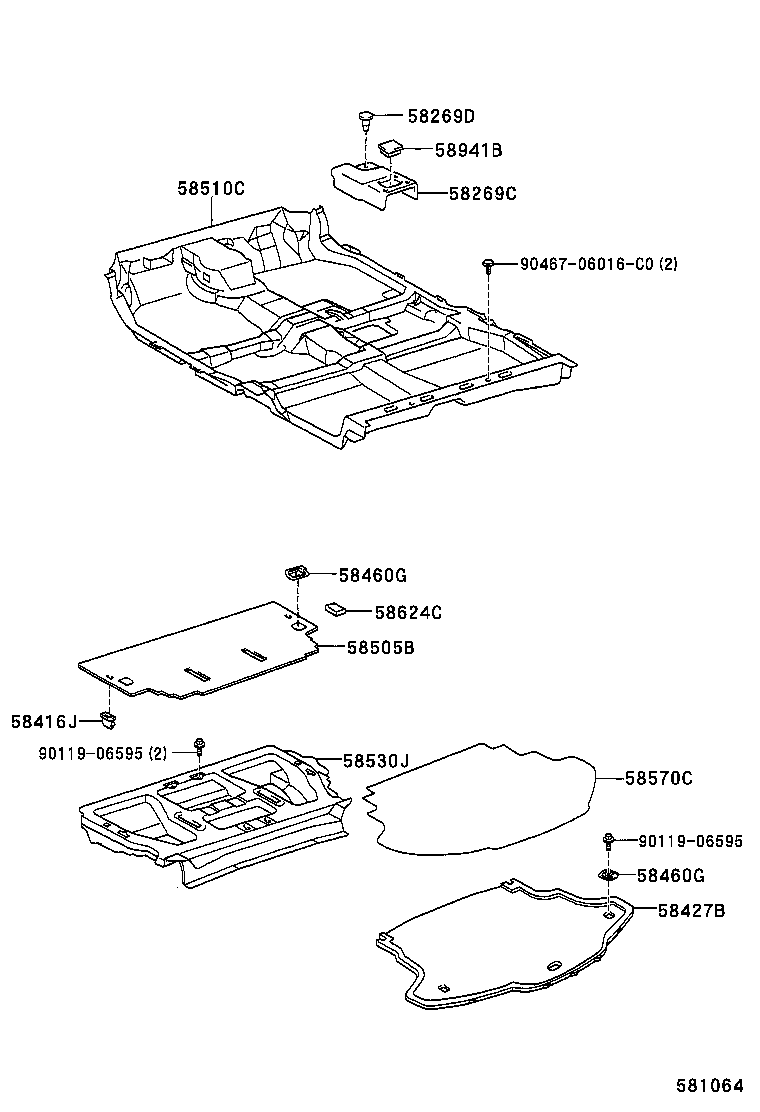

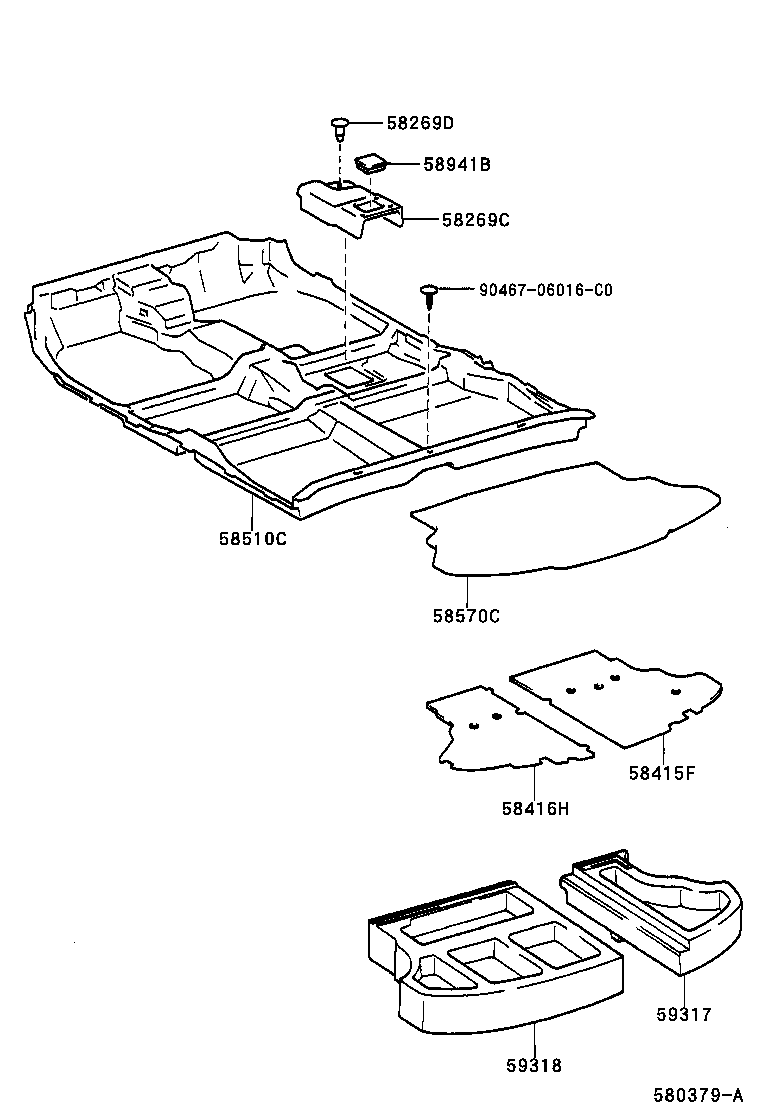

Figure 580379A 580379A 1997-05 → — Figure 581064 581064 1999-07 → —

Part groups

PNCDescription
58269C Cover, Parking Brake Cable
58269D Clip, Parking Brake Cable Cover
58415F Board, Rear Floor, NO.1
58416H Board, Rear Floor, NO.2
58416J Bracket, Deck Board, NO.1
58427B Spacer, Rear Floor Board
58460G Striker Assy, Luggage Hold Belt
58505B Board Sub-assy, Front Floor, Rear
58510C Carpet Assy, Front Floor, Front
58530J Carpet Assy, Floor, Center
58570C Carpet Assy, Rear Floor
58624C Pad, Center Floor Silencer, RH
58941B Cover, Parking Brake Hole
59317 Panel, Rear Floor Box Side, RH
59318 Panel, Rear Floor Box Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
