Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01

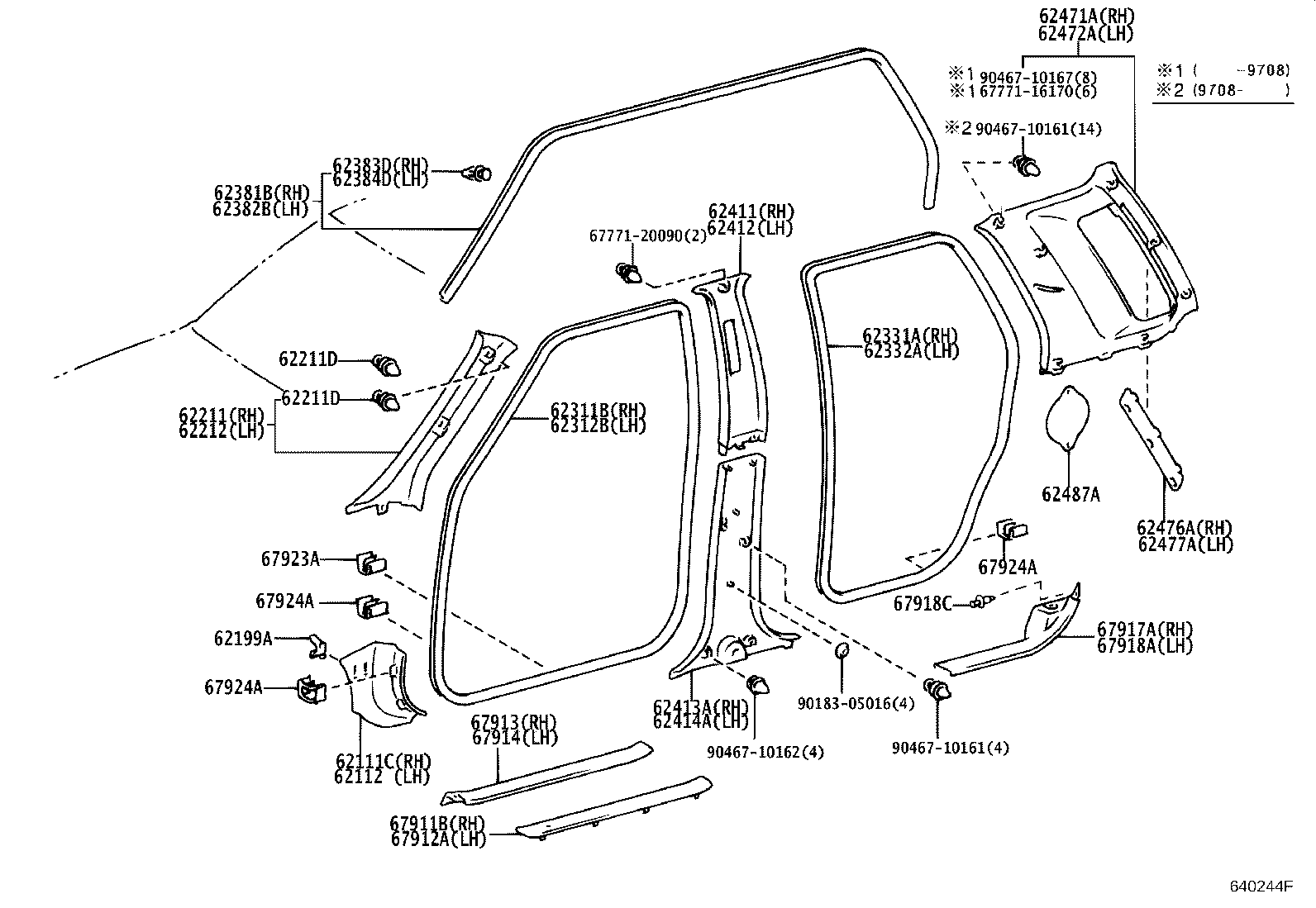

Inside Trim Board & Door Opening Trim Moulding
32 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62199A | Holder, Fusee |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62383D | Retainer, Roof Side Rail, RH |
| 62384D | Retainer, Roof Side Rail, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62476A | Cap, Roof Side Inner Garnish, RH |
| 62477A | Cap, Roof Side Inner Garnish, LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
