Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01
Roof Headlining & Silencer Pad
13 part groups · 1 illustrations

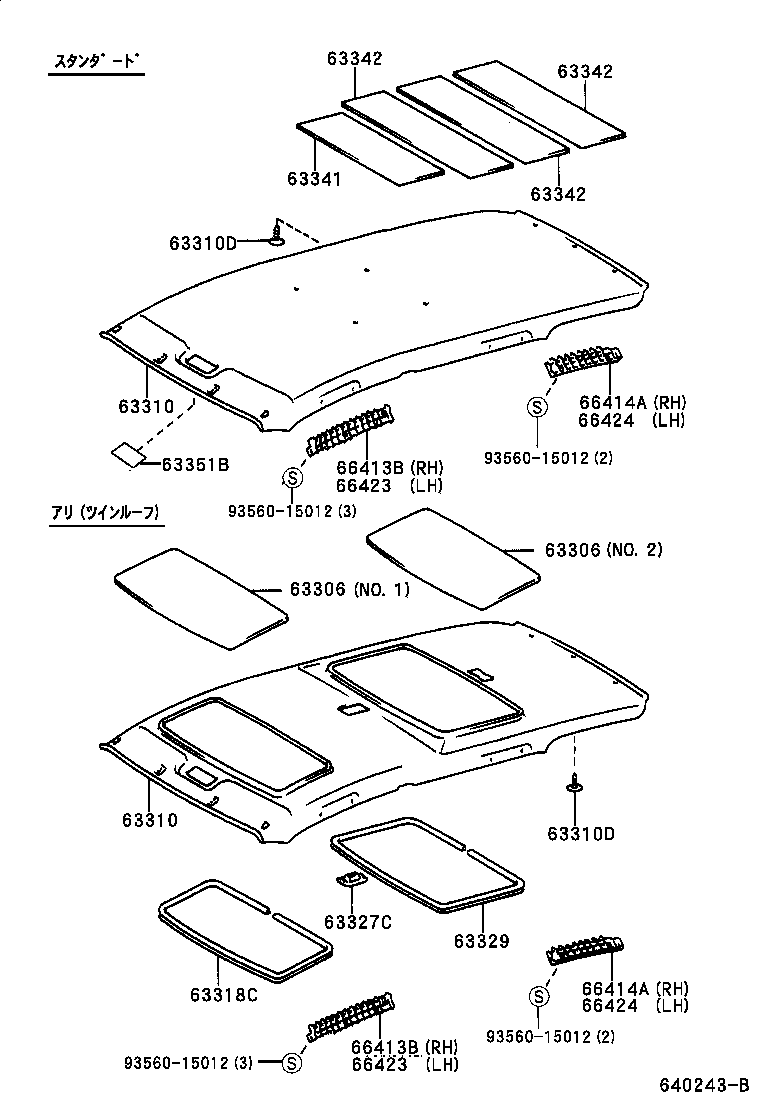

Illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63327C | Garnish, Sun Roof Switch |
| 63329 | Moulding, Sun Roof Opening Trim, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351B | Pad, Roof Headlining |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
