Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01

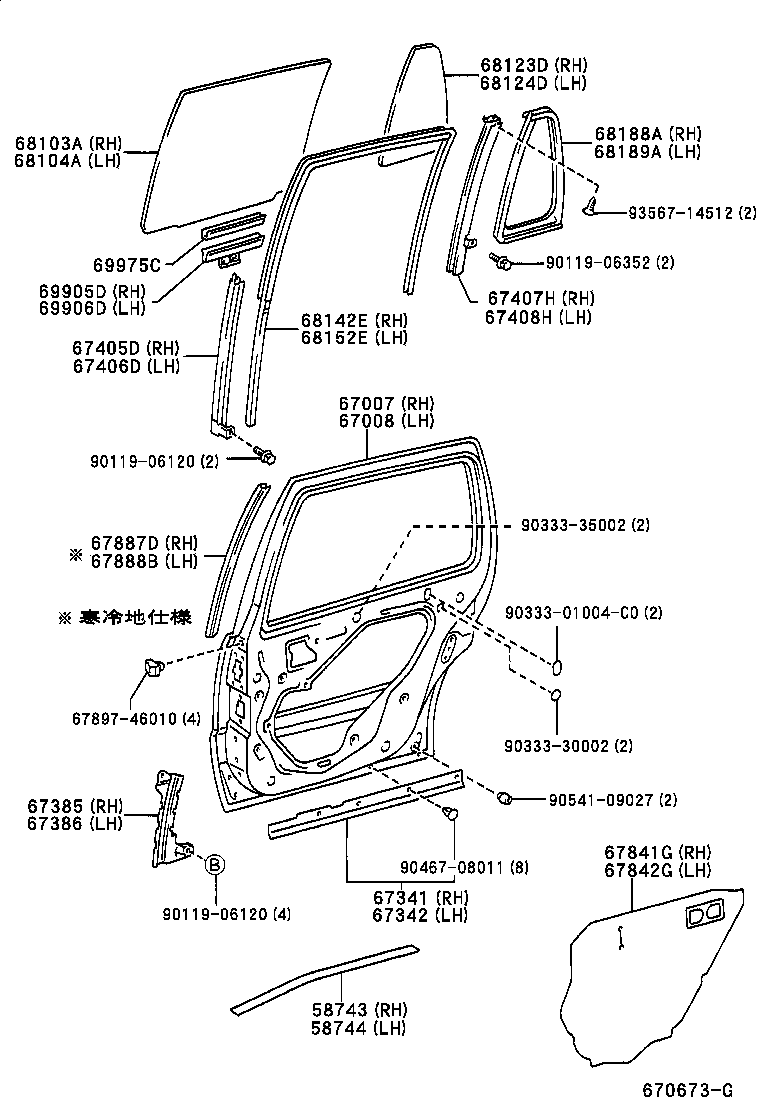

Rear Door Panel & Glass
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58743 | Protecter, Slide Door Panel, RH |
| 58744 | Protecter, Slide Door Panel, LH |
| 67007 | Panel Sub-assy, Slide Door, RH |
| 67008 | Panel Sub-assy, Slide Door, LH |
| 67341 | Weatherstrip, Slide Door, RH |
| 67342 | Weatherstrip, Slide Door, LH |
| 67385 | Bracket, Slide Door Inside Panel, NO.3 RH |
| 67386 | Bracket, Slide Door Inside Panel, NO.3 LH |
| 67405D | Guide Sub-assy, Slide Door Window, Front RH |
| 67406D | Guide Sub-assy, Slide Door Window, Front LH |
| 67407H | Bar Sub-assy, Slide Door Window Division, RH |
| 67408H | Bar Sub-assy, Slide Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67603F | Retainer, Rear Door Trim, NO.2 RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67604E | Retainer, Rear Door Trim, NO.2 LH |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 68103A | Glass Sub-assy, Slide Door, RH |
| 68104A | Glass Sub-assy, Slide Door, LH |
| 68123D | Glass, Slide Door Quarter Window, RH |
| 68124D | Glass, Slide Door Quarter Window, LH |
| 68142E | Run, Slide Door Glass, RH |
| 68152E | Run, Slide Door Glass, LH |
| 68173C | Weatherstrip, Slide Door Glass, Inner RH |
| 68174C | Weatherstrip, Slide Door Glass, Inner LH |
| 68188A | Weatherstrip, Slide Door Quarter Window, RH |
| 68189A | Weatherstrip, Slide Door Quarter Window, LH |
| 69905D | Channel Sub-assy, Slide Door Glass, RH |
| 69906D | Channel Sub-assy, Slide Door Glass, LH |
| 69975C | Filler, Slide Door Glass Channel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
