Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

17 part groups · 2 illustrations

Illustrations

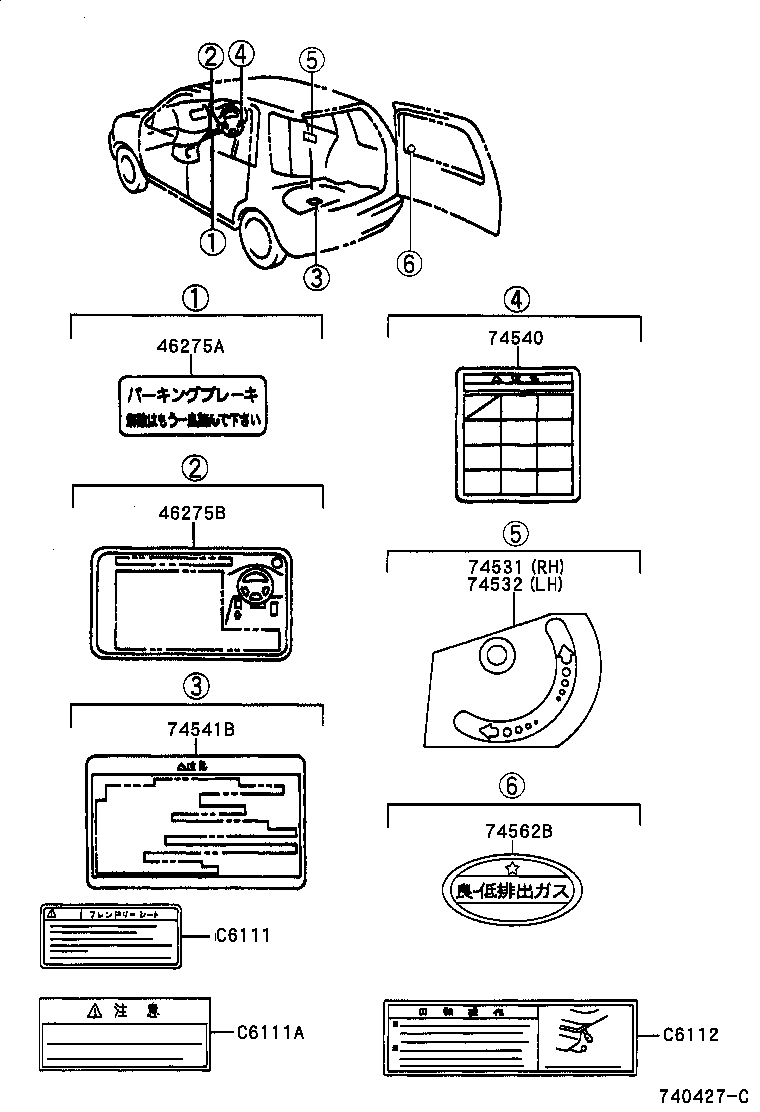

Figure 740225D 740225D 1997-05 → — Figure 740427C 740427C 1997-05 → —

Part groups

PNCDescription
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
74529 Plate, Child Proof OR Child Protector Lock Caution
74531 Plate, Door Inside Handle Caution, RH
74532 Plate, Door Inside Handle Caution, LH
74540 Plate, Fuse Block Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74562B Label, Emission Information
74563 Plate, Emission Control Device Identification
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6112 Label, Safety Information, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
