Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

25 part groups · 1 illustrations

Illustrations

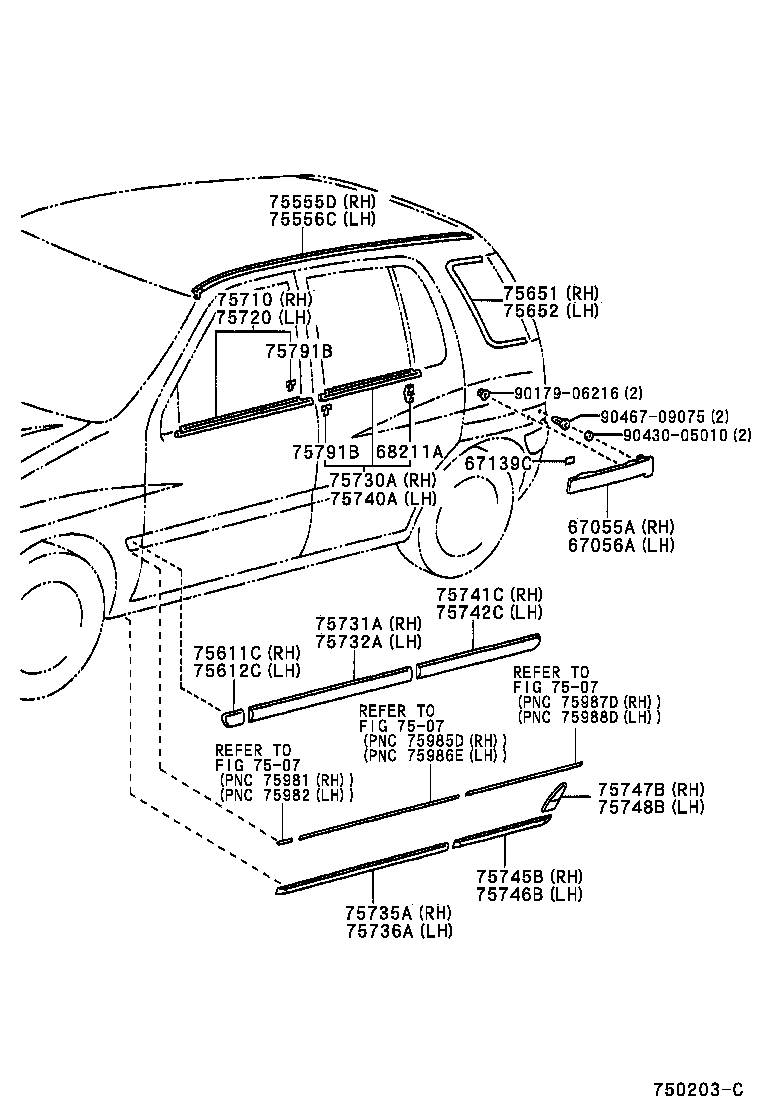

Figure 750203C 750203C 1997-05 → —

Part groups

PNCDescription
67055A Cover Sub-assy, Slide Door Panel, Front RH
67056A Cover Sub-assy, Slide Door Panel, Front LH
67139C Pad, Slide Door Outer Reinforcementd
68211A Clip, Door Belt Moulding
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730A Moulding Assy, Slide Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75735A Moulding, Front Door Outside, Lower RH
75736A Moulding, Front Door Outside, Lower LH
75740A Moulding Assy, Slide Door Belt, LH
75741C Moulding, Slide Door, Outside RH
75742C Moulding, Slide Door, Outside LH
75745B Moulding, Slide Door Outside, Lower RH
75746B Moulding, Slide Door Outside, Lower LH
75747B Moulding, Slide Door Outside, Lower Rear RH
75748B Moulding, Slide Door Outside, Lower Rear LH
75791B Clip, Belt Moulding Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
