Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

30 part groups · 3 illustrations

Illustrations

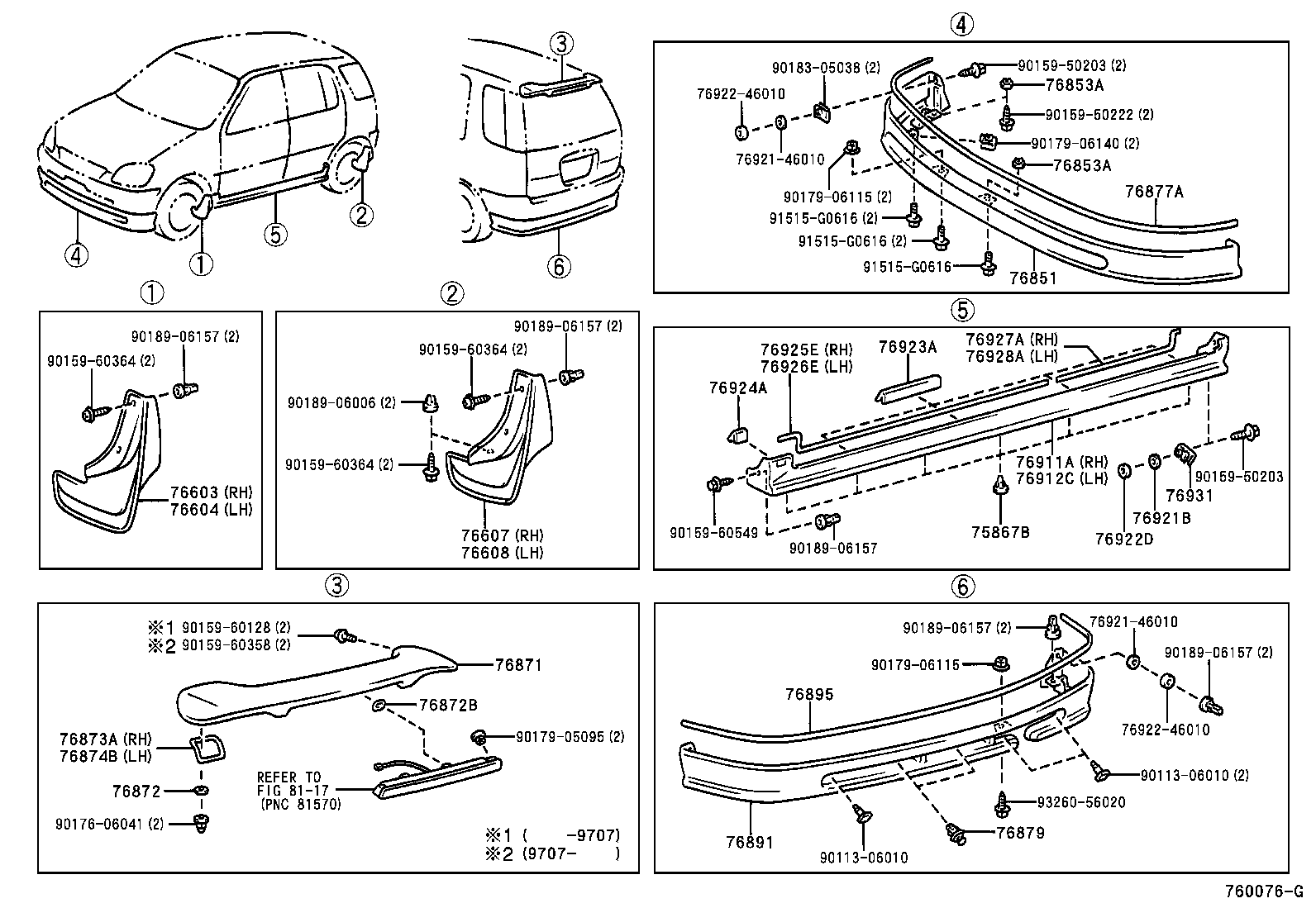

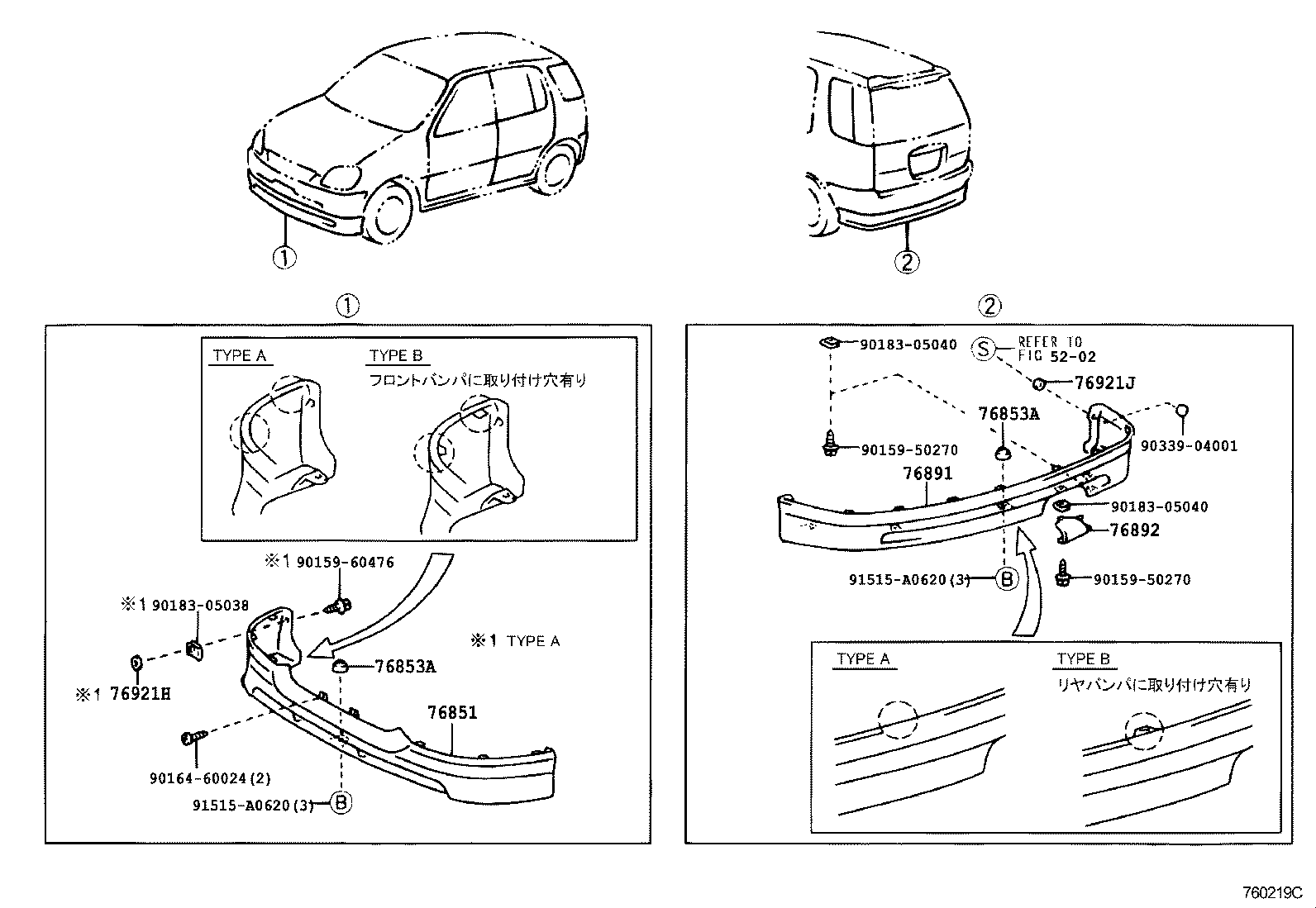

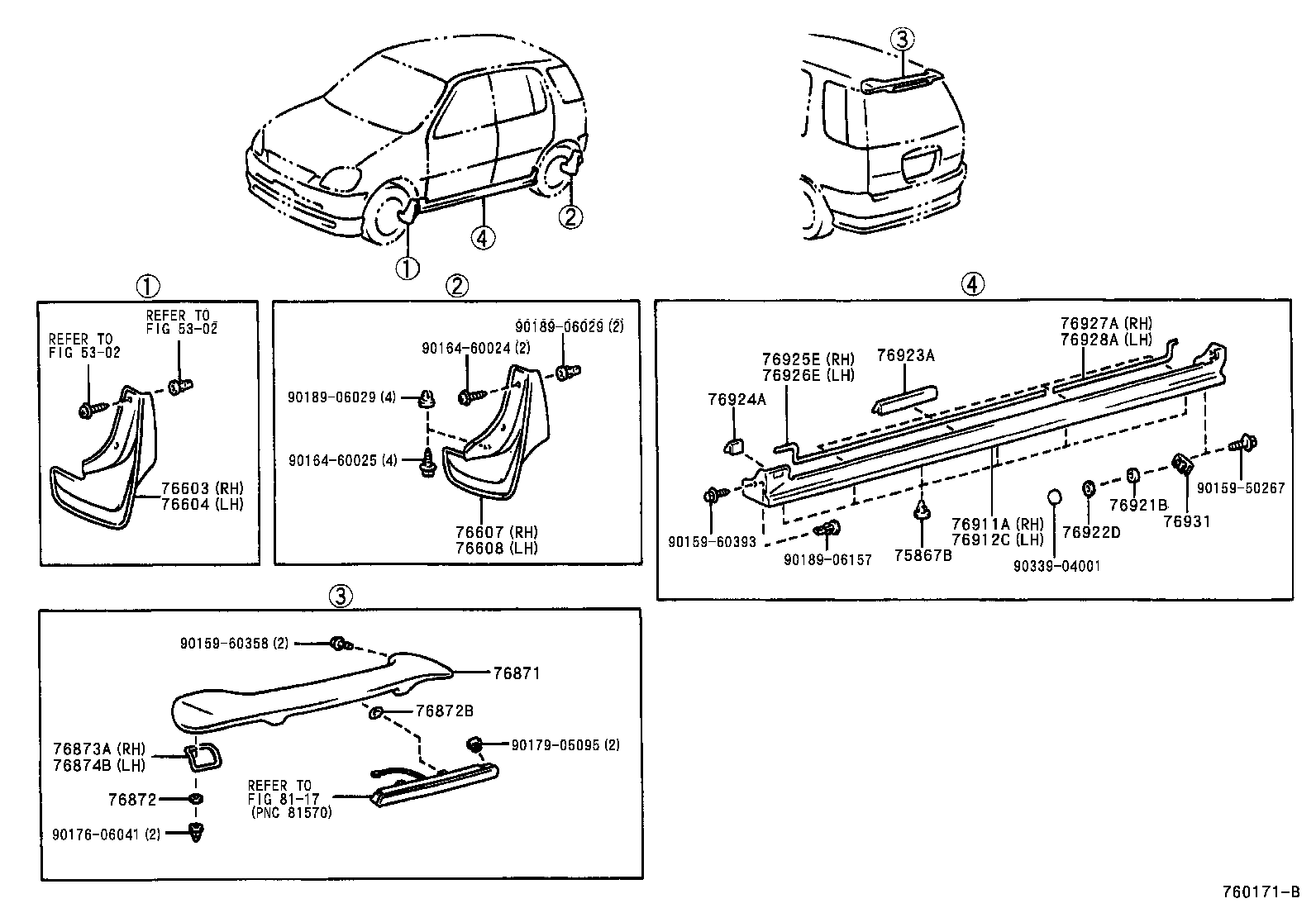

Figure 760076G 760076G 1997-05 → 1999-07 Figure 760219C 760219C 1999-07 → — Figure 760171B 760171B 1999-07 → —

Part groups

PNCDescription
75867B Clip, Rocker Panel Moulding
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851 Cover, Front Spoiler
76853A Retainer, Front Spoiler, Upper NO.1
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76877A Protector, Front Spoiler
76879 Clip, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76895 Protector, Rear Spoiler, NO.5
76911A Mudguard, Fender Panel, RH
76912C Mudguard, Fender Panel, LH
76921B Protector, Side Mudguard, NO.1
76921H Protector, Front Spoiler, NO.1
76921J Protector, Rear Spoiler, NO.1
76922D Protector, Side Mudguard, NO.2
76923A Retainer, Side Mudguard
76924A Retainer, Side Mudguard, NO.2
76925E Protector, Side Mudguard, Front RH
76926E Protector, Side Mudguard, Front LH
76927A Protector, Side Mudguard, Rear RH
76928A Protector, Side Mudguard, Rear LH
76931 Retainer, Side Mudguard, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
