Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 7 illustrations

Illustrations

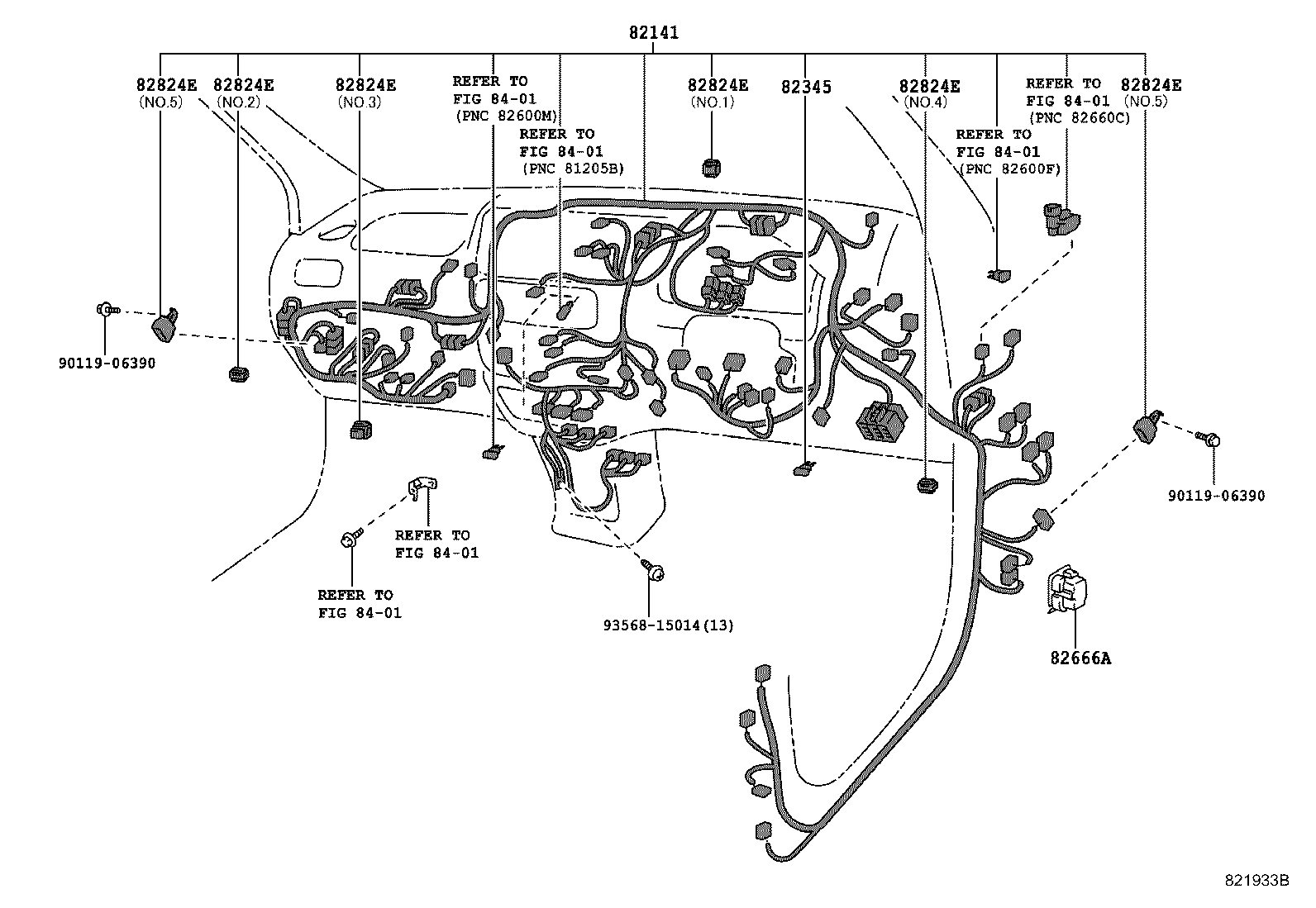

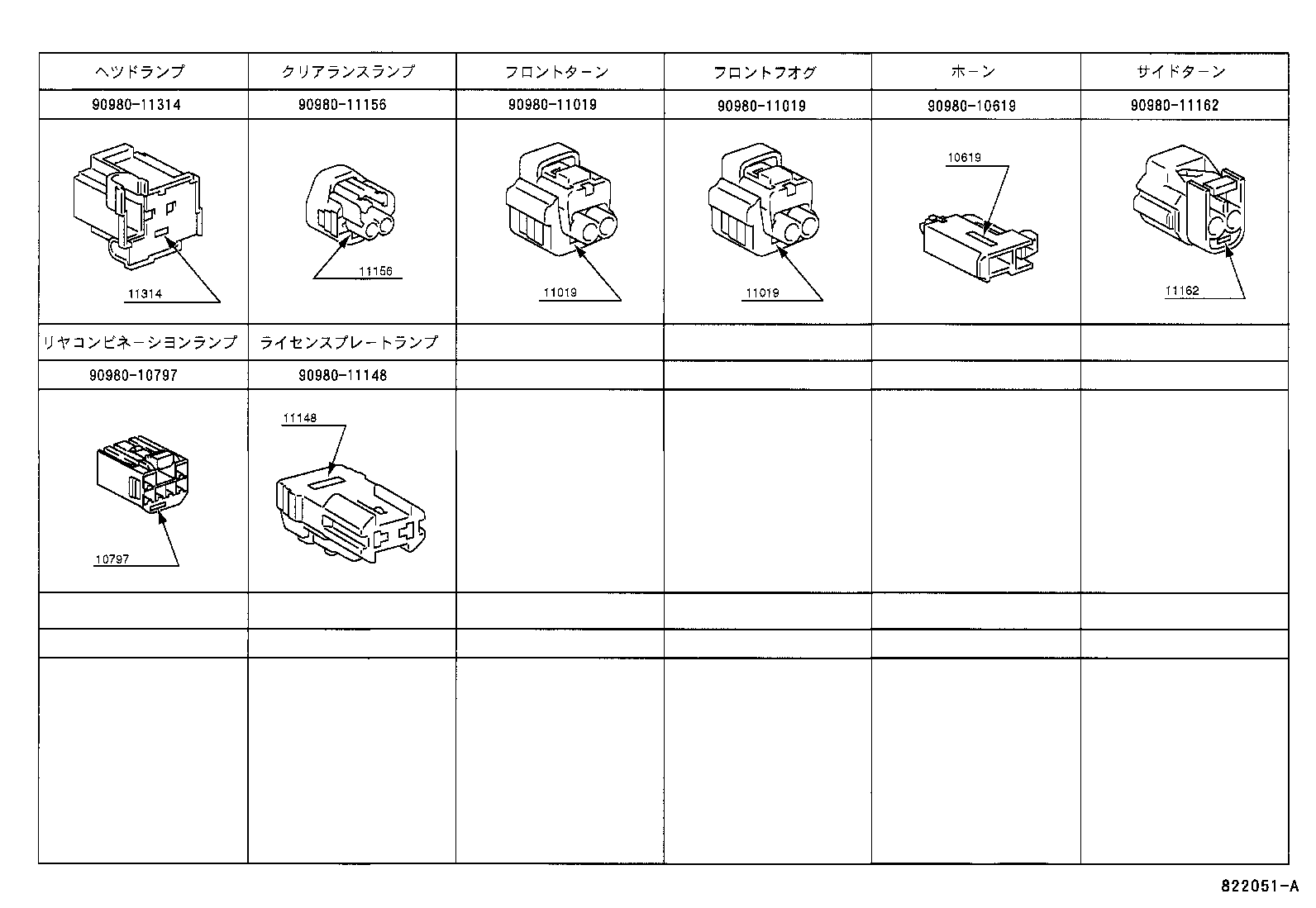

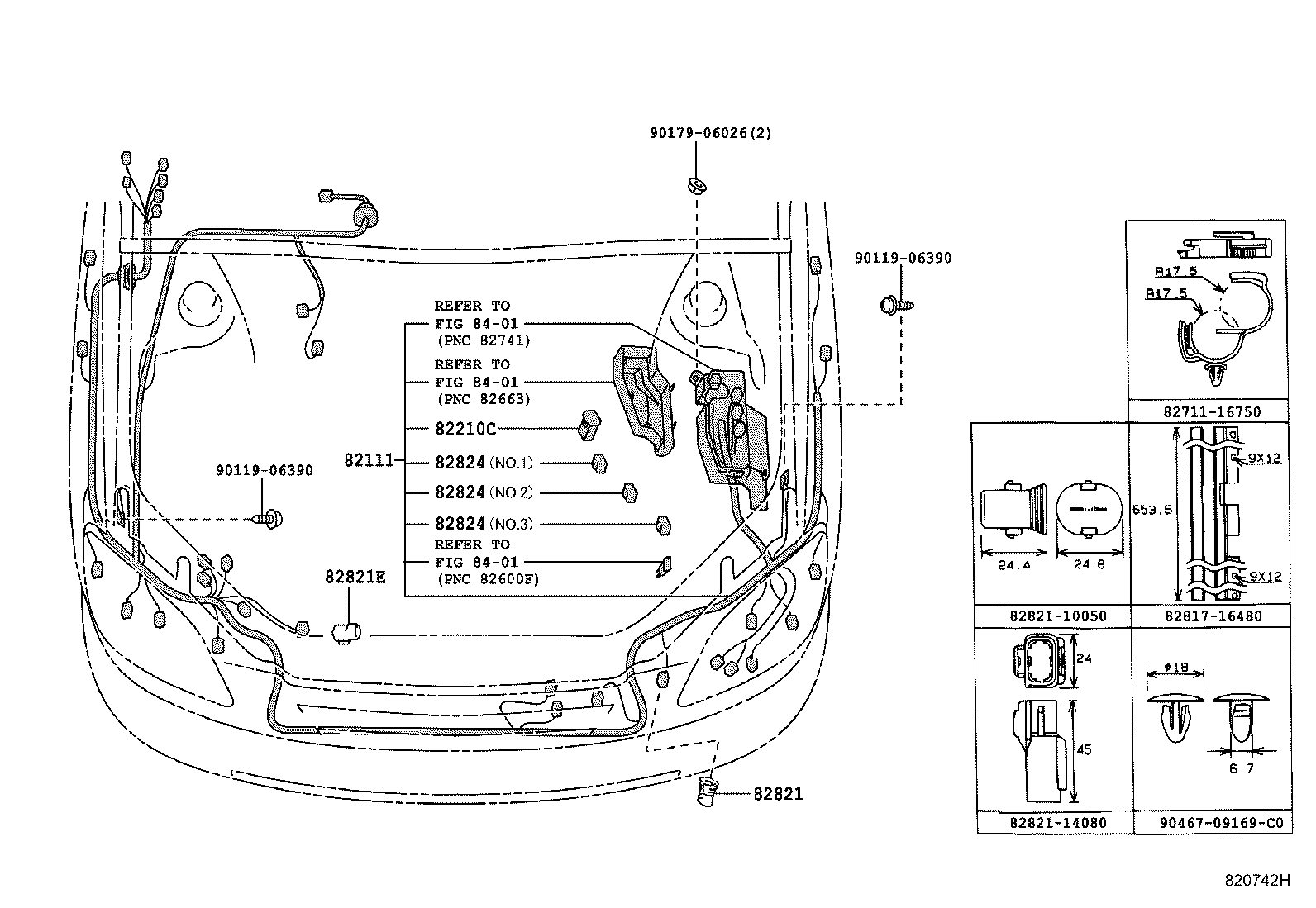

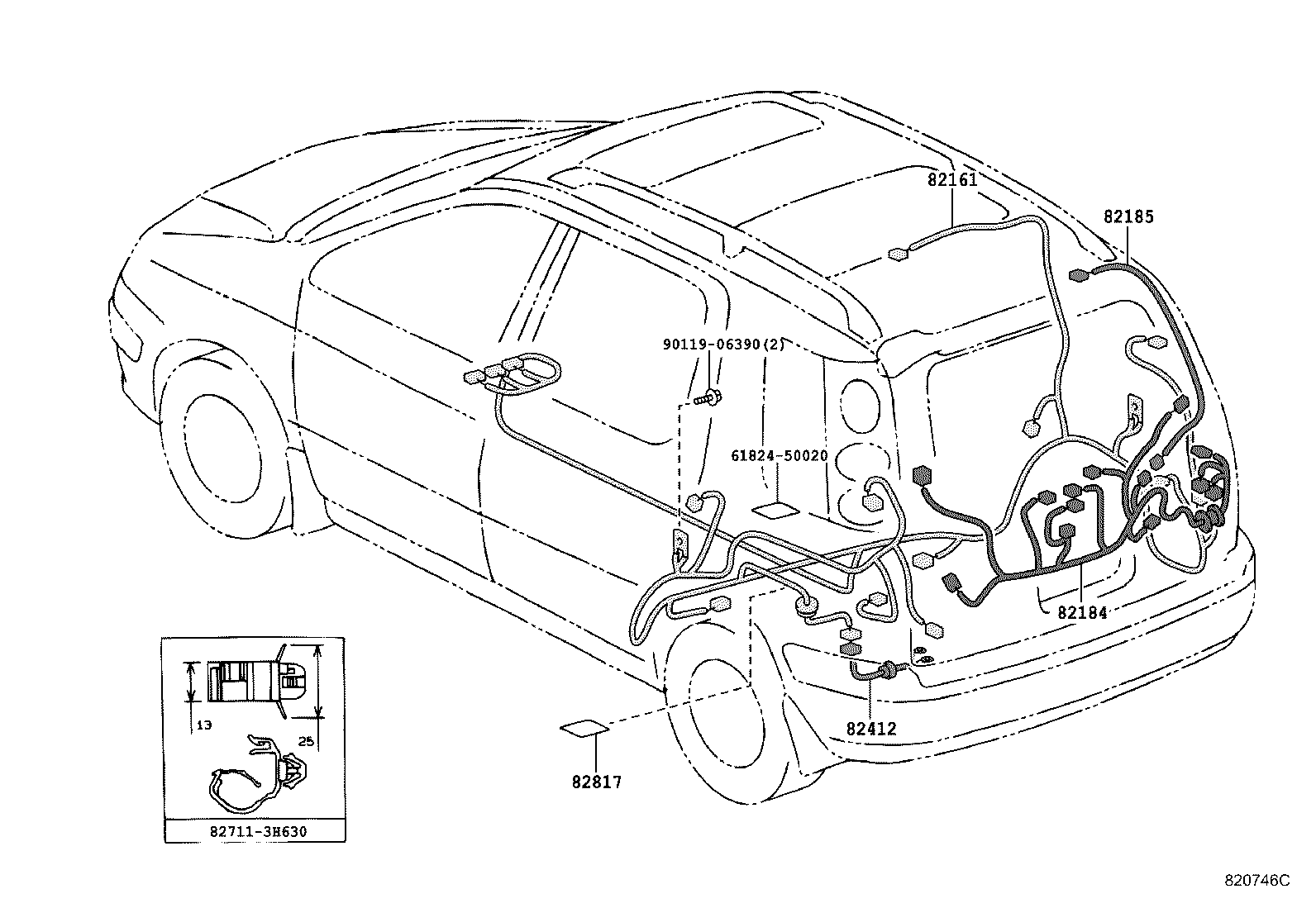

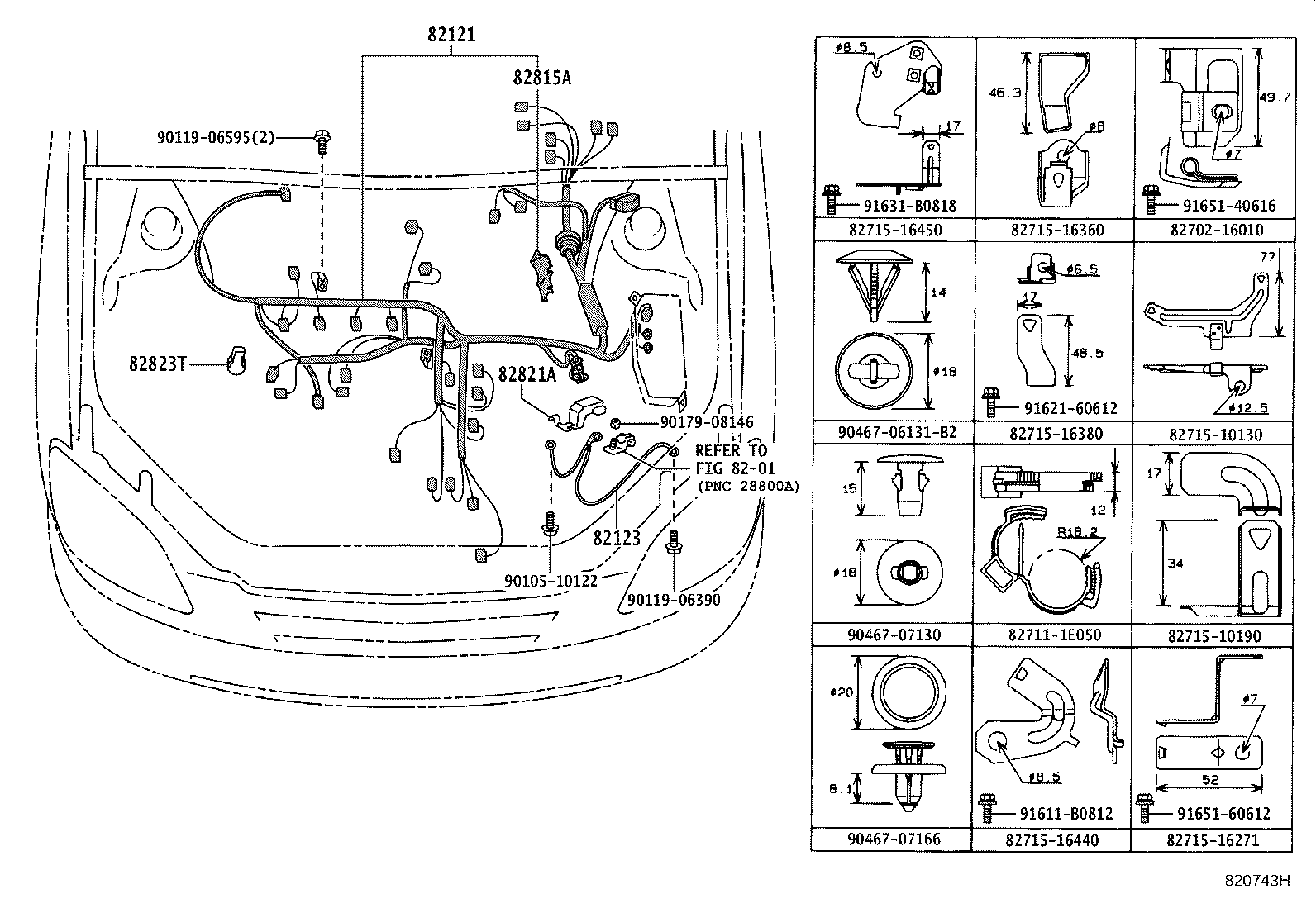

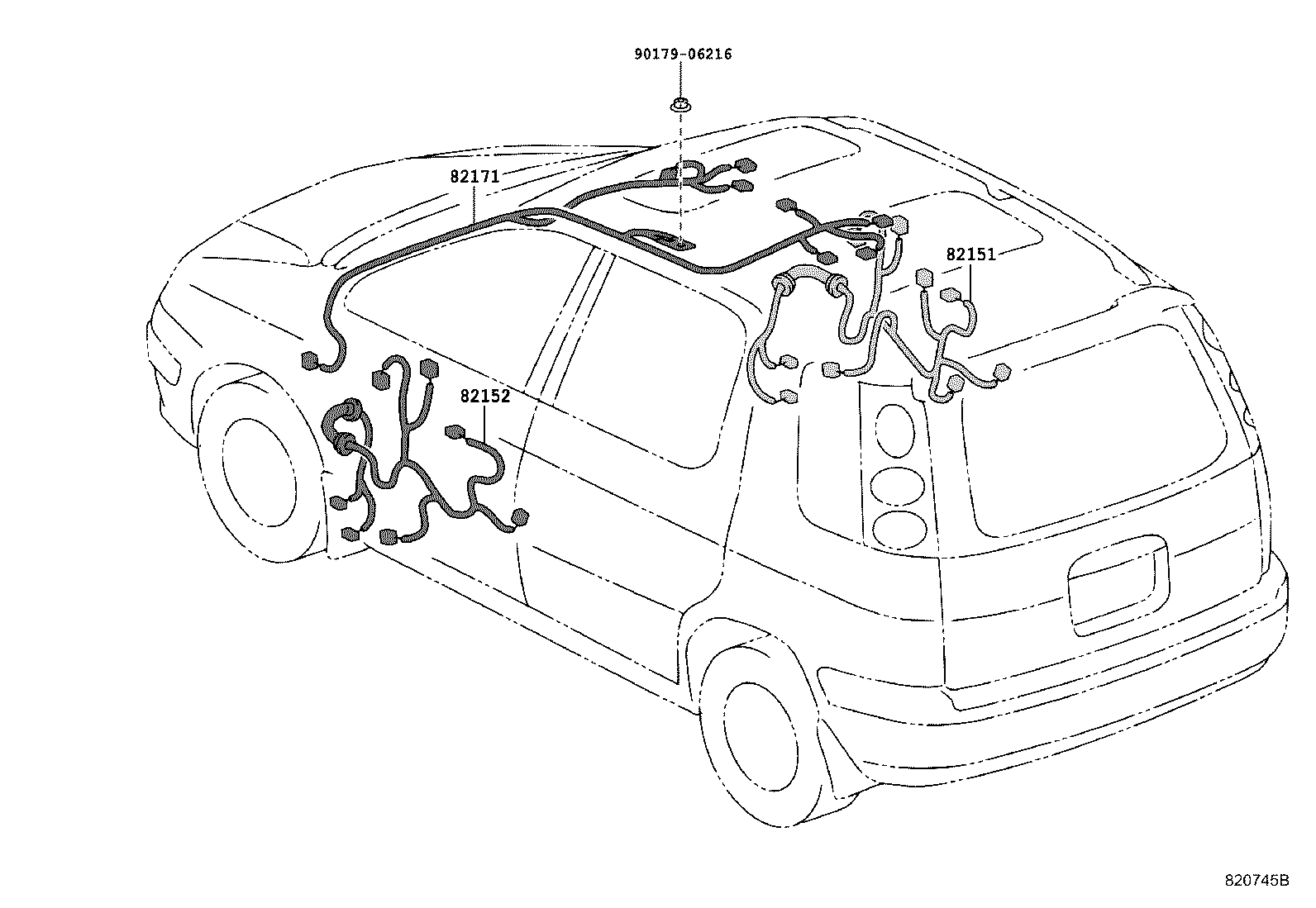

Figure 820742H 820742H 1997-05 → — Figure 820743H 820743H 1997-05 → — Figure 821933B 821933B 1997-05 → — Figure 820745B 820745B 1997-05 → — Figure 820746C 820746C 1997-05 → — Figure 820747A 820747A 1997-05 → — Figure 822051A 822051A 1997-05 → —

Part groups

PNCDescription
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82345 Diode
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82821 Retainer, Headlamp Harness
82821A Cover, Connector
82821E Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
