Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01
Meter
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

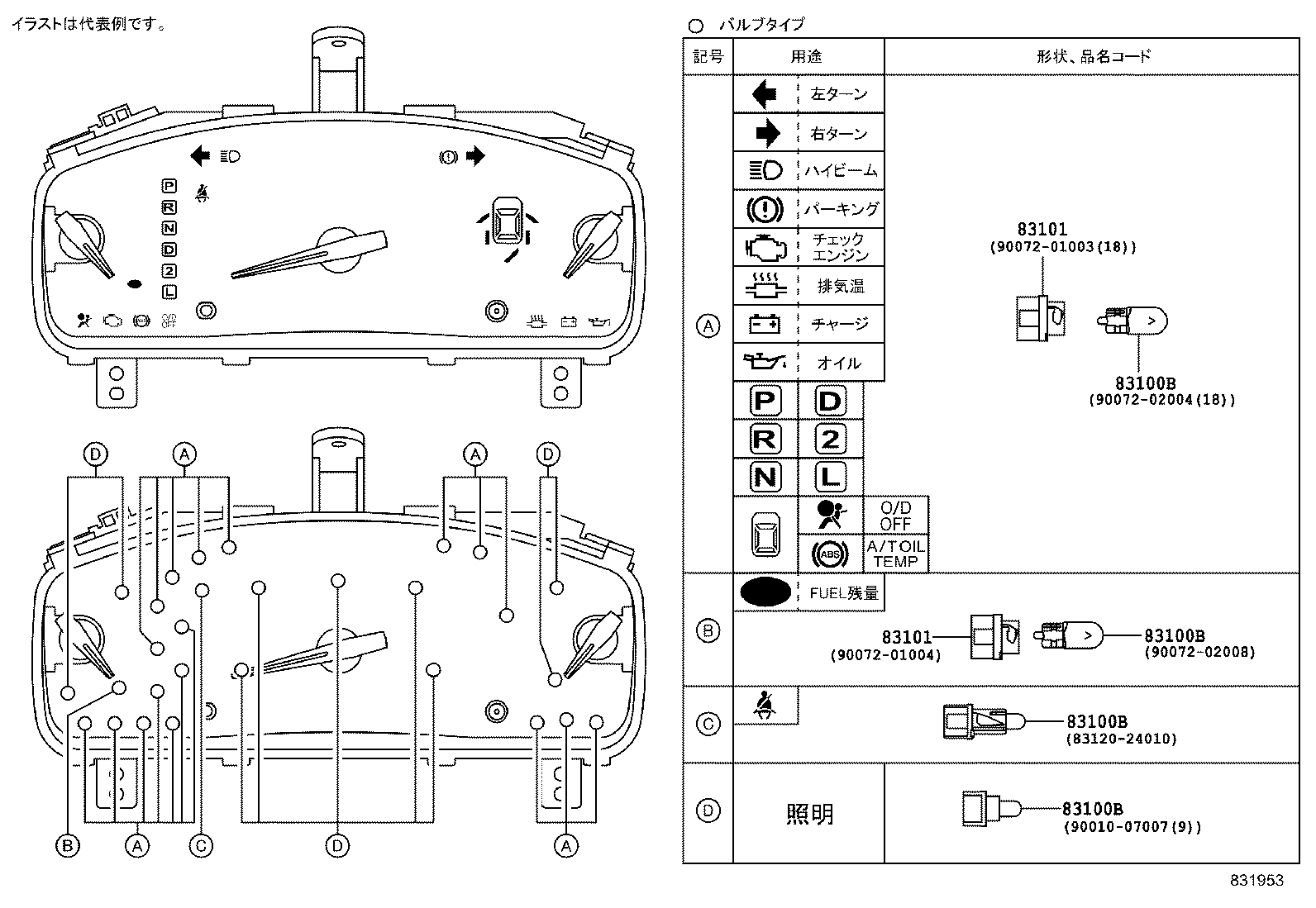

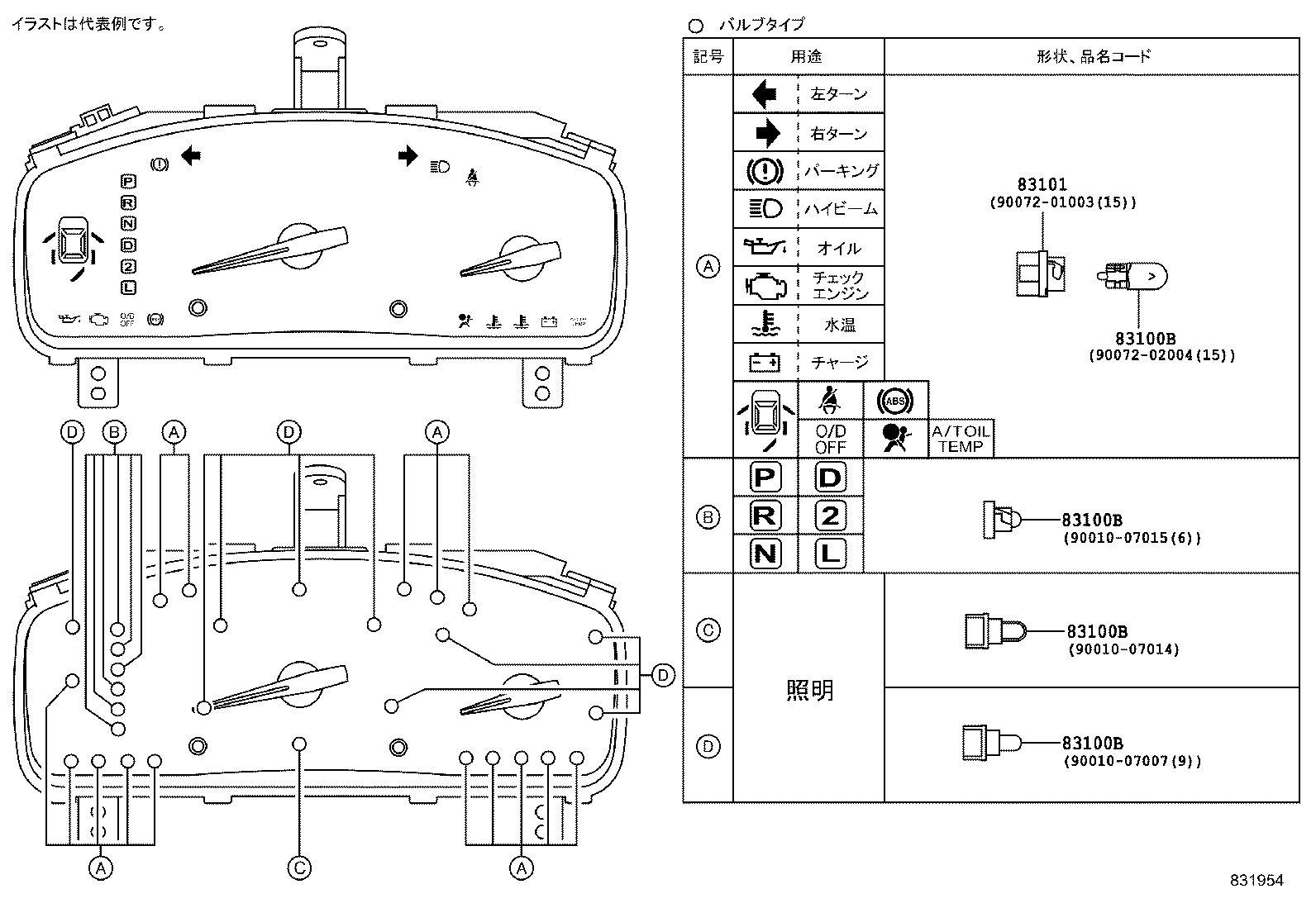

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

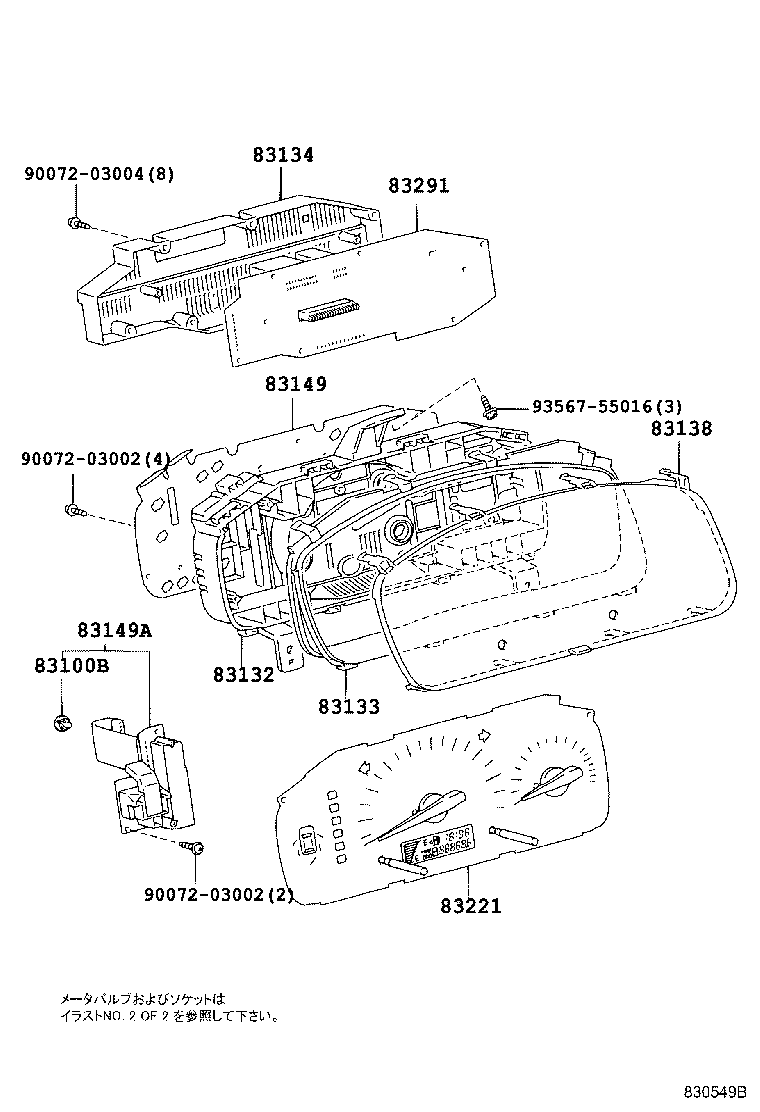

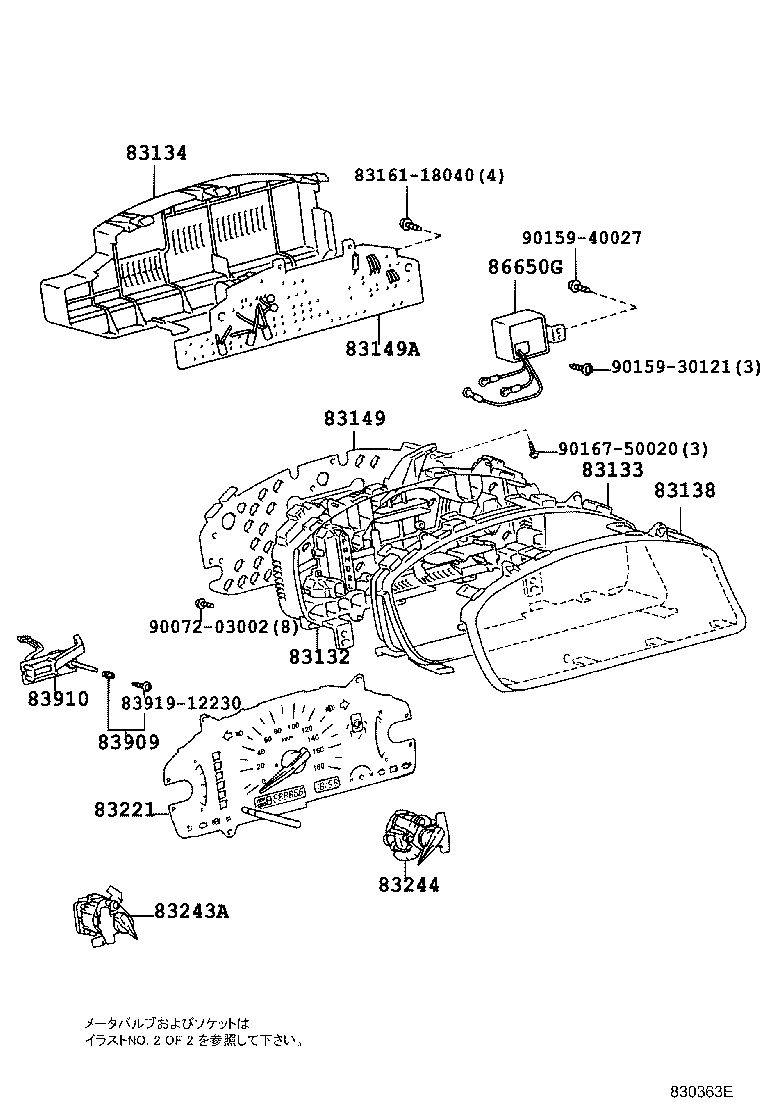

| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83149 | Plate, Meter Circuit |
| 83149A | Plate, Meter Circuit, NO.2 |
| 83221 | Meter, Speed |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83291 | Computer, Combination Meter |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
