Toyota Raum
1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan
Discontinued model
Data version 2004-01
Abs & Vsc
9 part groups · 1 illustrations

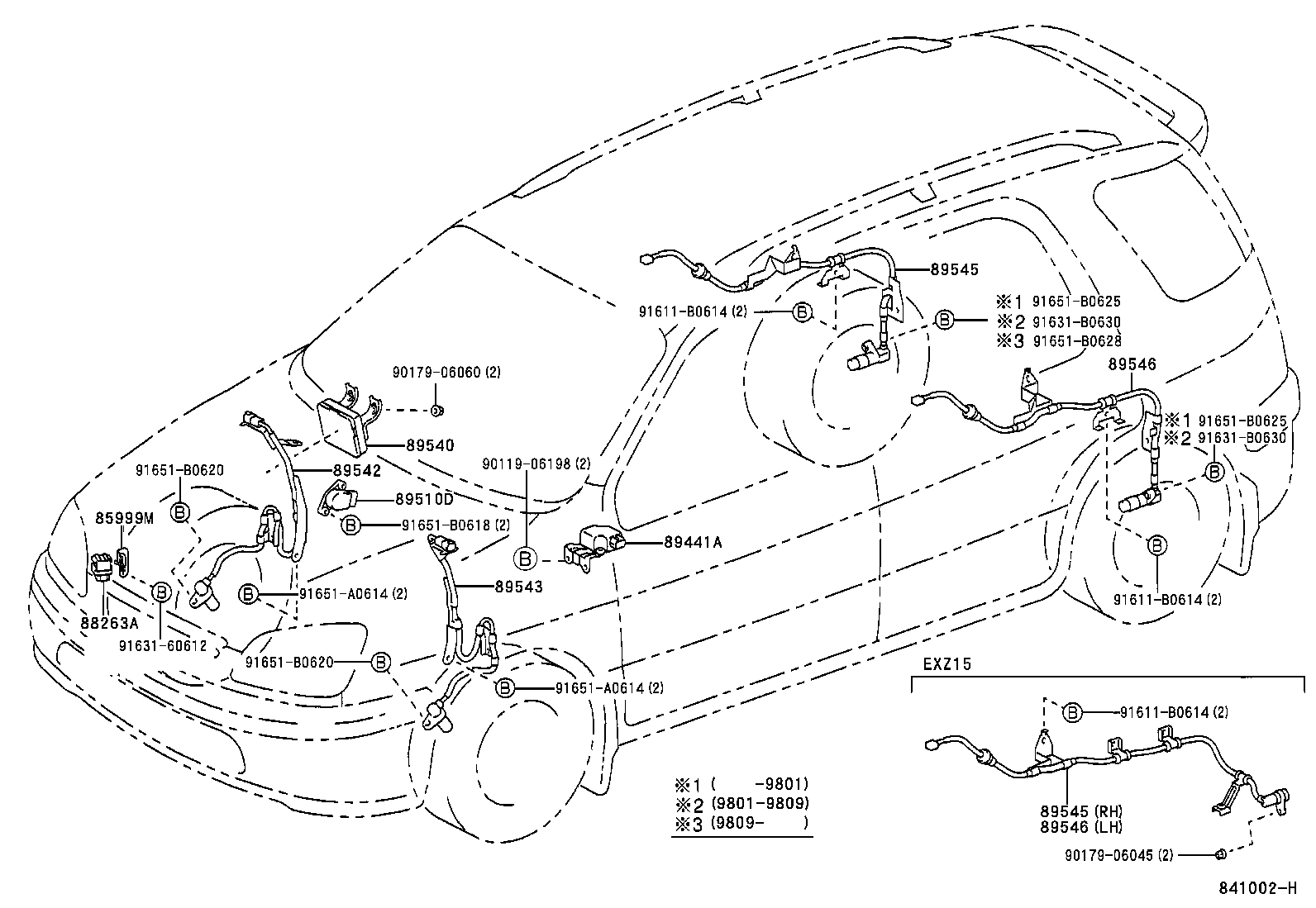

Illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 89441A | Sensor, Deceleration |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
