Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 1 illustrations

Illustrations

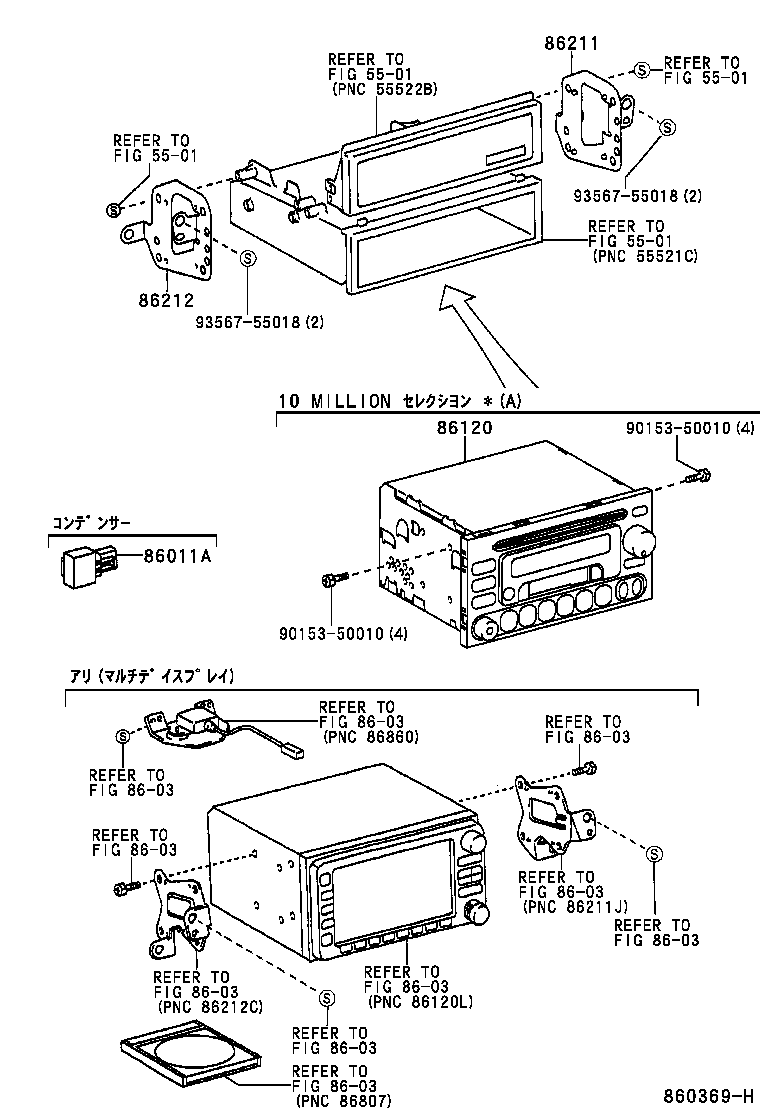

Figure 860369H

860369H 1997-05 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
