Toyota Raum

1997-05 → 2003-04 · chassis EXZ10,15 · catalogue 146110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

15 part groups · 2 illustrations

Illustrations

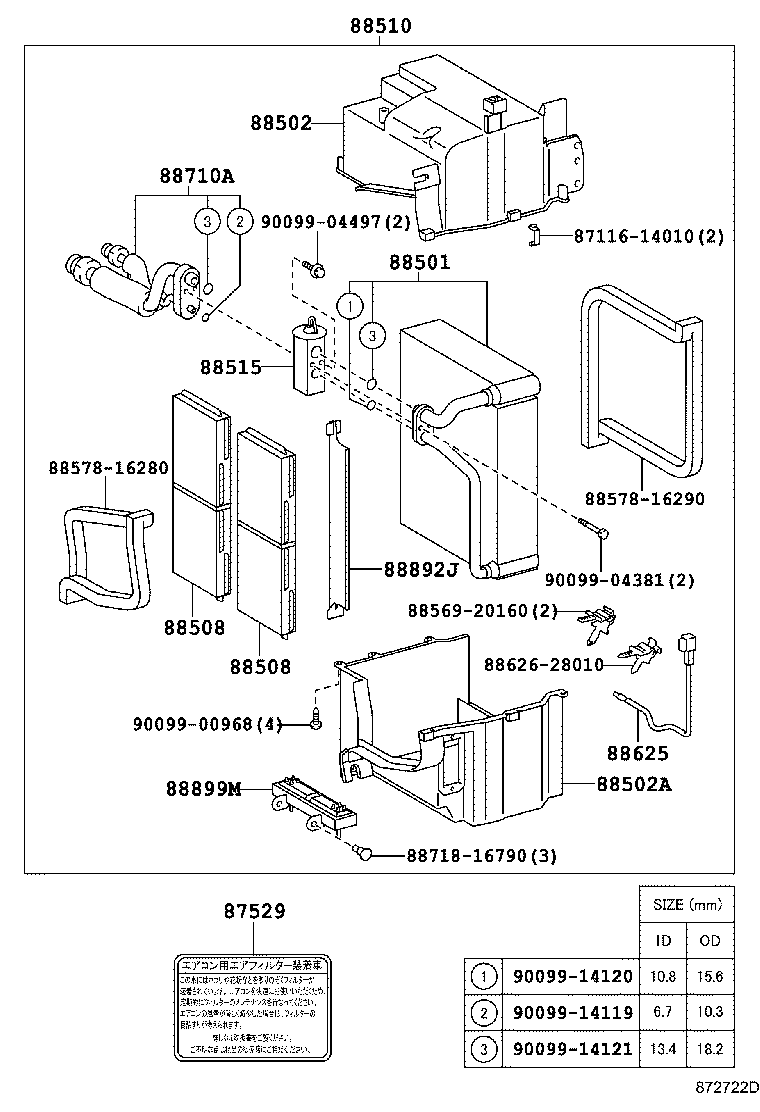

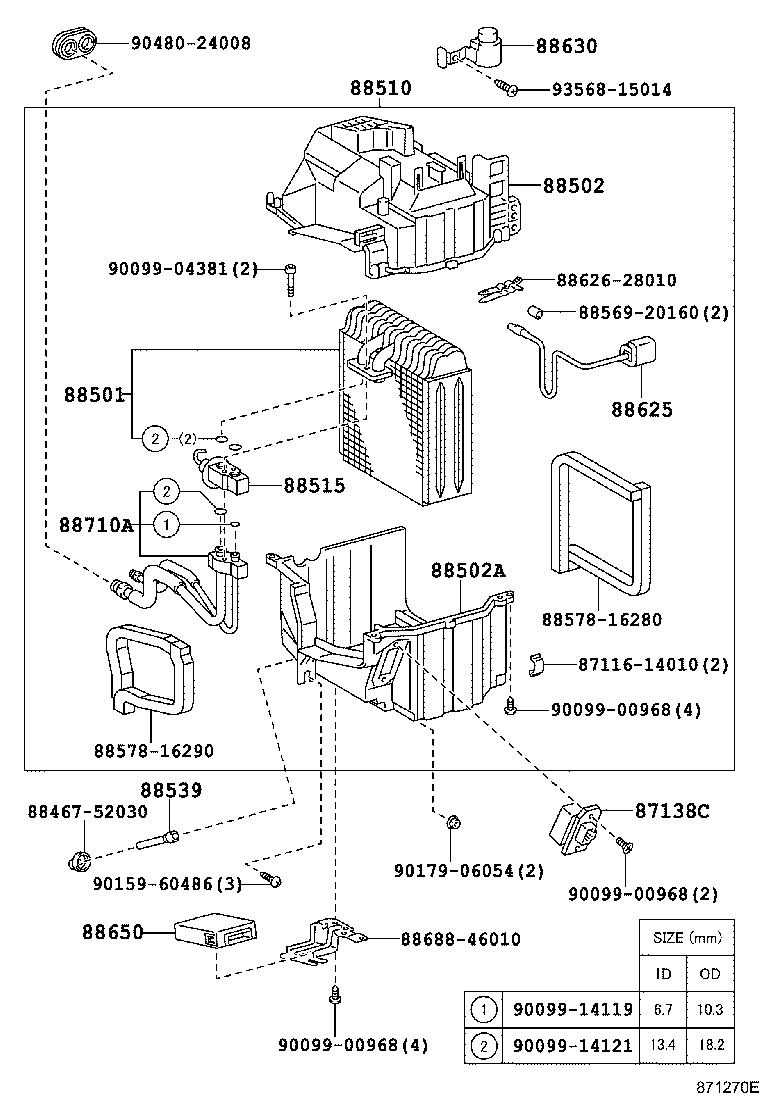

Figure 871270E 871270E 1997-05 → — Figure 872722D 872722D 1998-08 → —

Part groups

PNCDescription
87138C Resistor, Blower
87529 Plate, Air Filter Caution
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88892J Cover Sub-assy
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
