Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

10 part groups · 2 illustrations

Illustrations

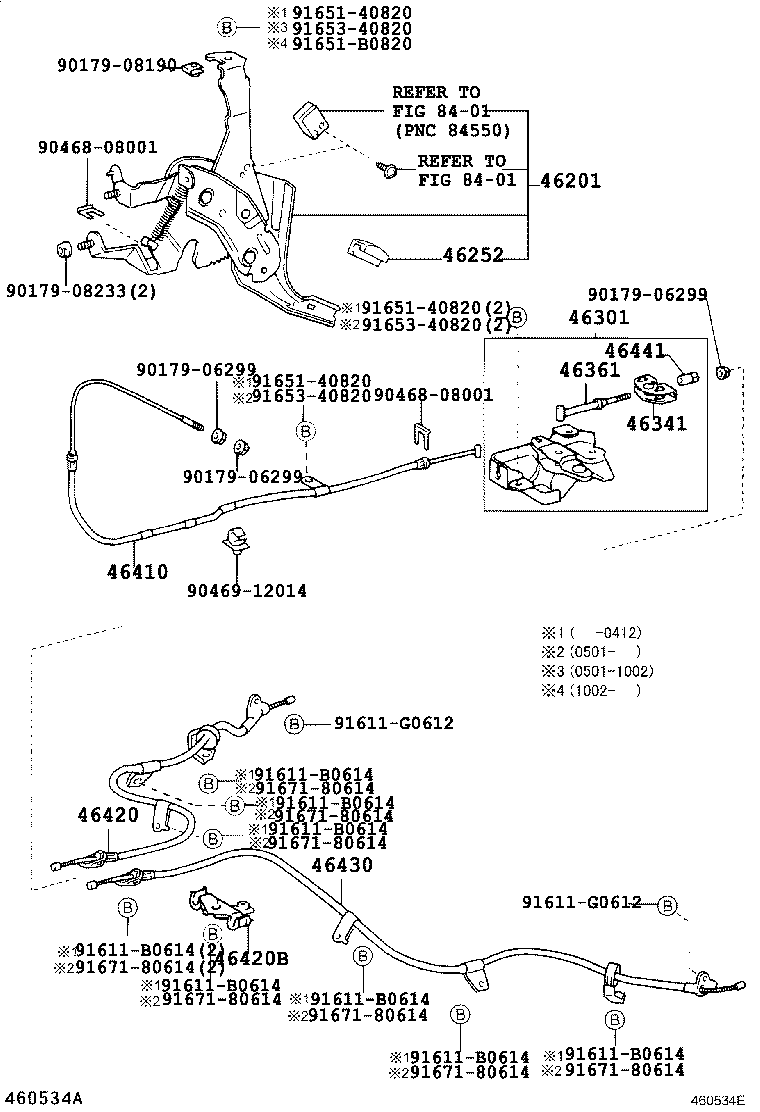

Figure 460533D 460533D 2003-04 → — Figure 460534E 460534E 2003-04 → —

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
