Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

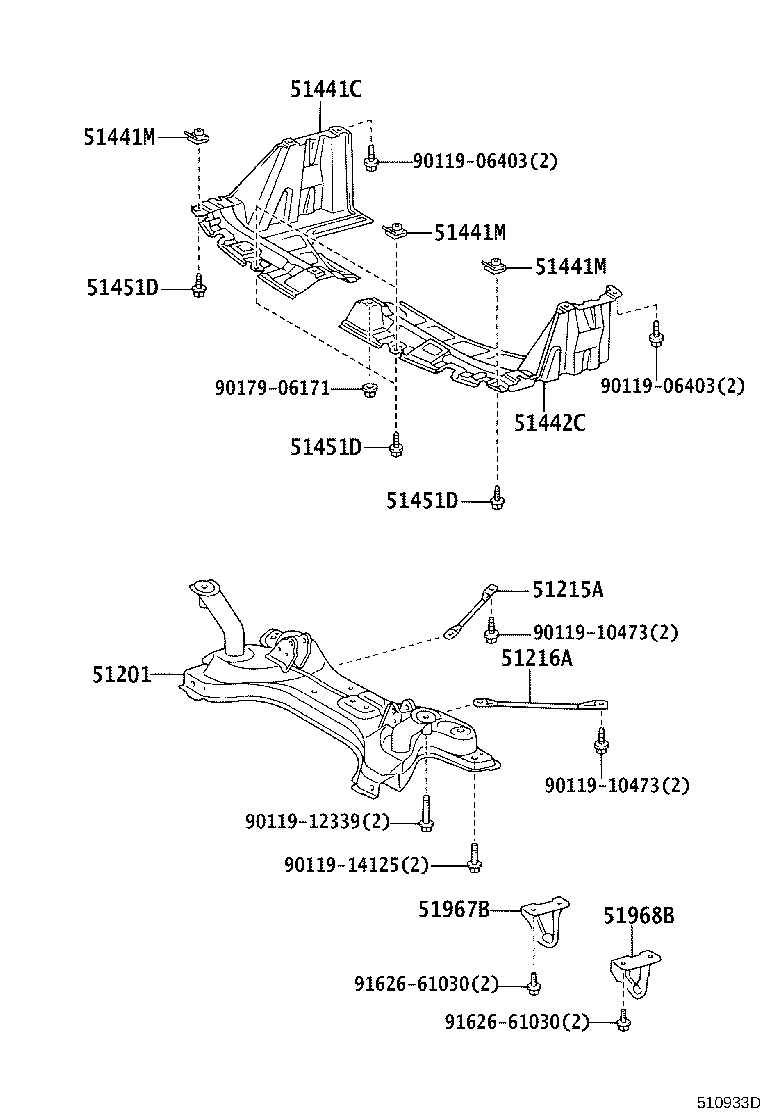

Figure 510932D 510932D 2003-04 → — Figure 510933D 510933D 2003-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51216A Reinforcement, Front Suspension Member, LH
51227 Weight, Front Suspension Member Damper
51441C Cover, Engine Under, RH
51441M Nut
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
