Toyota Raum
2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan
Supported model
Data version 2011-08
Mat & Carpet

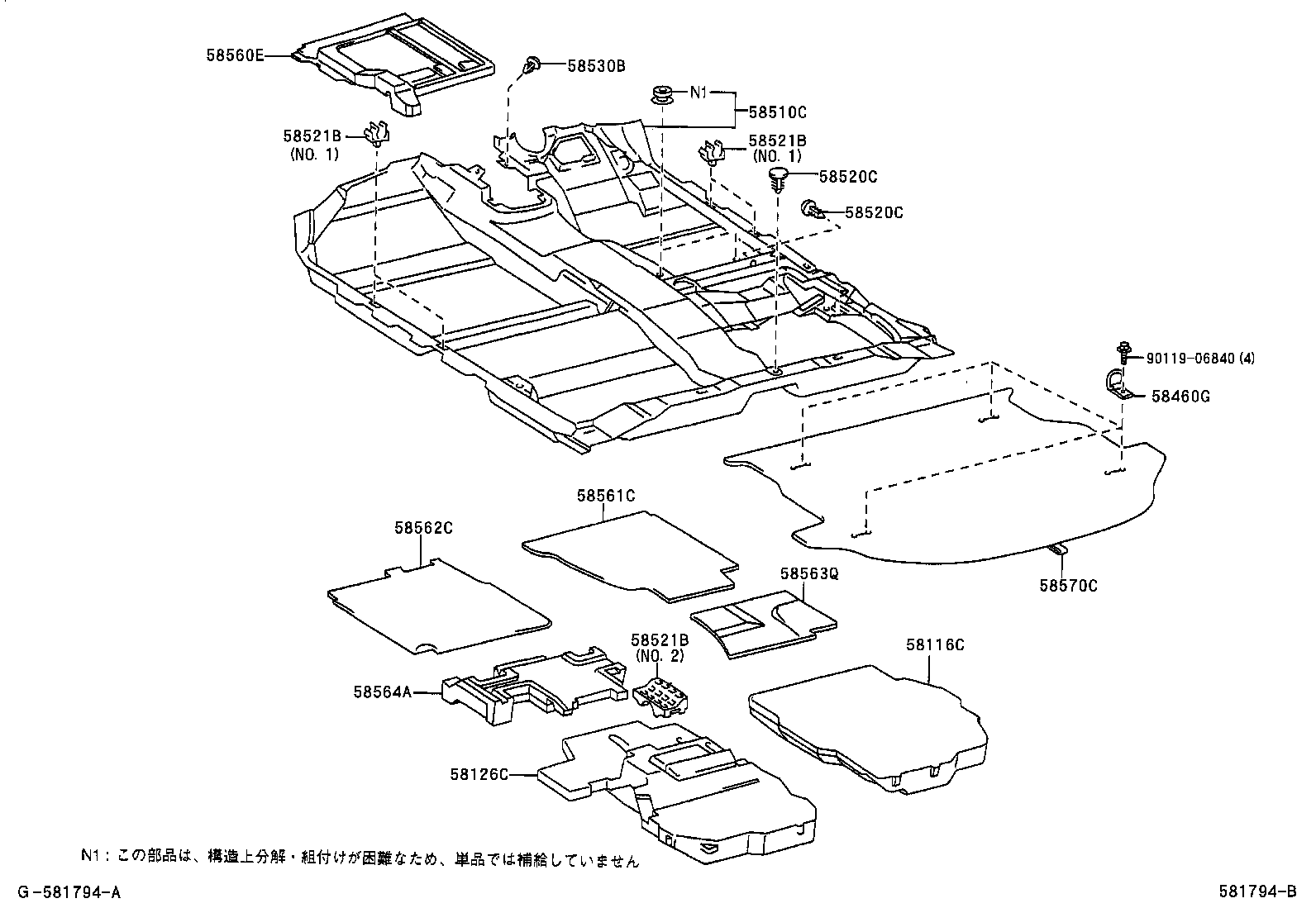

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58116C | Panel, Front Floor Rear Upper Side, RH |
| 58126C | Panel, Front Floor Rear Upper Side, LH |
| 58460G | Striker Assy, Luggage Hold Belt |
| 58510C | Carpet Assy, Front Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58560E | Carpet Assy, Seat Floor |
| 58561C | Silencer, Front Floor, NO.1 |
| 58562C | Silencer, Front Floor, NO.2 |
| 58563Q | Silencer, Front Floor, NO.3 |
| 58564A | Silencer, Front Floor, NO.4 |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
| 58570C | Carpet Assy, Rear Floor |
| 58579C | Clip, Rear Floor Carpet Set |
| 58591 | Cover, Floor Carpet |
| 58678C | Pad, Rear Floor Silencer, NO.1 Front RH |
| 58679B | Pad, Rear Floor Silencer, NO.1 Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
